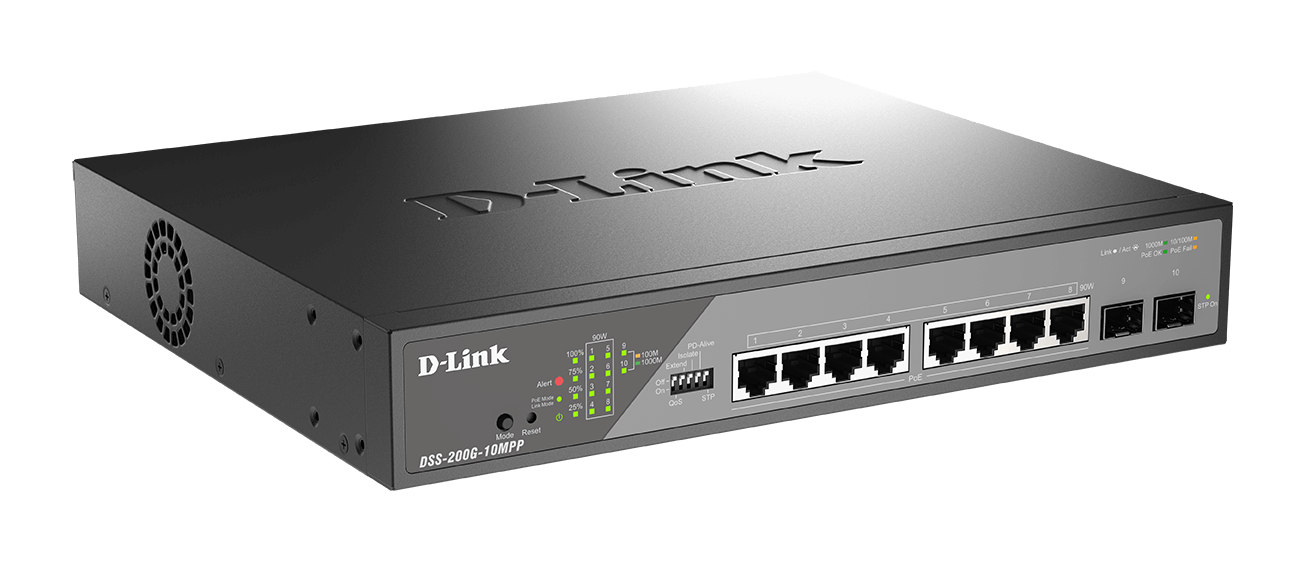

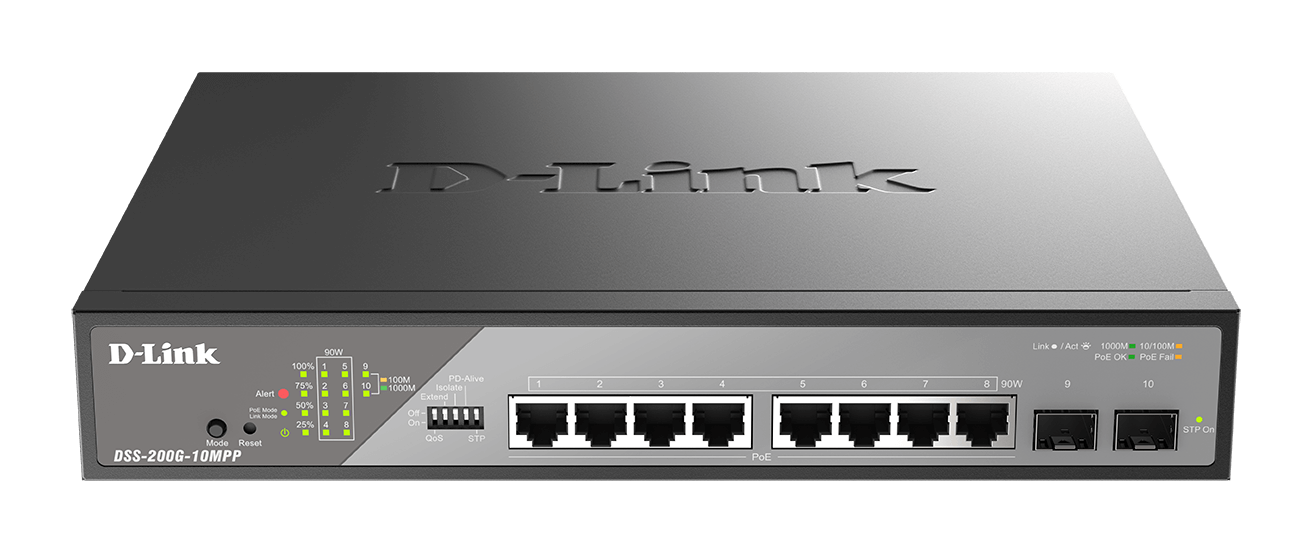

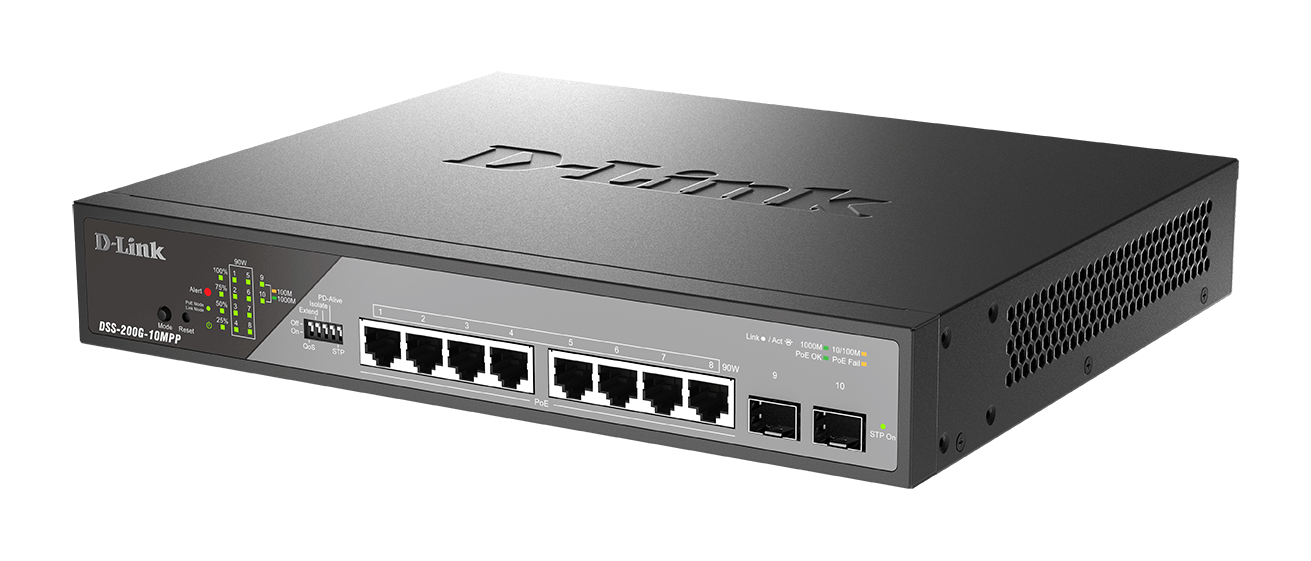

8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch

DSS-200G-10MPP

  • Product Status (Revision A1_v102): Live
  • High PoE budgets and support for IEEE 802.3bt 90 W PoE
  • 6 kV surge protection on all PoE ports

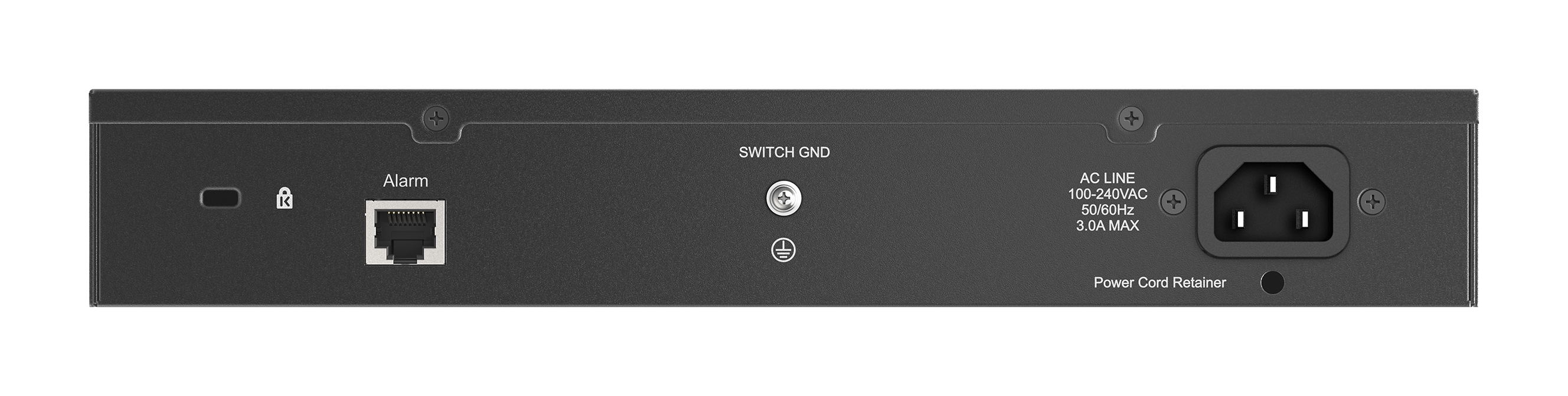

  • Alarm Port and four-stage PoE usage indicator light
  • Smart Fan design
  • Surveillance traffic optimization
  • Auto-detect ONVIF devices
  • Built-in SNMP MIB
  • Surveillance VLAN
  • Easy deployment with automatic configuration
  • NDAA Compliant

Download the datasheet.

Where to buy

Enjoy the Power of Next-Gen Surveillance Switch

Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

Read More

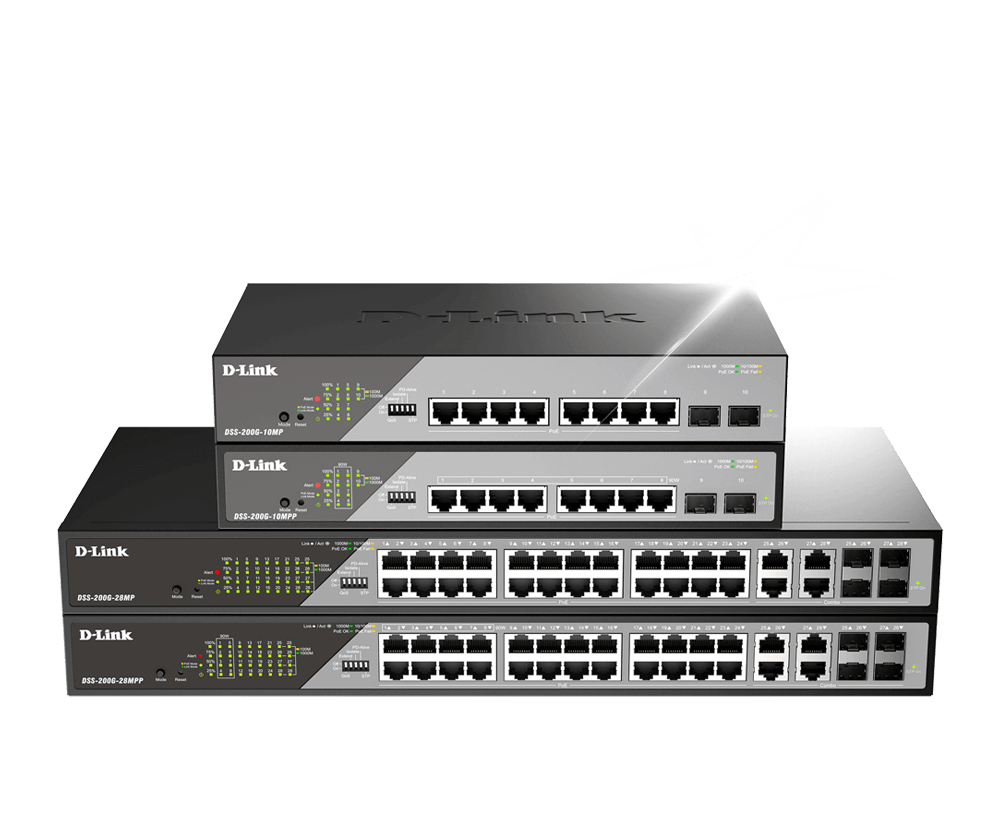

DSS-200G Series Comparison

DSS-200G-10MP
DSS-200G-10MP
DSS-200G-10MPP
DSS-200G-10MPP
DSS-200G-28MP
DSS-200G-28MP
DSS-200G-28MPP
DSS-200G-28MPP
Port Count
8*GE PoE + 2*GE SFP
8*GE PoE + 2*GE SFP
24*GE PoE + 4*GE Combo
24*GE PoE + 4*GE Combo
Dimension
11”
11”
19”
19”
Surge Protection
6KV Full port & Power Supply
6KV Full port & Power Supply
6KV Full port & Power Supply
6KV Full port & Power Supply
PoE power Budget
130 W
242 W
370 W
518 W
PoE Standard
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Smart Fan
Fanless
1
2
2
DIP switch
Working Modes x 4
Working Modes x 4
Working Modes x 4
Working Modes x 4
QoS (Port priority)
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24
Extend (Up to 250M)
Ports 1-4
Ports 1-4
Ports 1-8
Ports 1-8
Isolate
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24
PD-Alive
Ports 1-8
Ports 1-8
Ports 1-24
Ports 1-24

Acoustic
50.6 dB(A)
Dimensions
280 x 230 x 44 mm(11.02 x 9.05 x 1.73 in)
FAN
1
Humidity
Operating: 0% to 95% non-condensing
Storage: 0% to 95% non-condensing
Interfaces
2 x SFP 1000 Mbps
8 x 10/100/1000 Mbps PoE
LEDs Alarm
Yes
LEDs Link/Active/Speed (per port)
Yes
LEDs Power (per device)
Yes
MAC Address Table Size
8K entries
Maximum Forwarding Rate
14.88 Mpps
Maximum Heat Dissipation
87.00 BTU/hr
Maximum Power Consumption
15.4 W (PoE off)
267.5 W (PoE on)
MTBF
508,112 hours
Number of Ports
2 x SFP 1000 Mbps
8 x 10/100/1000 Mbps PoE
Packet Buffer Size
4.1Mbits
PoE Power Budget
242 W
90 W max. per PoE port for ports 1 to 8
Power Input
100 to 240 V AC
50 to 60 Hz internal power supply
Standby Power Consumption
10.7 W
Switching Capacity
20 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)
Storage: -40 to 70 °C (-40 to 158 °F)
Weight
2.05 kg (4.52 lbs)
