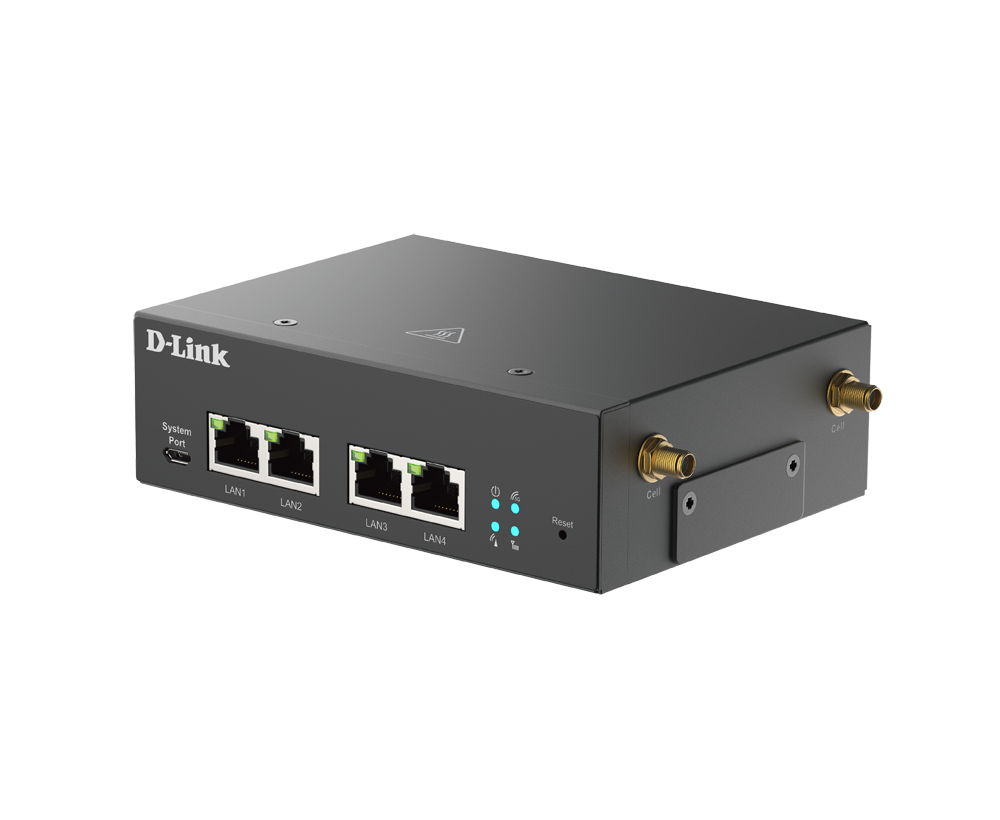

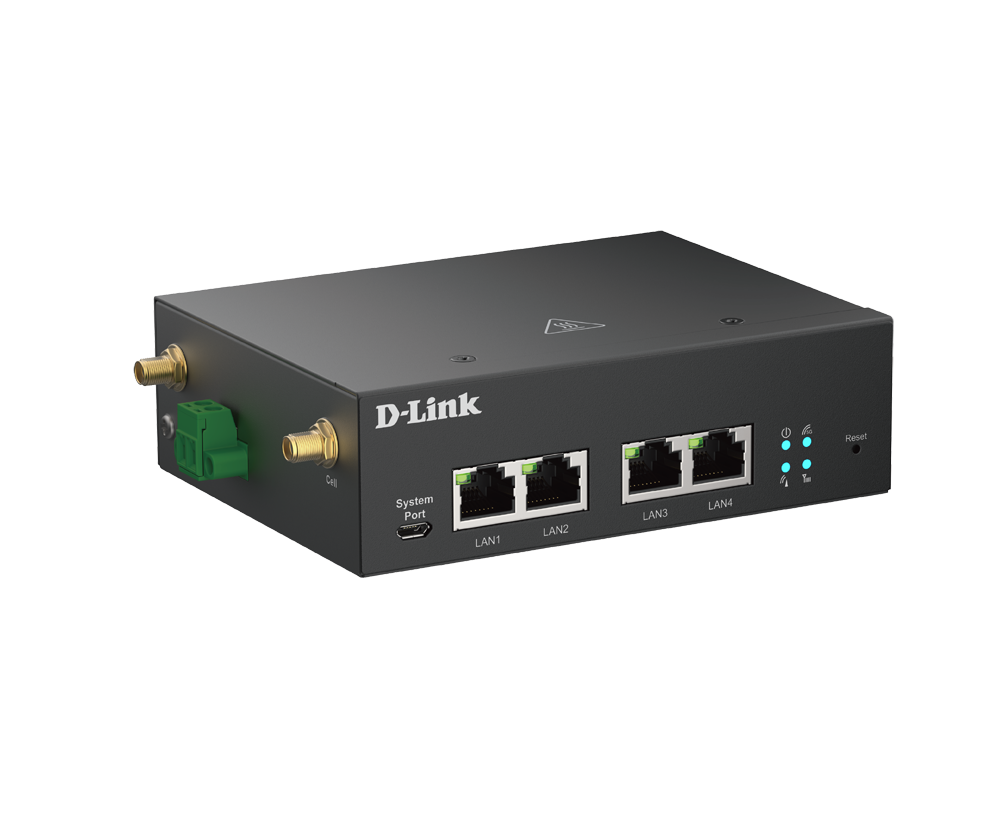

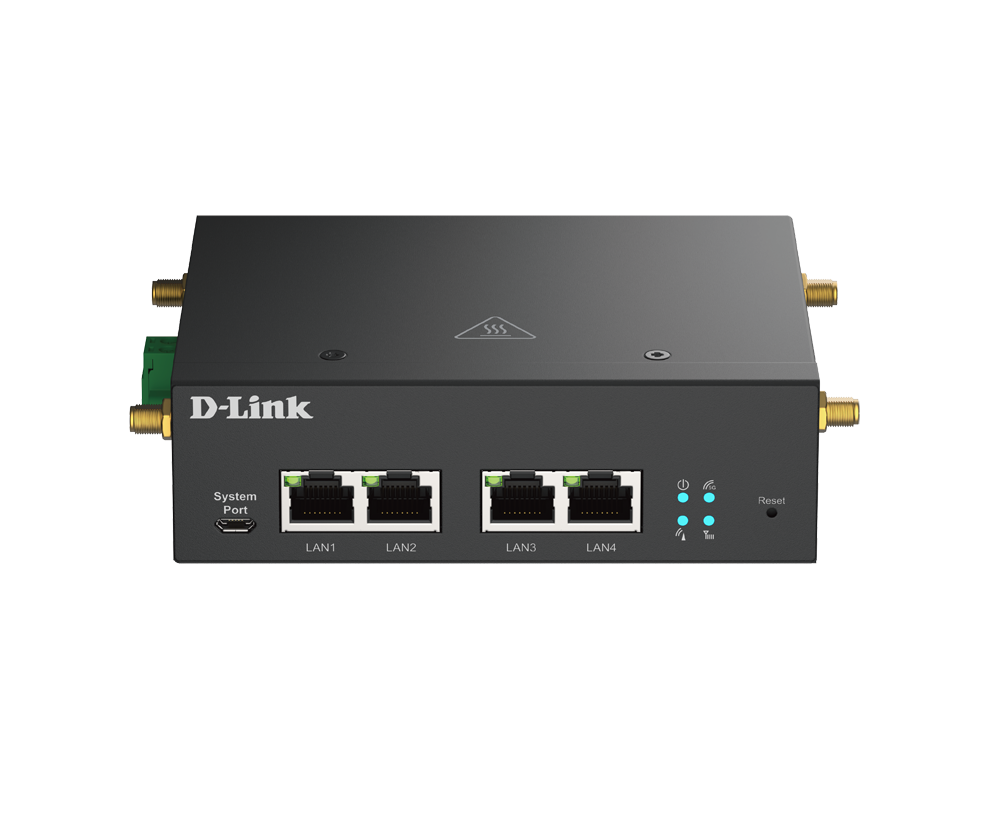

5G Multi-Connect Modem
DWM-314-G
- Product Status (Revision A1_v1.11): Live
- 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
- 4 x 10/100/1000 Ethernet LAN ports for high-speed connectivity
- 2 x SIM slots for plug-and-play dual-WAN connectivity with failover
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
Multi-Port GbE Connectivity
Four GbE LAN ports to connect multiple devices for mission-critical M2M applications.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Hassle-Free Installation
Simply insert the SIM cards (2 x Micro-SIM 3FF) and the DWM-314-G is ready to connect your M2M devices to the Internet via the high speed 5G cellular network with failover redundancy. The rugged compact design allows the DWM-314-G to be installed in virtually any location, even in extreme environments.
Remote Management
D-Link offers the latest advanced cloud computing platform to enable flexible, secure and low latency networks for mission-critical operations.
With fast, flexible deployment and having full control and visibility over your network, the D-Link D-ECS centralized management platform offers extensive tools to enable device management, traffic analytics, security, cost-management and much more.

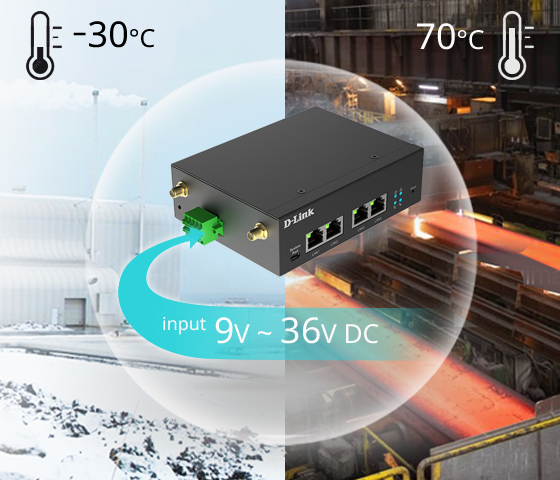

Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-G is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-G to be mounted virtually anywhere.
Related Products
Purpose-built to ensure uninterrupted M2M connectivity, even in harsh environments
The DWM-314-G’s 5G and Ethernet interfaces allow wired connectivity to be added to virtually any device. 5G and Ethernet provide driverless, instant access for any Ethernet-enabled device without the need for pre-configuration or special software, making the DWM-314-G a true plug-and-play solution, suitable for mass deployment or small-scale use. If unique settings are required, the easy-to-use web interface can be configured through any web browser.

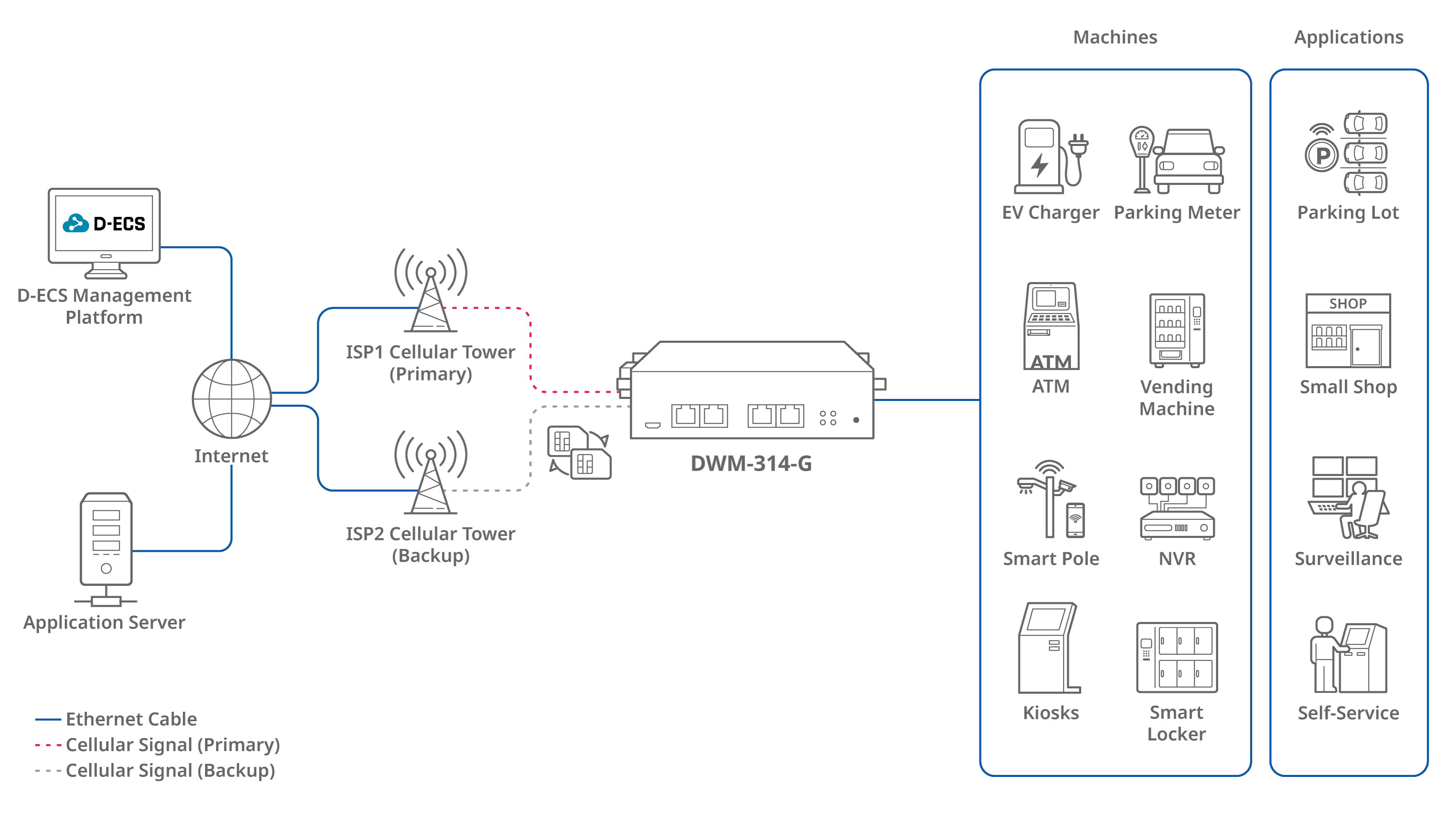

Versatile Applications
Designed to meet the needs of high-bandwidth, time-sensitive, and mission-critical M2M applications, the cost-effective DWM-314-G offers four GbE LAN ports for blazing-fast M2M connectivity, suitable for high-speed services such as smart locker, EV charger, POS, parking lot, ATM, vending machines, kiosks, digital signage.
Specification
|
4G/5G Antenna Connectors
|
4 x SMA antennas |
|---|---|
|
Attack Prevention
|
IPS |
|
Cellular Module
|
5G NR |
|
Data Usage
|
Yes |
|
Ethernet Interface
|
4 x GE |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server |
|
Local Management
|
Web UI/SSH |
|
MAC/URL Filter
|
Yes |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
2-pin TB for DC 9V-36V |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 3FF Micro-SIM |
|
SMS Notification
|
Yes |
|
Static Route
|
Yes |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WireGuard
|
Yes |
|
WAN
|
Cellular |
SKU & Certifications
5G NR Bands
| EU SKU 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 4G LTE: FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71 TDD: B38/B40/B41/B42/B43 |
|---|---|
Certification
|
CE/UKCA
|
