AX1500 Mesh Router
M15
- Product Status (Revision A1_v130): Live
Experience self-optimizing Wi-Fi, powered by AI.
- Dual-band 2x2 Wi-Fi 6 delivers blazing fast connectivity with increased range and reliability
- Coverage up to 210 sqm/ 2300 sq. ft. and mesh capability with other Eagle Pro AI devices
- Up to 1201Mbps (5GHz) and 300Mbps (2.4GHz) speeds
- 1 x 10/100/1000 Gigabit Ethernet WAN port
- 1 x 10/100/1000 Gigabit Ethernet LAN ports
- Supports WPA, WPA2, and the latest WPA3 Wi-fi Security
- Clean Network Initiative compliant for security and privacy
- Voice control works with Amazon Alexa or Google Assistant
- Eagle Pro AI features including
- AI Wi-Fi Optimizer
- AI Mesh Optimizer
- AI Traffic Optimizer
- AI Parental Control
- AI Assistant
Where to buy
EAGLE PRO AI
AX1500 Mesh Router
With advanced AI features for continuous network monitoring, the M15 keeps your Wi-Fi performing at its best. Managing your network has never been easier with the AI Assistant on the free mobile app.
All New D-Link EAGLE PRO AI AX1500 Mesh Router
Introducing the revolutionary D-Link EAGLE PRO AI series with AI-enabled capabilities to optimize your Wi-Fi, and the AI Assistant to give you total control at your fingertips.
Wi-Fi 6 Performance
MU-MIMO & OFDMA
Beamforming
WPA3
TWT Technology
Health Mode
Guest Connect
Why Do You Need Wi-Fi 6?
Wall obstruction and interference from home appliances can weaken your Wi-Fi connectivity. Having many devices connected to your network can make the problem worse. Wi-Fi 6 technology was designed to help overcome these issues and will soon become a standard feature in all new end devices. Whether you’re looking for an upgrade or replacement, Wi-Fi 6 is the best choice.
Why Choose Wi-Fi 6
Increase in throughput
Reduction in Latency
More Coverage Area
More Connected Devices
Backwards Compatible
Connect Up to 128 Devices
*Number of connected devices and coverage area are D-link test results. Performance may vary under different environments.
More Devices, Faster W-Fi, Greater Coverage
Wi-Fi 6 features bi-directional MU-MIMO technology to handle more simultaneous users at faster data rates, and beamforming capability to greatly extend Wi-Fi coverage area.
More Users at Once, Lower Latency
Wi-Fi 6 offers OFDMA technology to serve more device connections at once to significantly reduce network latency.
Reliable Connections for Greater Coverage
Highest Protection Level for Peace of Mind
User privacy is of utmost importance when connected to the Internet. WPA3 technology is aligned with CNSA standards and features 192-bit encryption to ensure your connections are safe and protected from unauthorized access.
Save Power on Mobile Devices
Target Wake Time (TWT) technology schedules connected devices to be awake or asleep during designated time periods. This not only saves device battery life, but also reduces network congestion.
Greater Protection with Main and Guest Wi-Fi Control
- Turn on guest Wi-Fi to prevent visitors from accessing you local network, granting access only to the Internet
- Set data speeds for guess Wi-Fi users to preserve Wi-Fi quality
- Log-in credentials and QR codes for guest Wi-Fi access
No More Wi-Fi Congestion
Smart Connect technology automatically directs your device to the optimum wireless band. No more frustrating drop outs, lag or interruptions in your wireless connections.
Always the Best Connection Possible

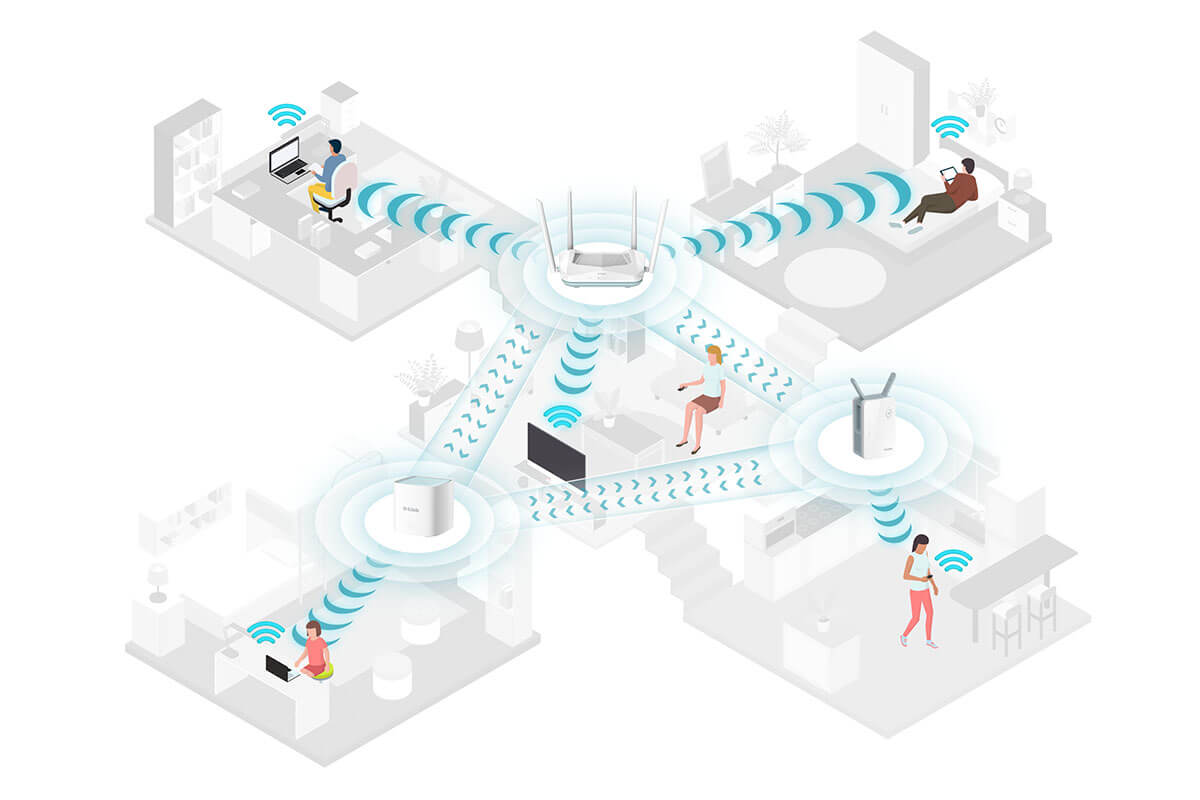

Intelligent One-Touch Setup for Seamless Connections
- Auto Mesh setup and detects the best channels within the network
- Simple access management with one SSID for both Wi-Fi bands (2.4 and 5 GHz)
- Network self-healing when a weak connection is detected
Uninterrupted Video, Voice, and Gaming Enjoyment
When high network traffic is detected, AI-based QoS technology prioritizes your important services such as 4K/8K video streaming to keep them running lag-free.
Services such as email or file transfers will be given lower priority to ensure network quality.
Keep Playtime Safe and Healthy
AI parental control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.
Health Mode
- Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
- Schedule Wi-Fi access hours to maintain a balanced family lifestyle
- Turn off Wi-Fi entirely to conserve energy
For Everything Wi-Fi, there’s D-Link EAGLE PRO AI
Managing your Wi-Fi has never been easier.
Expanding Your Wi-Fi is a Snap
Simply add additional M15 devices to build your own smart mesh network, giving you high-speed Internet coverage throughout your home, no matter the size.
Voice control works with Alexa or Google Assistant
Connect an Amazon Alexa or Google Assistant-enabled device to control with your voice.
*Google Assistant is not available in certain languages and countries.
Designed & Crafted in Taiwan
Trusted / Reliable / Quality Assured
Building Networks for People
For over 35 years, D-Link has been committed to building high-quality, user-friendly, and environmentally sustainable networking solutions to connect products and people around the globe.
Specification
|
Antenna
|
2 x 2.4 G WLAN Internal Antenna 2 x 5 G WLAN Internal Antenna |
|---|---|
|
Certifications
|
CE FCC |
|
Device Management
|
EAGLE PRO AI app (iOS and Android) Web UI |
|
Dimensions
|
92 x 92 x 93 mm |
|
Hardware version
|
A1 |
|
Interfaces
|
1 x Gigabit Ethernet LAN port 1 x Gigabit Ethernet WAN port 1 x power connector 1 x WPS button DS-Lite Dynamic IP Static IP Support 802.1p & 802.1q |
|
L2TP
|
Yes |
|
LED Status Indicators
|
Power/ Status |
|
Maximum Operating Voltage
|
12V |
|
Maximum Power Consumption
|
12 W |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Power Input
|
12V/1A |
|
PPPoE
|
Yes |
|
PPTP
|
Yes |
|
Security Protocol
|
WPA/WPA2-Personal WPA2/WPA3-Personal (WPS not supported) WPA2-Personal WPA3 Only (WPS Not supported) |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Storage Temperature
|
-20 to 65 °C (-4 to 149 °F) |
|
Weight
|
200 g |
|
Wireless IEEE Standard
|
802.11ax/ac/n/g/b/k/v/a/h 802.3u/ab |
|
Wi-Fi Data Rate
|
2.4 GHz Up to 300 Mbps 5 GHz Up to 1201 Mbps |
