M2M (Machine-to-Machine) device in ATM management is a crucial component that facilitates the communication, monitoring, and management of ATMs remotely without human intervention. These devices are responsible for collecting data from various sensors and components inside the ATM, transmitting that data to a central system, and executing predefined actions based on the information they gather. Here's how M2M devices work in the context of ATM management:

1. M2M Device Components in ATM Management

M2M devices are made up of several key components that enable them to interact with ATMs and communicate effectively with central management systems. These components include:

a. Sensors:

• Cash Sensors: Measure the amount of cash available in the ATM. These sensors help track cash levels and notify the central system when cash is low.
• Hardware Monitoring Sensors: These sensors track the health of critical ATM components such as card readers, cash dispensers, receipt printers, and screens. They can detect issues like hardware malfunctions or jamming.
• Environmental Sensors: Monitor environmental factors like temperature, humidity, and power consumption. For example, if the ATM is overheating, a sensor will alert the system.
• Security Sensors: Motion detectors, tamper detection, and door sensors ensure that any unauthorized access or tampering with the ATM is detected and reported.

b. Communication Module:

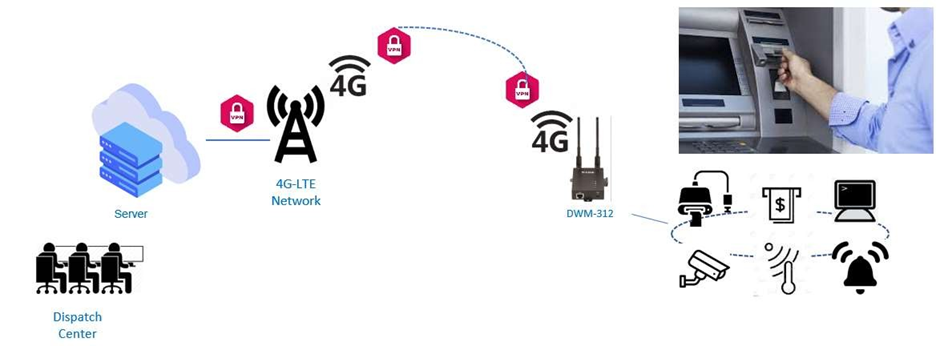

• The communication module allows the M2M device to transmit data from the ATM to the central server or cloud-based management system. This can happen via cellular networks (2G, 3G, 4G, or 5G), Wi-Fi, Ethernet.
• The module supports two-way communication, allowing the ATM to not only send data but also receive commands and updates from the central system.

c. Microcontroller / Processor:

• The M2M device includes a microcontroller or processor that interprets the data from the sensors, processes it, and prepares it for transmission. It also executes actions based on received commands (e.g., rebooting an ATM or adjusting the settings).

d. Power Supply:

• M2M devices need a stable power supply to function. In many cases, they are connected to the ATM's power system, but they may also have backup batteries to ensure operation during power outages.

2. How M2M Devices Work for ATM Management

a. Data Collection & Monitoring

M2M devices continuously monitor and collect data from the ATM's internal components and sensors:

• Cash Monitoring: The ATM’s cash dispensing module sends real-time data about cash levels to the M2M device. If the cash is low, the device sends an alert to the ATM service provider, prompting a cash replenishment visit.
• Component Health: The device checks the status of vital components like the card reader, cash dispenser, and receipt printer. If any of these component’s malfunction, the M2M device notifies the maintenance team.
• Environmental Data: Sensors inside the ATM monitor temperature, humidity, and voltage fluctuations. If the system detects abnormal environmental conditions (e.g., overheating or high humidity), it can trigger an alert for preventive action.

b. Real-Time Communication and Alerts

Once the data is collected, it is transmitted to the central system via the M2M communication module. Depending on the nature of the data, several actions may occur:

• Low Cash Alerts: When cash levels drop below a threshold, the M2M device sends a notification to the ATM service provider. This ensures timely cash replenishment.
• Maintenance Requests: If hardware or software issues are detected (e.g., a jammed bill dispenser, faulty card reader), the device sends an alert to the central management system, which can automatically generate a maintenance ticket and dispatch a technician.
• Security Alerts: The device communicates any suspicious activity, such as unauthorized access attempts or tampering with the machine, triggering alarms for security personnel.

c. Software/Firmware Updates

M2M devices allow for remote software and firmware updates to ATMs. This is especially useful for:

• Security Patches: M2M devices can automatically download and apply critical security patches to the ATM's software to protect against cyber threats.
• Feature Updates: M2M technology makes it possible to update or add new features to the ATM without requiring a technician to be physically present.

d. Remote Troubleshooting and Diagnostics

In cases of minor hardware issues or software glitches, M2M devices enable remote troubleshooting:

• Rebooting/Resetting: M2M systems can remotely reboot an ATM, restart its software, or reset its components to clear minor faults.
• Diagnostic Commands: If a fault is detected, the M2M device can run diagnostic tests on the ATM's components to identify the root cause of the problem, allowing technicians to come prepared with the necessary tools or parts for repairs.

e. Cash Replenishment Management

M2M devices help optimize cash management:

• Cash Level Monitoring: Sensors detect cash levels in the ATM’s dispenser. If the levels are too low, the M2M device sends a request for cash replenishment./span>
• Cash Usage Analytics: The M2M device can send historical transaction data (e.g., peak withdrawal times, frequent cash usage) to the central system. This allows for optimized cash replenishment schedules and more efficient route planning for service personnel.

f. Energy Management

M2M devices help ATMs consume energy more efficiently:

• Power Consumption Monitoring: The M2M device can track how much energy the ATM is using and detect any irregularities in its power consumption./span>
• Energy Optimization: Based on usage patterns, M2M systems can reduce energy consumption by adjusting the brightness of the ATM’s screen during non-peak hours or powering down unnecessary components when the machine is idle.

3. Key Benefits of M2M Devices in ATM Management

1. Real-Time Monitoring:  Constant tracking of ATM components ensures that any malfunction or failure is quickly detected and addressed.
2. Reduced Downtime:  Remote monitoring, predictive maintenance, and rapid fault detection minimize ATM downtime and improve uptime.
3. Efficient Cash Management:  M2M devices provide real-time data on cash levels, helping reduce the likelihood of ATMs running out of cash and optimizing replenishment routes.
4. Remote Diagnostics and Troubleshooting:  Minor issues can often be resolved remotely, reducing the need for service personnel to visit the site, which saves both time and money.
5. Security:  M2M devices enhance ATM security by enabling remote monitoring of ATM activity and security systems (e.g., tamper detection and surveillance integration).
6. Cost Efficiency:  By automating processes like monitoring, diagnostics, and cash replenishment, M2M devices help reduce operational costs, including travel and maintenance expenses.
7. Improved Customer Experience:  By ensuring ATMs are always functional, securely operating, and regularly stocked with cash, M2M devices improve the overall customer experience.
8. Compliance:  M2M systems help ensure compliance with security and operational standards, generating audit trails for transactions, maintenance, and security events.

Why D-Link for ATM Management?

D-Link is renowned for its reliable networking and communication solutions. By leveraging D-Link’s M2M technology, banks can create a robust infrastructure that enhances the management of ATMs, enabling real-time data exchange, improved security, and operational efficiency.

Conclusion

In an increasingly digital world, effective ATM management is essential for maintaining a competitive edge in the banking sector. D-Link’s M2M solutions provide a powerful framework for enhancing the efficiency, security, and reliability of ATM networks. By adopting these innovative technologies, banks can not only improve their operational capabilities but also deliver a superior experience to their customers.

Investing in D-Link’s M2M solutions for ATM management is a strategic move that positions financial institutions for success in the evolving landscape of banking. Embrace the future of ATM management with D-Link and watch your operational performance soar.
