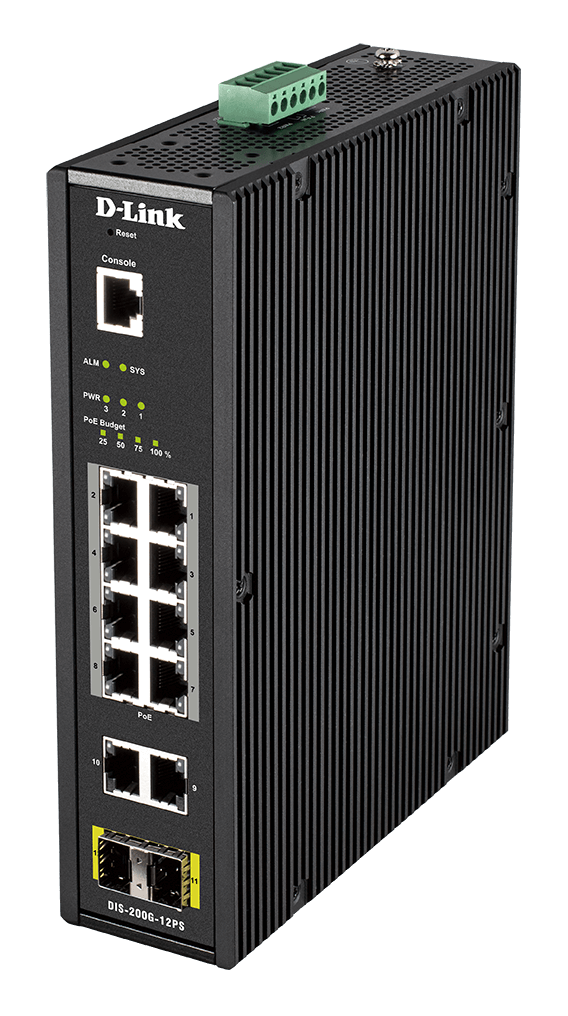

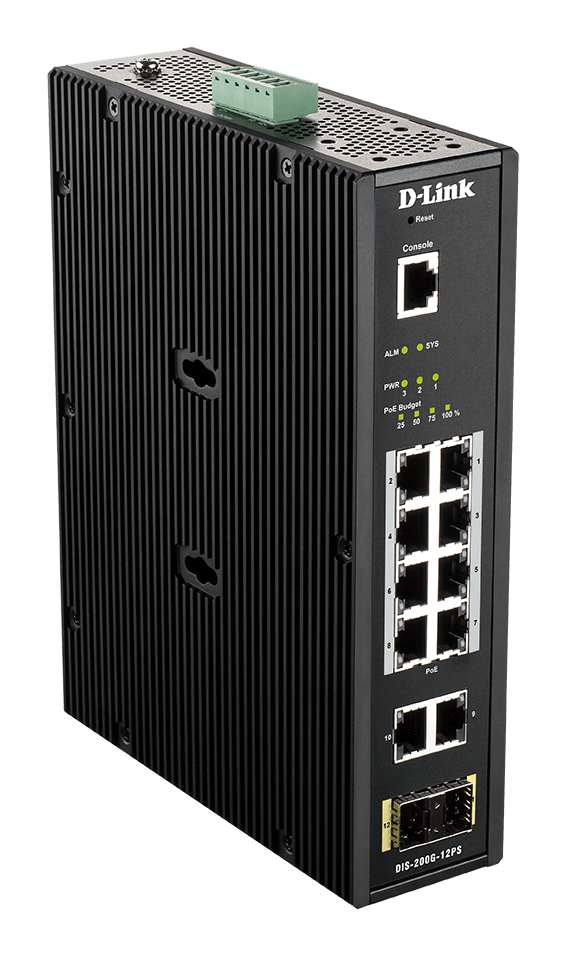

Industrial Gigabit Smart Managed PoE Switch

DIS-200G-12PS

  • Product Status: Live
  • 8 x 10/100/1000Base-T PoE+ ports, 2x 10/100/1000Base-T ports, 2 x SFP ports
  • RJ-45 Console port
  • Easy-to-control management interfaces and security
  • Withstands severe temperatures
  • Compliant with vibration, shock, free-fall testing

Download the datasheet.

Where to buy

Features

Smart Management

Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with PoE and SFP ports

Designed with 8 x 10/100/1000Base-T PoE ports, 2 x 10/100/1000Base-T ports, and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified

Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

PoE Support

With its 240 W PoE+ power budget1, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

High Redundancy and Reliability

ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Enhanced IP Surveillance

Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.

Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment

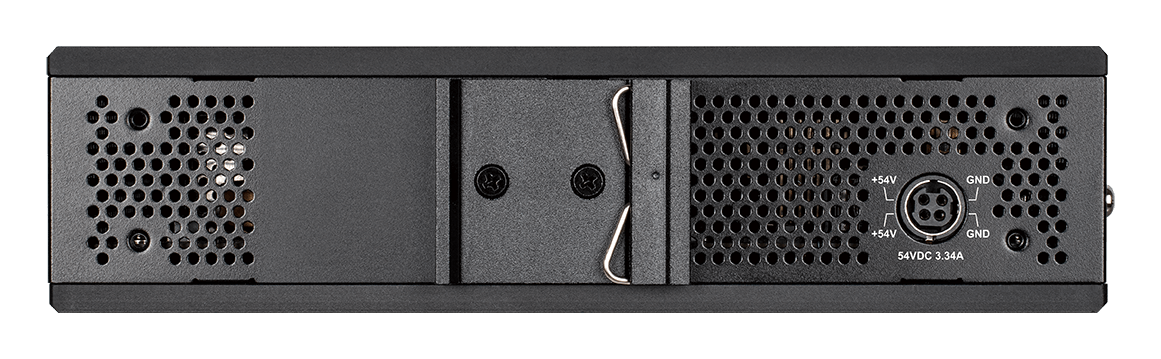

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

Related Products

Industrial Gigabit Smart Managed Switch
DIS-200G-12S
Find out more
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
Find out more
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-14PSW
Find out more
Type
Industrial
Smart managed
Number of ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
SFP
Switching capacity
24 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
8
PoE power budget
See datasheet
Fanless
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
DIN rail
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
Environmental
Free Fall: IEC60068-2-32
Shock: IEC60068-2-27
Vibration: IEC60068-2-6
MAC address
8K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
1024
128
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
4
8
Encryption protocol supported
SSH
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
LLDP
Supported
