18-Port 2.5G Layer 2 Standard Smart PoE Switch

DMS-1250-18P

  • Statut produit (A1 v1.06): Live
  • 16 Ports 2.5GE PoE for downlink
  • 2 Ports 10G SFP+ for uplink
  • PoE IEEE802.3af/at/bt options, power budget 370W
  • 6kV surge protection on all 2.5G ethernet ports
  • Support LACP 802.3ad Link Aggregation
  • Support Static Routing & Loopback Detection
  • Support Spanning Tree Protocol(STP/RSTP/MSTP)
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller

Télécharger la fiche technique.

Voir la liste de nos partenaires

User Benefits​

Souplesse de la connectivité

Prend en charge une large gamme d’interfaces physiques pour des connexions réseau étendues.

Contrôle d’accès

L’interface Web conviviale permet un contrôle réseau efficace et personnalisé

Sécurité renforcée

Prise en charge de fonctions polyvalentes pour accroître la sécurité du réseau

Solution économique

Offre des fonctionnalités avancées et une alimentation réseau à un prix abordable.

2.5G Speeds: Built for Wi-Fi 6 and Beyond

The DMS-1250 Series switches elevate your network with 2.5 Gbps ports, optimized for Wi-Fi 6 access points to maximize throughput and speed. Multi-Gigabit Ethernet eliminates bottlenecks, fully utilizing Wi-Fi 6’s high performance.

6 kV Surge Protection for All Ethernet Ports

The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.​

Support L2+ Features

The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:

  • ERPS
  • GVRP
  • ISM VLAN
  • VLAN Translation
  • Double VLAN (Q-in-Q)
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping
* Please note that support is only available in version R2 or later.

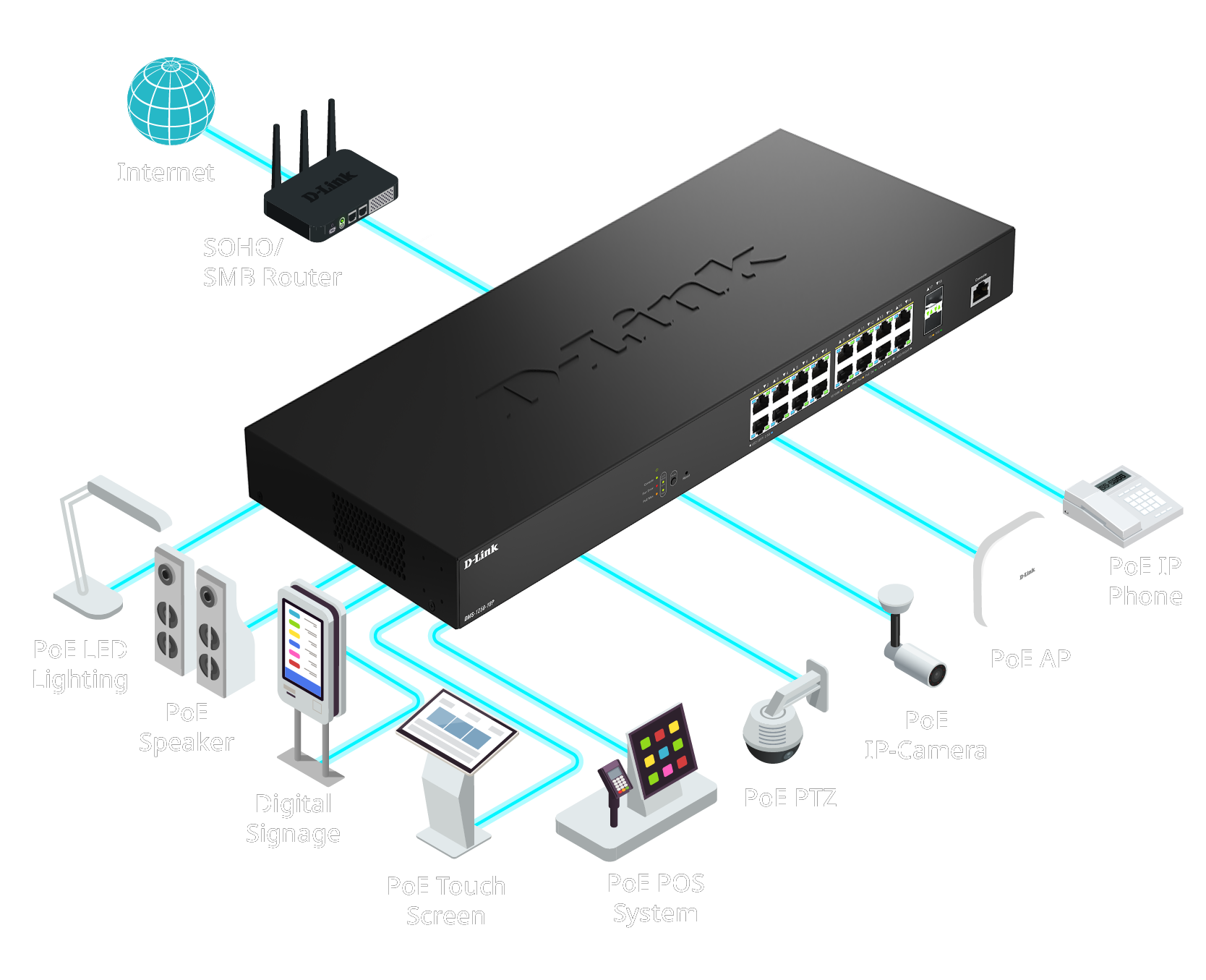

Power and Data over One Cable

2.5G PoE ports deliver high-speed data and power through a single cable. Ideal for Wi-Fi 6/6E access points, IP cameras, and IoT devices. They eliminate network bottlenecks, support up to 370W of total PoE power for demanding devices, and streamline deployment while ensuring scalability for future growth.

Nuclias Network Controller

The DMS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.

Produits apparentés

Smart Switch administrable 8 ports multigigabit
DMS-1250-10SP
En savoir plus
12-Port 2.5G Layer 2 Standard Smart PoE Switch
DMS-1250-12TP
En savoir plus
Commutateur PoE intelligent standard 28 ports 2,5 G Layer 2
DMS-1250-28P
En savoir plus

Applications

Startup Office (Enterprise)

Learn More

Dormitory (Building)

Learn More

Transnational University (Education)

Learn More

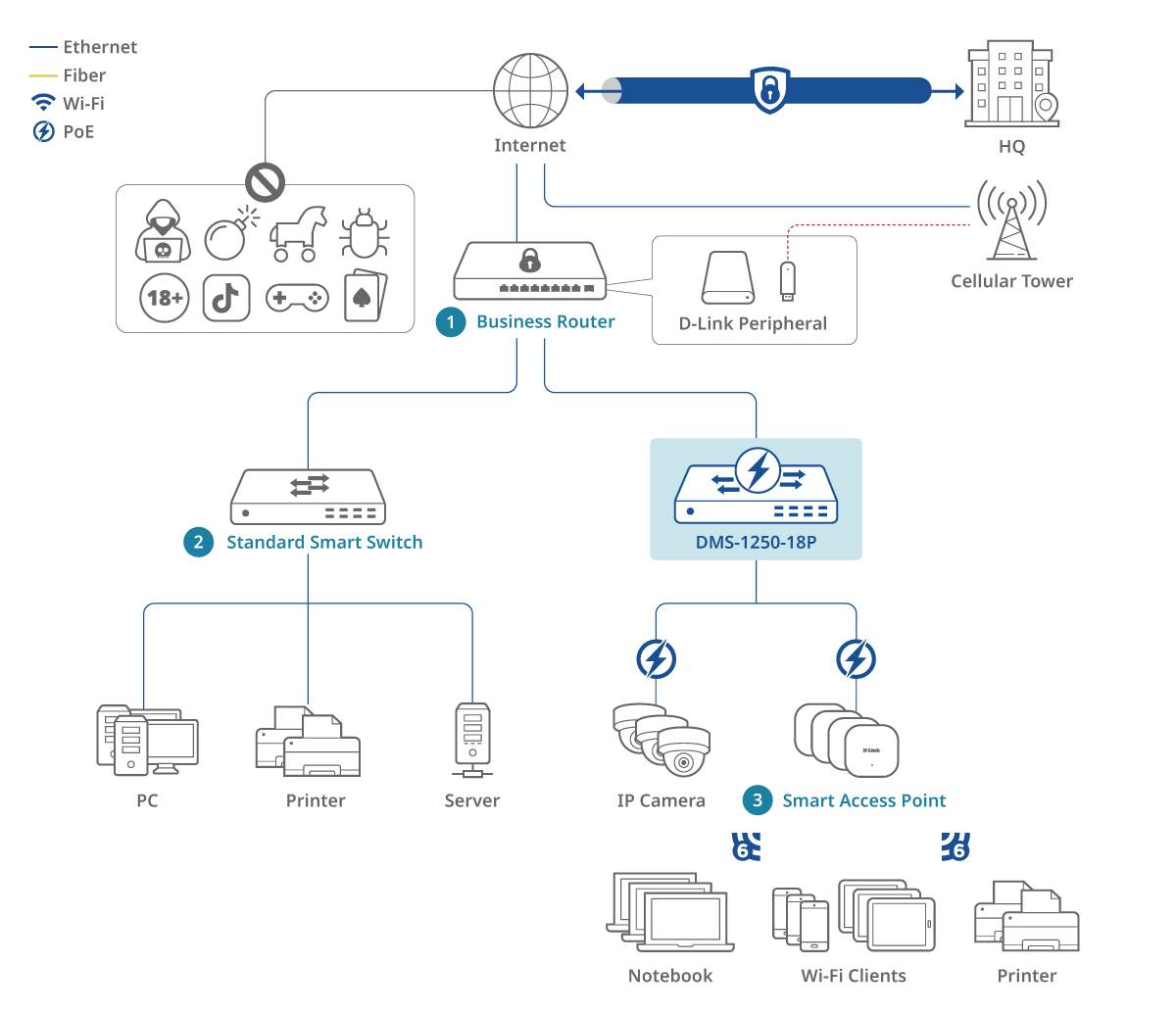

Startup Office (Enterprise)

User benefits :

  • Delivers high-speed connections for bandwidth-heavy tasks
  • Simplify network deployment and management
  • Power devices with PoE++ for flexible deployment
  • Enables future-proof network upgrades
  • Increases bandwidth and redundancy with link aggregation

Learn more :

  1. Business Router : DBR-700
  2. Standard Smart Switch : DMS-1250 Series
  3. Smart Access Point : DBR-X3000-AP

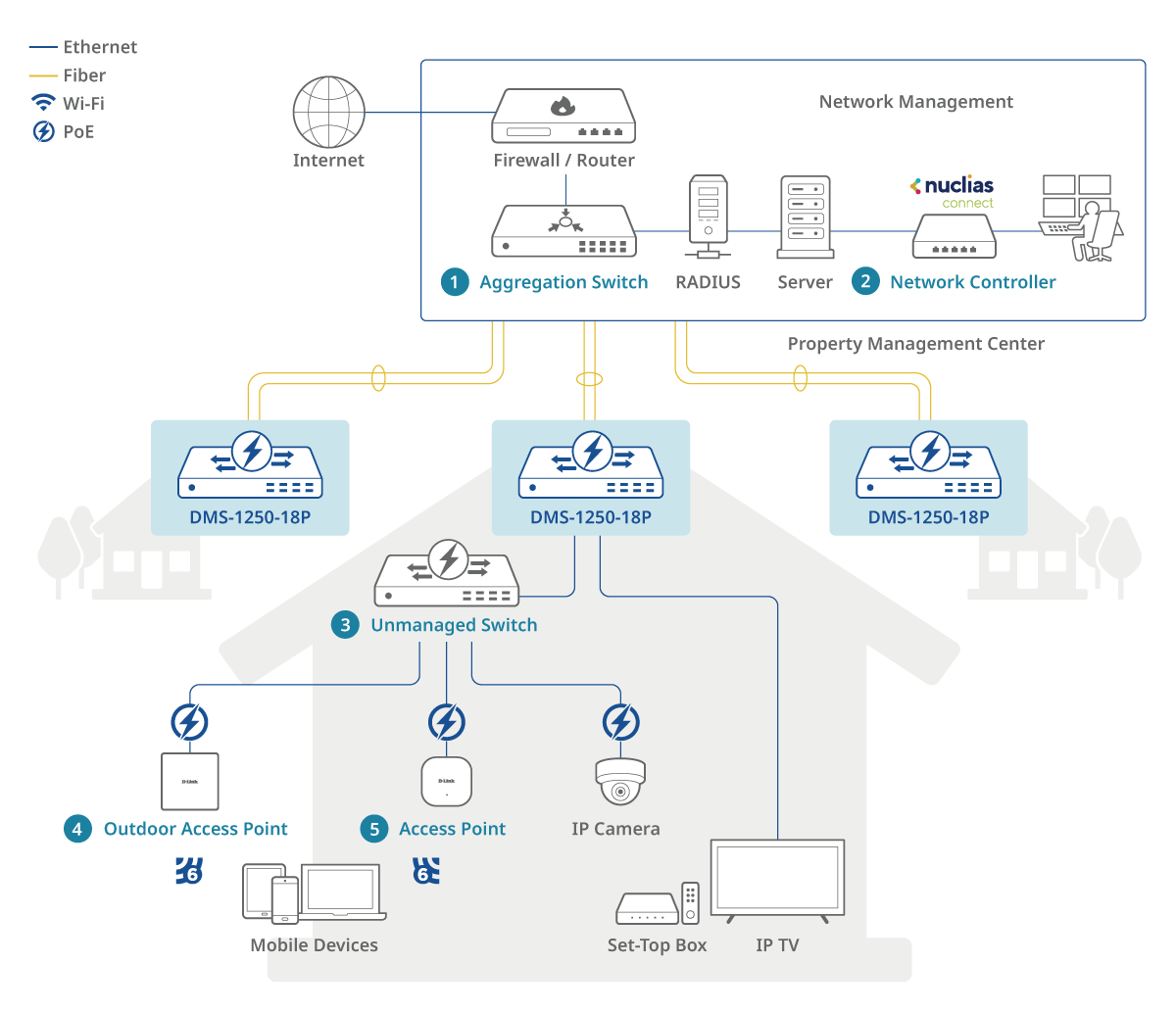

　Dormitory (Building)

User benefits :
  • Provide high-bandwidth connectivity for all residents
  • Power devices with PoE++ for flexible deployment
  • Smooth 4K streaming and online gaming
  • Prevents network disruption with loopback detection
  • Simplify network management with intuitive tools

Learn more :

  1. Aggregation Swtich : DXS-3130-32S ( Coming Soon )
  2. Network Controller : DNH-1000
  3. Unmanaged Switch : DMS-108P

  4. Outdoor Access Point : DAP-X3060OU

  5. Access Point : DAP-X3060

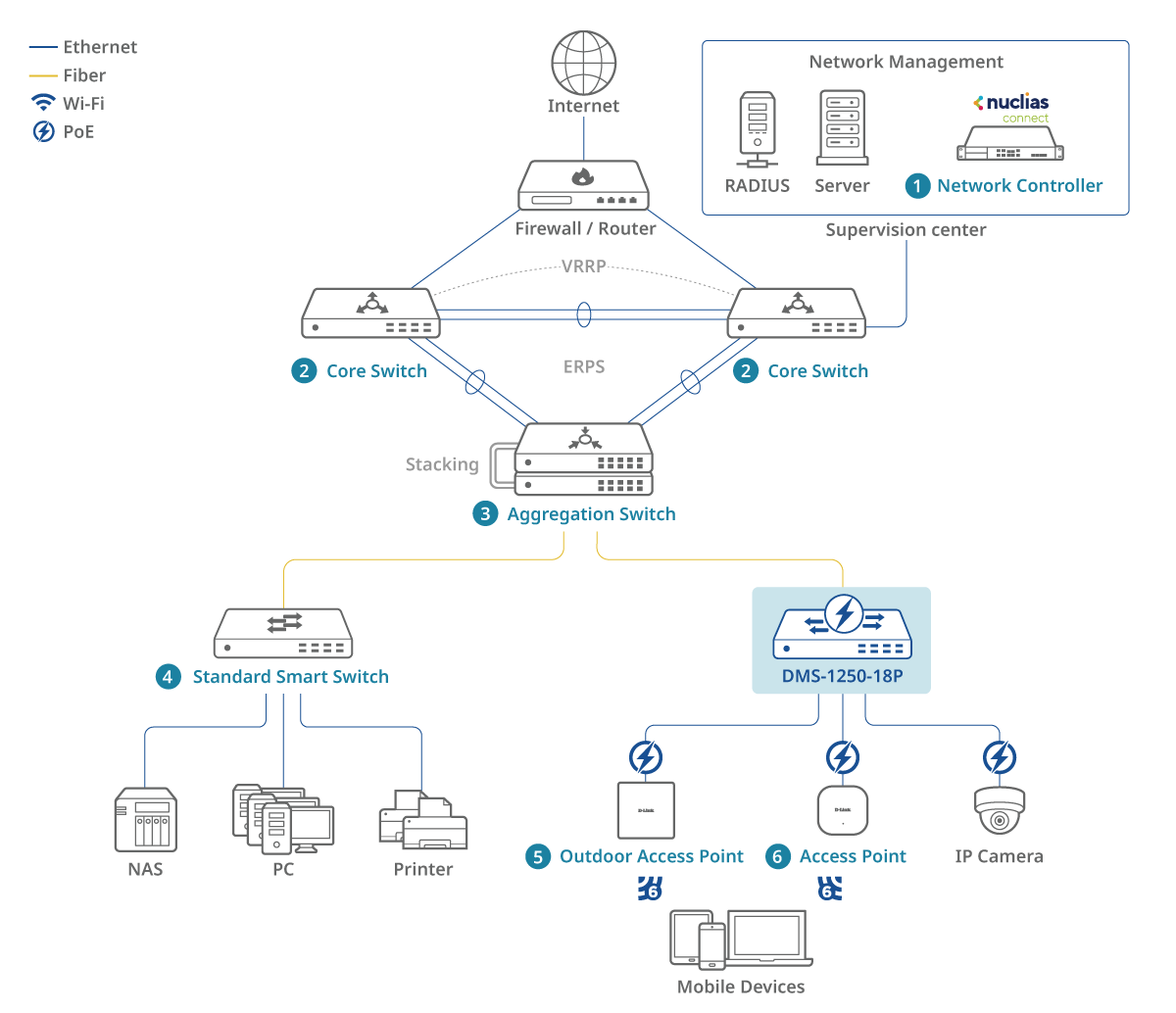

Transnational University (Education)

User benefits :

  • Deliver fast and reliable seamless connectivity
  • Enhances network stability with STP and secure access via AAA
  • Power all classroom devices efficiently with PoE++
  • Simplify network expansion with 10G uplinks
  • Centralized management for efficient control

Learn more :

  1. Network Controller : DNH-3000
  2. Core Switch : DXS-3610-54S
  3. Aggregation Switch : DXS-3130-32S ( Coming Soon )

  4. Standard Smart Switch : DMS-1250 Series

  5. Outdoor Access Point : DAP-X3060OU

  6. Access Point : DAP-X3060

Specs

Télécharger la fiche technique.

Interfaces
16 x 2.5GE PoE
2 x 10G SFP+
Max. Packet Forwarding Rate
89.26Mbps
PoE Power Budget
370W
Max Power Consumption
443.84 W
Dimensions
440 x 250 x 44 mm
Weight
3.524 Kg
Surge Protection
IEEE61000-4-5 surge protection compliance
6kV surge protection on all 2.5-Gigabit Ethernet ports
FAN
3 Internal Fans
Operating Temperature
-5 to 50°C (23 to 122°F)
Storage Temperature
-20˚C to 70˚C (-4˚F to 158˚F)
Storage Humidity
0% to 95% relative humidity
Console Port
Yes
Power Supply Type
Internal

Télécharger la fiche technique.

Support

Version Date Type Taille de fichier
DMS-1250 Series Datasheet - PDF 0.47mb Télécharger
