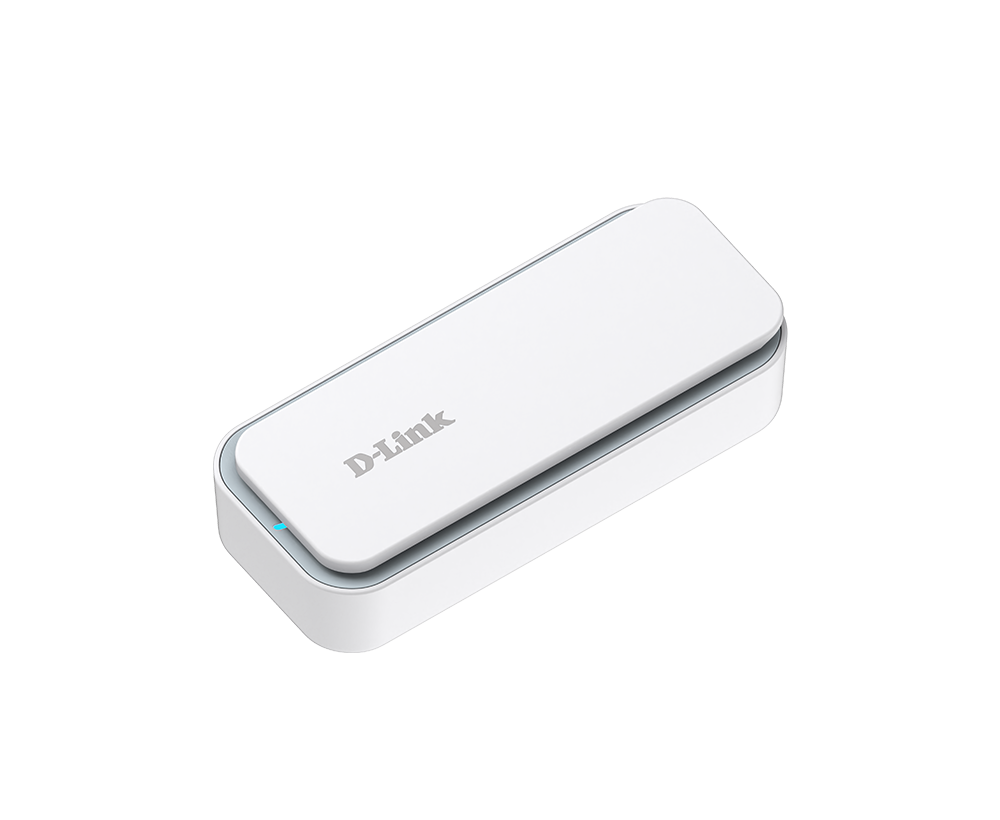

5G LTE USB Adapter

D501

  • Product Status (Revision A): Live
  • 5G-connectiviteit: ingebouwd 5G/4G-modem voor snel internet en naadloze netwerktoegang1
  • uitvouwbaar antenneontwerp: kantel het omhoog voor een betere signaalontvangst
  • Snelle en stabiele USB Type -C: garandeert snelle gegevensoverdracht en stabiele voeding via USB 3.1 Type-C-poort
  • Plug-and -Play: ondersteunt het plaatsen van een Nano SIM-kaart voor directe internettoegang, met probleemloze installatie
  • LED-indicator: biedt duidelijke statusupdates voor connectiviteit en werking
  • 4x4 MIMO: verhoogt de snelheid en stabiliteit voor een soepelere verbinding
  • Verbeterde beveiliging: Biedt een veiligere en privé internetverbinding in vergelijking met openbare wifi
  • Minimalistisch en compact ontwerp: lichtgewicht en past gemakkelijk in een zak of tas
  • Gemaakt in Taiwan: gegarandeerde kwaliteit en prestaties

Download de datasheet.

Alle Verkooppunten

Experience Next-Generation 5G Connectivity

5G features unparalleled broadband speeds, low latency, increased bandwidth, and support for more connected devices compared to 4G networks, delivering instant high-speed connectivity anytime, anywhere.

















Ultra-Fast 5G Internet, Anywhere

Wherever life takes you, the D501 5G NR USB Adapter keeps you connected with ultra-fast 5G speeds, just plug it in, no setup, no hassle. With its compact design and foldable antenna for stable signal reception, the D501 is your ideal solution for reliable Internet on the move.

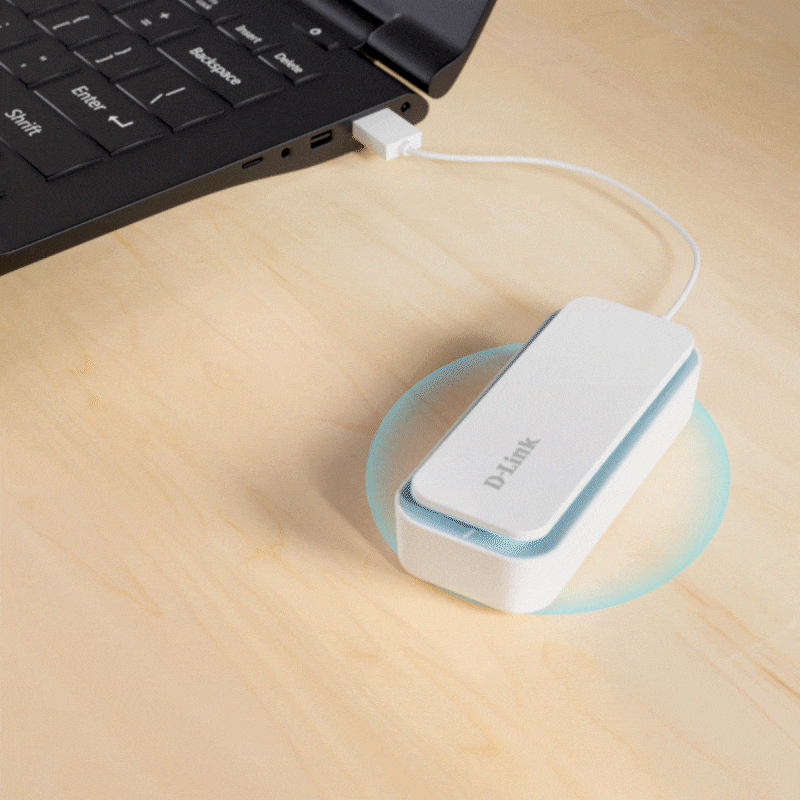

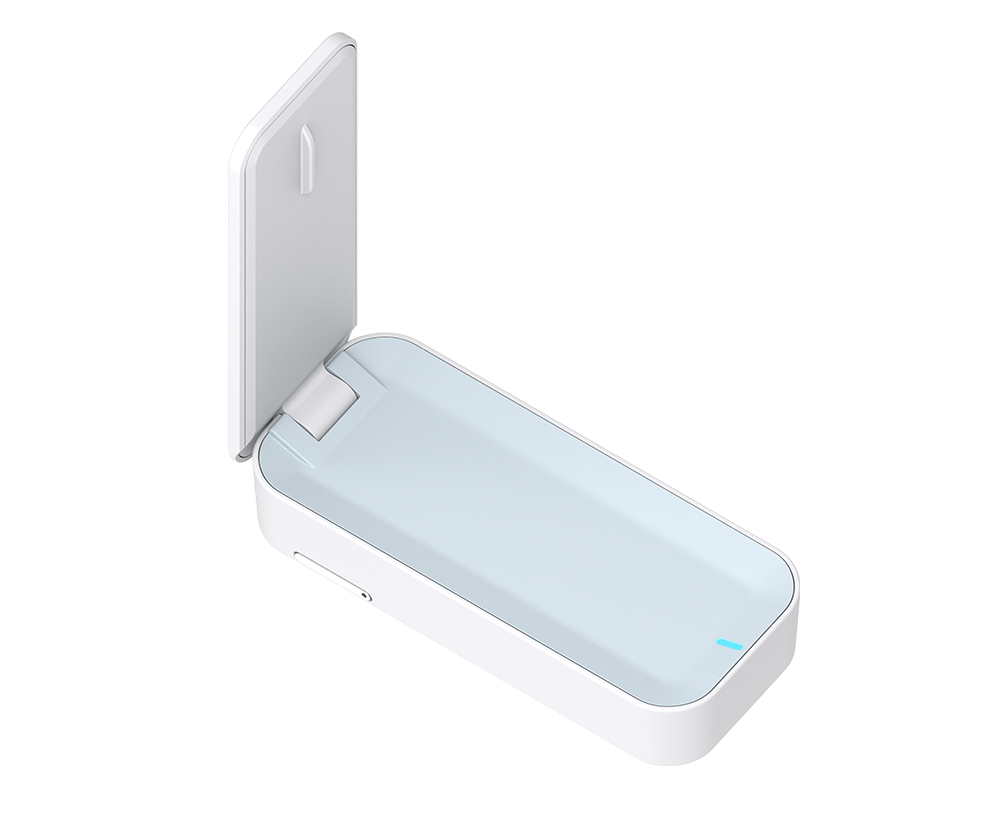

Fold It Down for Travel,　　　Flip It Up to Perform

The D501 features a unique foldable antenna, seamlessly integrated into the main body, that flips up to boost signal reception for a stronger connection, and folds away neatly to maintain a compact form.

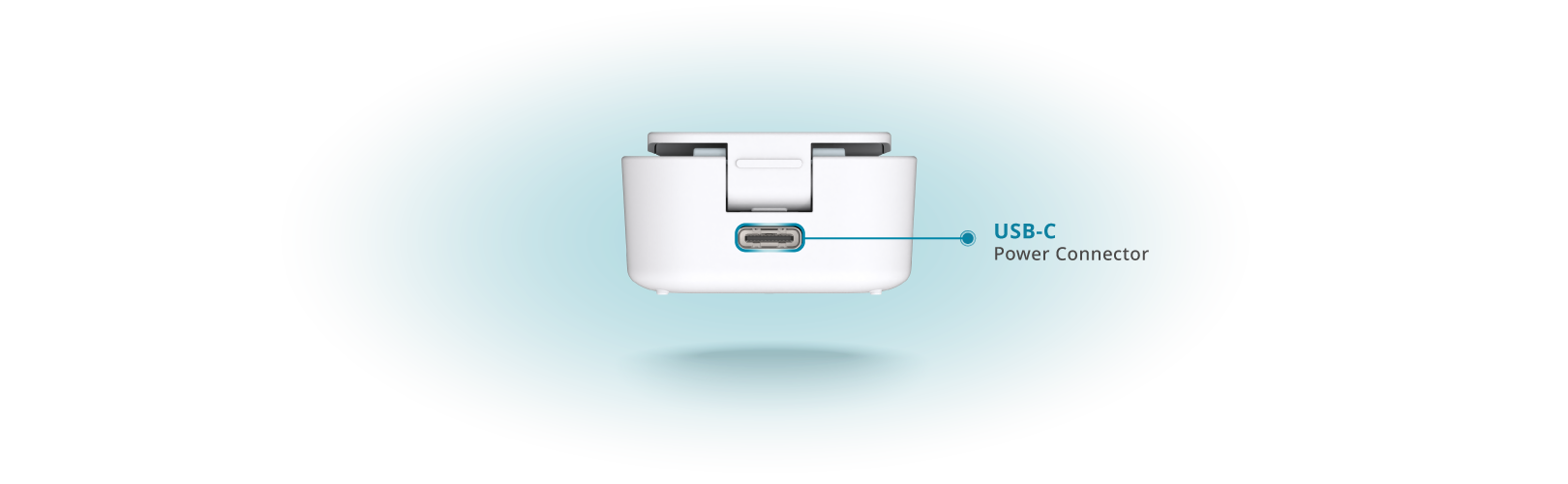

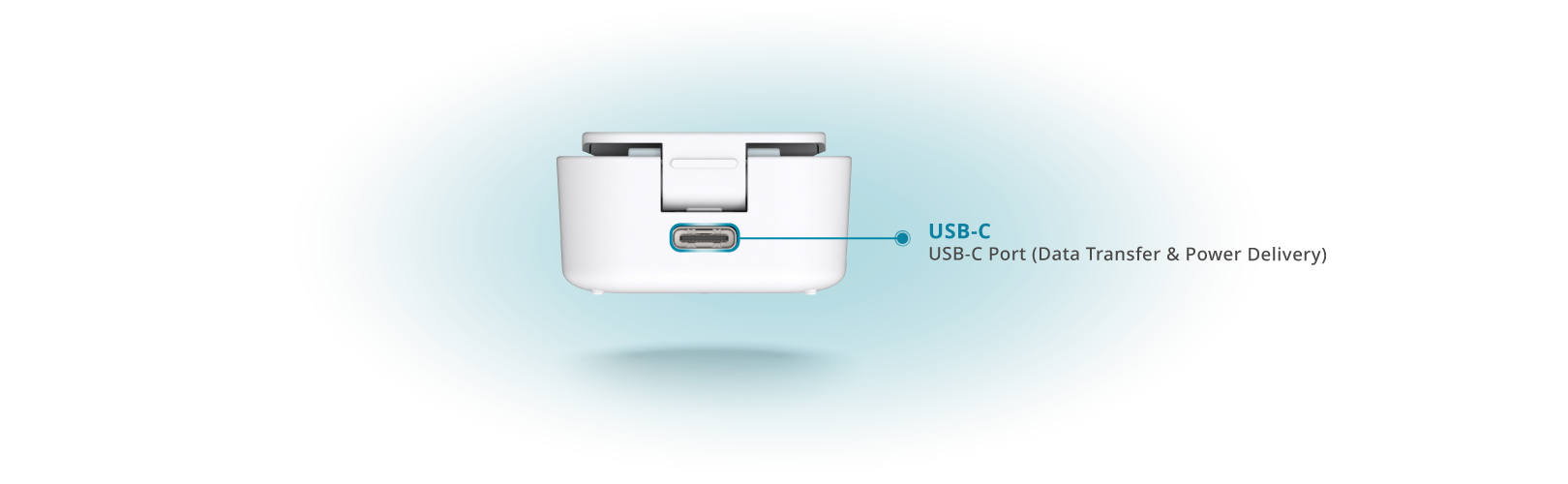

Fast and Stable with USB Type-C

Equipped with a USB 3.1 Type-C port, it delivers high-speed data transfer, stable power delivery, and enhanced connection reliability.

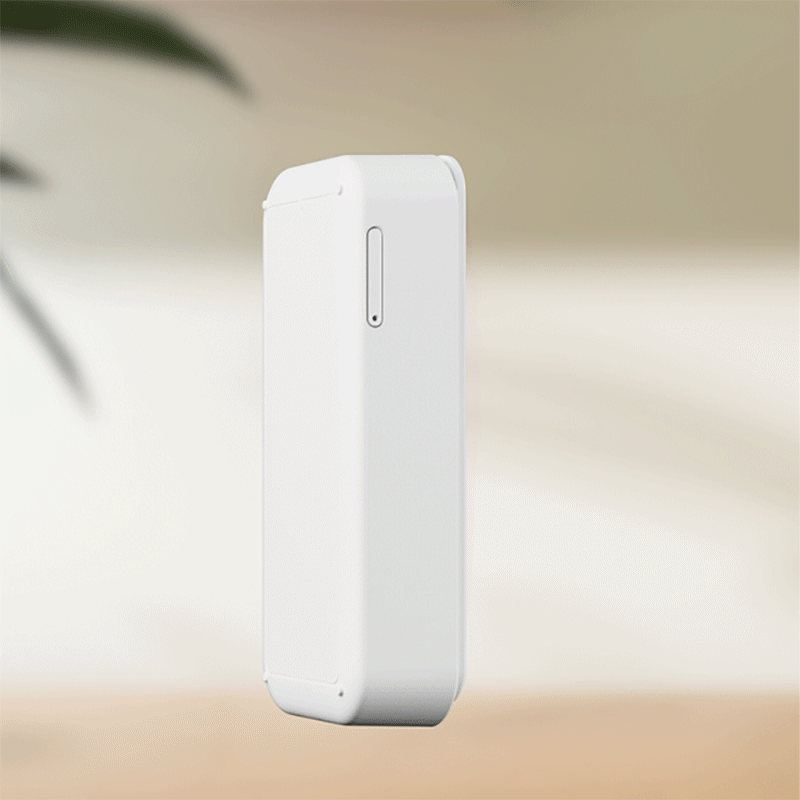

Plug-and-Play Convenience

Simply insert your Nano SIM card and connect to your compatible device, no setup, no installation. You’re instantly connected with zero configuration required.

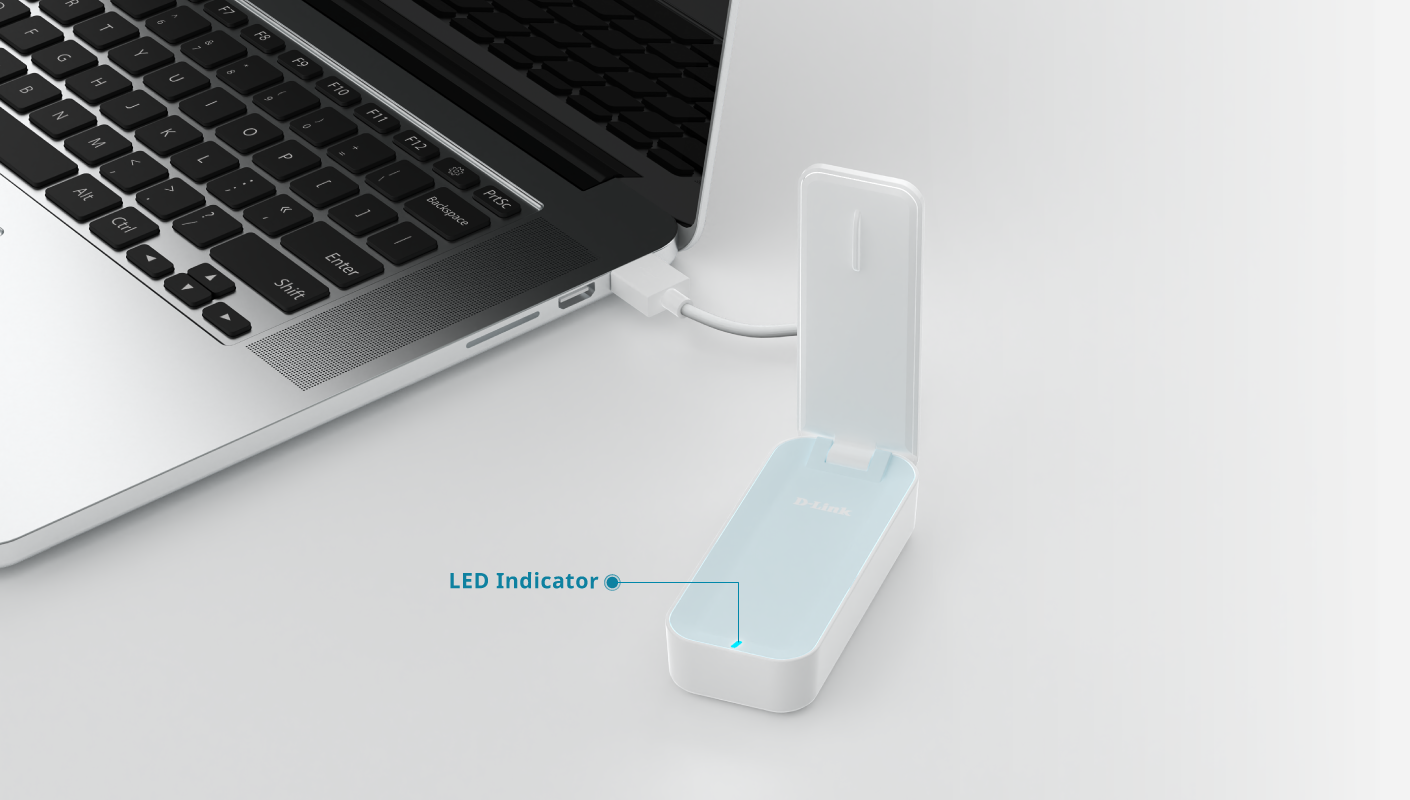

LED Status Indicator

The built-in LED clearly displays the operational status, keeping you instantly informed with real-time connection updates, so you always know when you’re connected and ready to go.

Advanced 4×4 MIMO Technology

The D501 supports advanced 4×4 MIMO technology to boost speed and stability, delivering enhanced data throughput and reliability, so you get a faster, smoother, and more reliable connection wherever you are.

Enhanced Privacy

Stay secure wherever you connect. The direct USB connection ensures a more secure and private Internet experience, keeping your data safer compared to using public Wi-Fi.

5G Connectivity That Keeps Up with You

Whether you're working, streaming, gaming, or on-site, the D501 keeps you connected with ultra-fast, reliable 5G, wherever you are.

Plug-and-Play Connectivity for Remote Work

HD and 4K Streaming Anywhere

Lag-Free Online Gaming on the Move

Crystal-Clear Video Calling on the Go

Temporary Connectivity for On-Site Projects

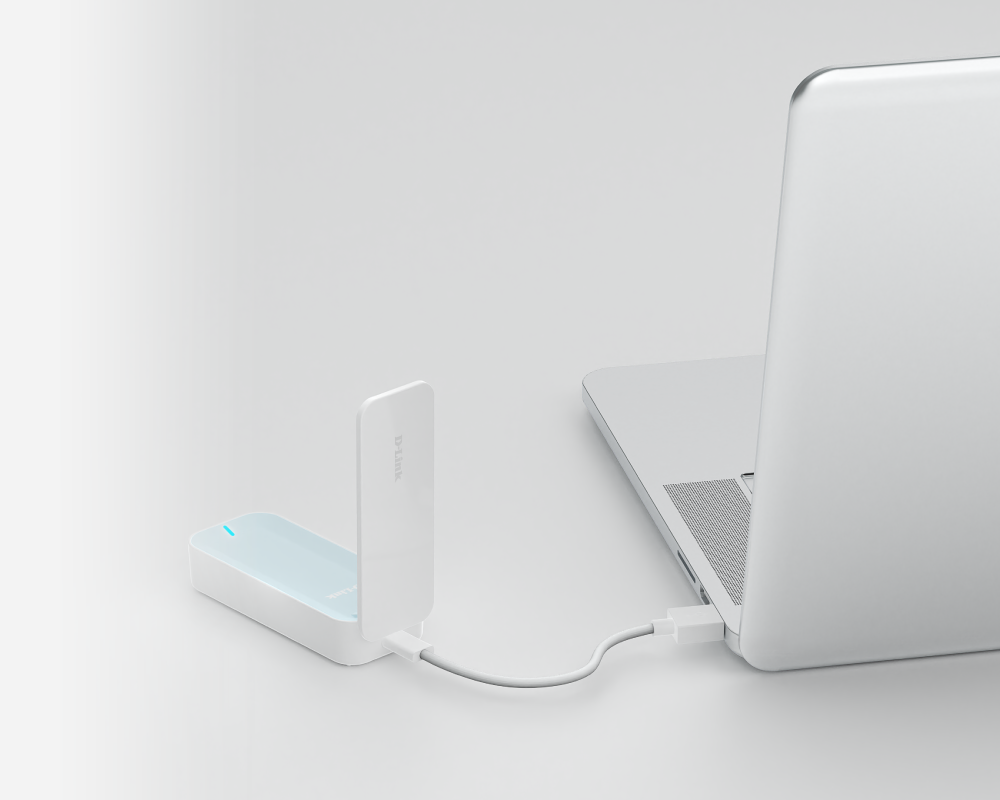

Minimalist Design,　　　　 Lightweight Build

Designed with a minimalist, modern aesthetic and rugged durability, the D501 features a sleek, compact, and lightweight form that fits effortlessly into your pocket or bag. Built for portability, it keeps you connected wherever you go, without the bulk.

1. Theoretical maximum data rate. Actual speeds will vary and are dependent on a range of factors including network configuration, network capacity, signal strength, and the conditions of your mobile broadband service plan.

Specs

Download de datasheet.

Antenna
4 x Internal cellular antennas
Broadband Wireless Support
5G NR / 4G LTE / DC-HSPA+ / HSPA / WCDMA
Data Signal Rates
5G NR (NSA mode)
• Downlink: Up to 3.4 Gbps
• Uplink: Up to 550 Mbps
5G NR (SA mode)
• Downlink: Up to 2.4 Gbps
• Uplink: Up to 900 Mbps
4G/LTE
• Downlink: Up to 1.6 Gbps
• Uplink: Up to 200 Mbps
DC-HSPA
• Downlink: Up to 42 Mbps
• Uplink: Up to 5.76 Mbps
Dimensions
95 mm x 41 mm x 22.5 mm (3.74 x 1.61 x 0.89 in)
Interfaces
USB 3.1 Type-C
Nano SIM (4FF)
LED Status Indicators
Green (blinking): Connected to LTE network
Blue (blinking): Connected to 5G network
Green (solid): Registering to LTE network (not connected)
Blue (solid): Registering to 5G network (not connected)
Red (blinking): No service/device error
Operating System
Microsoft Windows 10 and above
Linux 5 and above
macOS 10.15.7 and above
Power Input
Type-C 5V/1.5A
Weight
68 g (2.40 oz)

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Download de datasheet.

Support

Versie Datum Type Bestandsgrootte
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels Handleiding in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Quick Start Guide Quick Start Guide - - - Download
Versie Beschrijving Datum
Conformiteitsverlaring Rev.A1 Conformiteitsverlaring Rev.A1 - Download
