5G M2M Router

DWM-550-G

  • Product Status (Revision AX_v1.1): Live
  • 5G SA & NSA speeds of up to 3.4 Gbps1 for Internet access and data transfer
  • Wi-Fi speeds of up to 1.8 Gbps1 to connect multiple Wi-Fi devices
  • 1 x Gigabit Ethernet WAN/LAN port configurable as wired WAN access
  • 3 x Gigabit Ethernet LAN port for reliable wired connectivity
  • 2 x SIM slots for cellular WAN failover redundancy
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
  • -30 to 70°C operating temperature to resist harsh environments
  • Optional Wall mount bracket allows for optimal device placement

Download the datasheet.

Where to buy

User Benefits

5G SA & NSA

Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 5G Redundancy

Seamless failover between Ethernet WAN and 5G for reliable connectivity.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Secure VPN Protection

Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Wi-Fi 6 AX1800

Drive Wi-Fi 6 to cover various portable and IoT device networking services.

Carrier Diversity and Network Redundancy

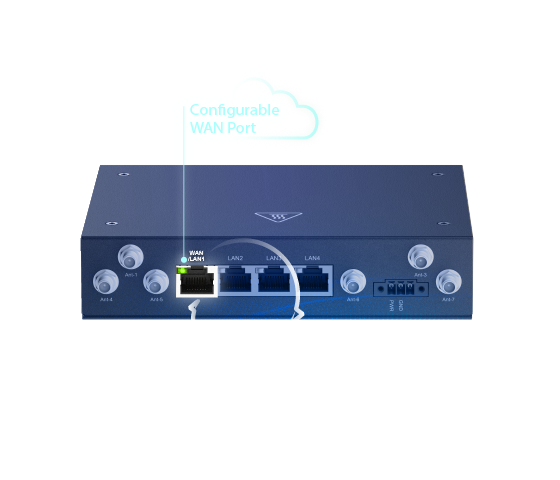

The DWM-550-G 5G M2M Router ensures continuous service with Dual SIM (Nano-SIM 4FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and 5G connections, ensuring you always have the best network access.

FailoverDWM550G560x480

Secure Your Network with VPN

The DWM-550-G 5G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-550-G ensures that financial transactions and customer information are securely managed and transmitted.

VPN

Robust Build Quality

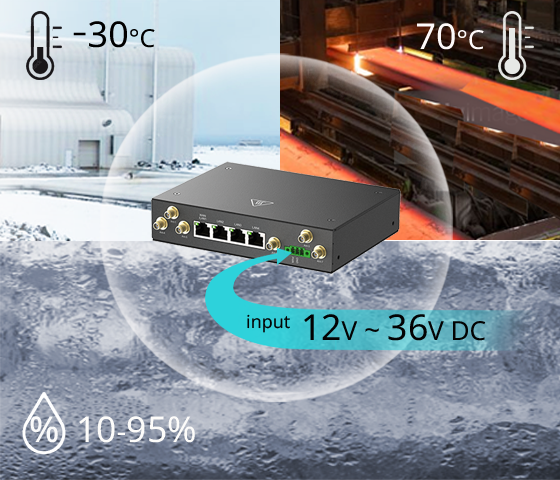

The DWM-550-G is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment.

Dwm_550g _wideinput

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

DWM313SideFront
4G M2M Router
DWM-313
Find out more
DWM530THFront
4G M2M Router
DWM-530-T
Find out more

High-Speed 5G & Wi-Fi 6 Connectivity for Modern IoT Deployments

Explore the capabilities of the DWM-550-G 5G M2M Router, engineered for peak performance with high-speed 5G and Wi-Fi 6 AX1800 technology for machine-to-machine applications. Featuring dual-SIM support, it maintains constant communication by switching to a backup network during primary network failures. This router secures data with advanced VPN features and facilitates centralized management via the D-ECS platform.
Ideal for diverse settings like NVRs, kiosks, industrial PCs, digital signage, and mobile POS systems, the DWM-550-G is perfect for remote locations, pop-up stores, and bus stops, enhancing efficient operation and network performance.

img_dwm_550g_connection

Versatile Applications

Kiosk

Remote access for kiosks ensures secure and continuous operation while minimizing service interruptions.

EV Charger

Remote management of charging information and usage status to optimize operations.

Smart Bus Stop

Remote access for real-time bus info and ad updates, enhancing commuter experience.

Vending Machine

Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.

4G/5G Antenna Connectors
4 x SMA antennas
Bridge Mode
Yes
Cellular Module
5G NR
Ethernet Interface
1 x WAN/LAN GE
3 x LAN GE
IPv6
Cellular IPv6
LAN
DHCP Server/Relay
Local Management
Web UI/SSH
Maximum Cellular Data Throughput
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
Network Address Translation (NAT)
Yes
OpenVPN
Yes
Port Forwarding
Yes
Power Input
3-pin TB for DC 12V-36V
Remote Management
D-ECS
SIM Slot
2 x 4FF Nano-SIM
SMS Notification
Yes
Temperature
Operating -30 to 70 ˚C
WAN
Cellular/Ethernet
Wi-Fi Antenna Connectors
2 x RP-SMA antennas

Support

Version Date Type File Size
Datasheet - PDF 0.43mb Download
