Wireless AC2200 Wave 2 Tri-Band Unified Access Point

DWL-7620AP

  • Product Status (Revision A): Live
  • 802.11ac Wave 2, Tri-Band, up to 2.2 Gbps*
  • 2 Internal Omnidirectional Antennas
  • Up to 64 dynamic VLANs per access point
  • 802.11k Fast Roaming1, MU-MIMO and QoS with WMM
  • Link Aggregation2
  • Limited Lifetime Warranty

Download the datasheet.

Where to buy
AC2200 Wave 2 Wi-Fi

802.11ac Wave 2 wireless with combined speeds of up to 2.2 Gbps*

Tri-Band Wi-Fi

Improved throughput and coverage with three bands. Reduces co-channel interference, bringing more reliability in high-density areas.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

Automatic Radio Frequency (RF) Management

Greatly reduces RF interference and enables denser AP deployments.

Centrally Managed

Used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller.

Faster Business with Wave 2 Tri-Band Wi-Fi

The Wireless AC2200 Wave 2 Tri-Band Unified Access Point delivers great bandwidth and flexibility for medium to large Wi-Fi networks. Its fast Tri-Band speeds, 2x2 MU-MIMO, band steering, and Airtime Fairness upgrades your business to the best.

Advanced Wireless Features

802.11k Fast Roaming1 allows wireless clients to move seamlessly between access points. 802.1p Quality of Service (QoS) provides enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. It also supports Wi-Fi Multimedia (WMM), so in the event of network congestion, time-sensitive traffic can be prioritised. Airtime Fairness ensures that equal airtime is given to each client, preventing slower devices from monopolising the wireless connection.

Upgrade to Tri-Band WiFi

The DWL-7620AP features one 2.4 GHz and two 5 GHz wireless bands for the growing number of devices connecting to a single access point.

Allows older 802.11b/g/n devices to connect to the 2.4 GHz while two 5 GHz bands can be dedicated to newer, faster wireless AC devices to enjoy seamless bandwidth-intensive applications like HD video conferencing, VoIP and file collaboration.

Band steering technology efficiently load balances the clients and traffic between the three wireless bands to ensure your wireless clients have a superior user experience even in high-density environments.

Greater Speed and Connectivity

Combined wireless speeds of up to 2,200 Mbps* over 3 wireless bands for improved business network speeds.

Wired link aggregation2 allows two Gigabit Ethernet ports to be linked together and act as a single port doubling the access point’s available bandwidth and maximising the overall throughput.

MU-MIMO Efficiency

With support for MU-MIMO (Multi-User Multiple Input Multiple Output), the DWL-7620AP simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity. The 2 x 2 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

Flexible Deployment

It can be ceiling mounted or wall mounted to provide the best wireless coverage. Integrated Power over Ethernet (PoE) makes deployments faster and means it can be installed in areas without power outlets.

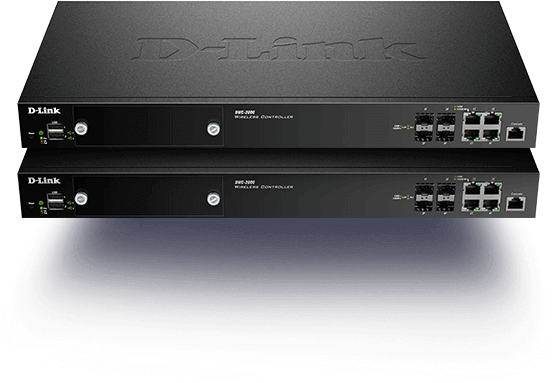

Effective Management

D-Link Unified Wireless Controllers enable centralised management of multiple access points. Used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller. The AP includes a Console port for debugging and configuration.

Centrally Managed

When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple units of DWL-7620AP can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently.

Automatic Radio Frequency (RF) Management

When the DWL-7620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows access points to be deployed more densely.

To further minimise interference, when a nearby AP is on the same channel, the DWL-7620AP will automatically lower its transmission power. If the nearby access point fails, then this access point will increase its transmission power to expand coverage.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Η επικοινωνία μαζί μας είναι εύκολη

Ειδικευμένη τεχνική υποστήριξη σε 16 χώρες. Οι ομάδες υποστήριξής μας είναι έτοιμες να σας βοηθήσουν.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Type
Hardware-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Tri-band simultaneous
Wireless speed
2 x 867 Mbps 5 GHz
400 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
Advanced features
Fast Roaming
MU-MIMO
SmartBeam
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
802.1D STP
Supported
IPv6
Supported
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

*Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building
materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
1. This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
2. Support static Link Aggregation (LAG).
