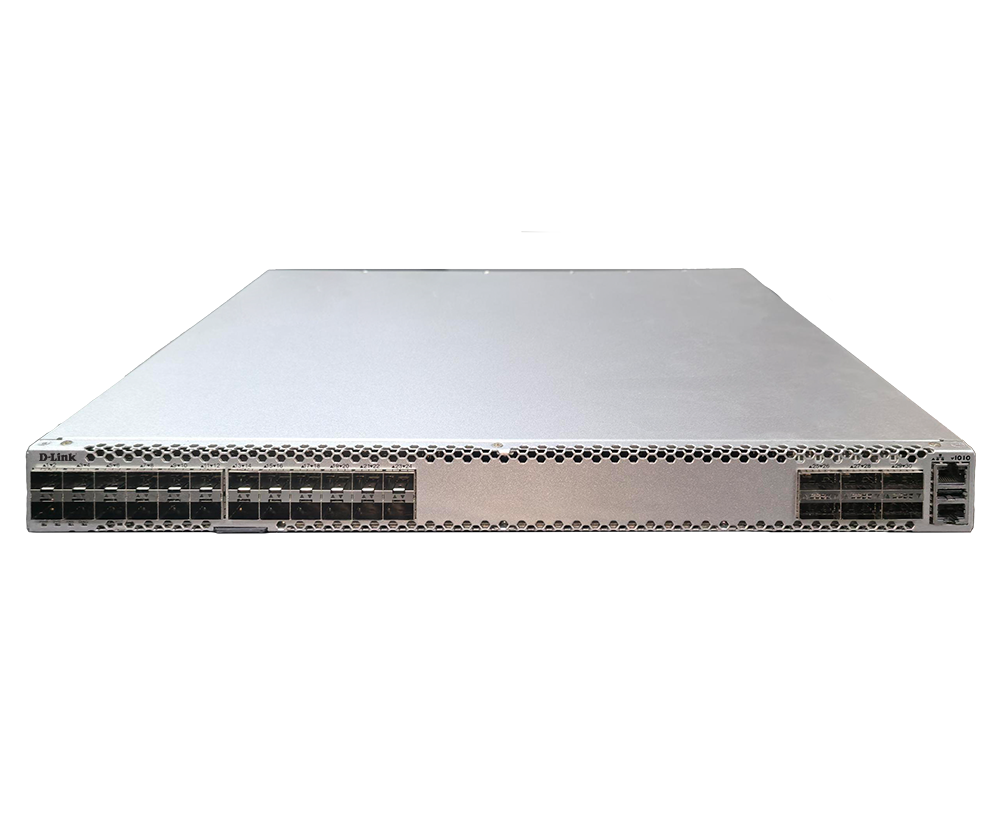

24 x 10G SFP + 6 x 100G QSFP28 Optical L3 Manage Switch
DXS-F3400-28SC (B1 version)
- Product Status: Live
- Flexible Port Mix - 24×10G SFP+ for access and 6×100G QSFP28 for uplinks, supporting mixed NIC-speed environments
- Multi-domain Role - VXLAN EVPN, VRF segmentation, MC-LAG, and MPLS-ready operation for provider edge/ provided core
- VSF Stacking - Stack up to 6 units into a single logical chassis for simplified management and redundancy
- High Availability - M-LAG, ERPS, and hot-swappable power and fans for carrier-grade uptime
- Open & Automated - ZTP, Netconf, SNMP, and telemetry-ready for network automation
High Availability & Flexibility

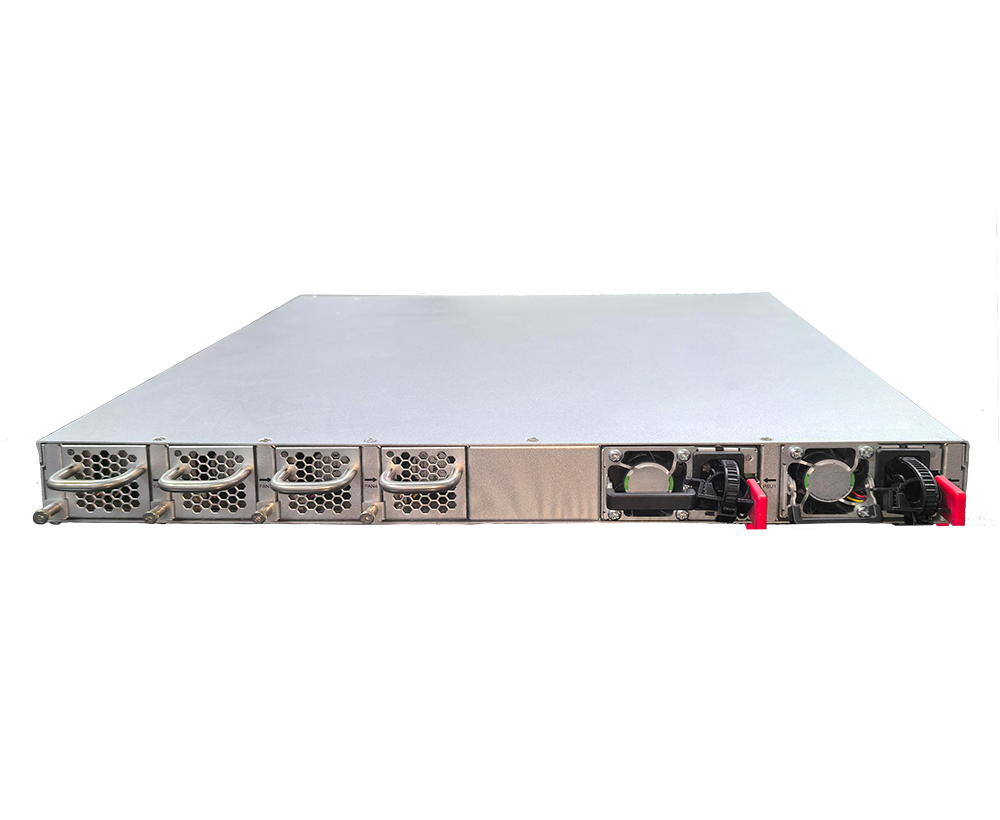

This switch features a modular power supply design for a high availability architecture. The hot-swappable design means that power supplies can be replaced without affecting switch operation. Virtual switch stacking allows the switch to be managed from a single IP address and provide redundancy for connected devices.
Layer 3 Routing
The DXS-F3400-28SC having features a wide range of Layer 2, VLAN, multicasting, Quality of Service (QoS), security, data center, and static routing protocols including RIP, VRRP and OSPF. IPv4/v6 routing including BGP and L3 multicasting features such as IGMP, MLD, PIM-DM, SM. The DXS-F3400-28SC to be deployed as the core router or as an aggregation switch in an enterprise environment.
High Density ToR Leaf
What makes the DXS-F3400-28SC rare in the market is its ability to behave as a campus core (with VSF stacking up to 6 units), a high-density ToR leaf with line-rate 10G access and 100G uplinks, or a compact provider-edge device — all from the same hardware platform. This convergence of features lets teams standardize on one family of hardware while supporting multi-cloud fabrics, carrier-class services, and mission-critical campus infrastructure.
Layer 3 Routing
Built for automation and scale, it supports ZTP for zero-touch provisioning and modern telemetry/management interfaces. The result is a single, future-ready device that reduces operational complexity while delivering deterministic performance across enterprise and service-provider scenarios.
Specification
| Interfaces | 24* 10GE SFP+ & 6*100GE QSFP28 Ports |
|---|---|
| Console Port | RJ-45 console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management |
| USB Port | 1*2.0 port |
| Switching Capacity | 1.7 Tbps |
| Packet Buffer Memory | 6 MB |
| MAC Address Table | Up to 32K entries |
| Power input | 100 to 240 V AC, 50Hz ± 10% (Hot-Swap)*2 |
| Dimensions | 440 x 410 x 44 mm |
| Operating Temperature | 0° to 40° C |
| Flash | 1 GB - NAND FLASH/ MMC - 8GB |
| Dram | 4 GB |
| Power Consumption | No Load: 45W, Full Load: 70W |
| MTBF (H) | >200 000 |
| Stackability | VSF (up to 6 Units) |
