48 10G SFP+ Ports & 6 x 100G QSFP28 ports Two AC modular power supplies

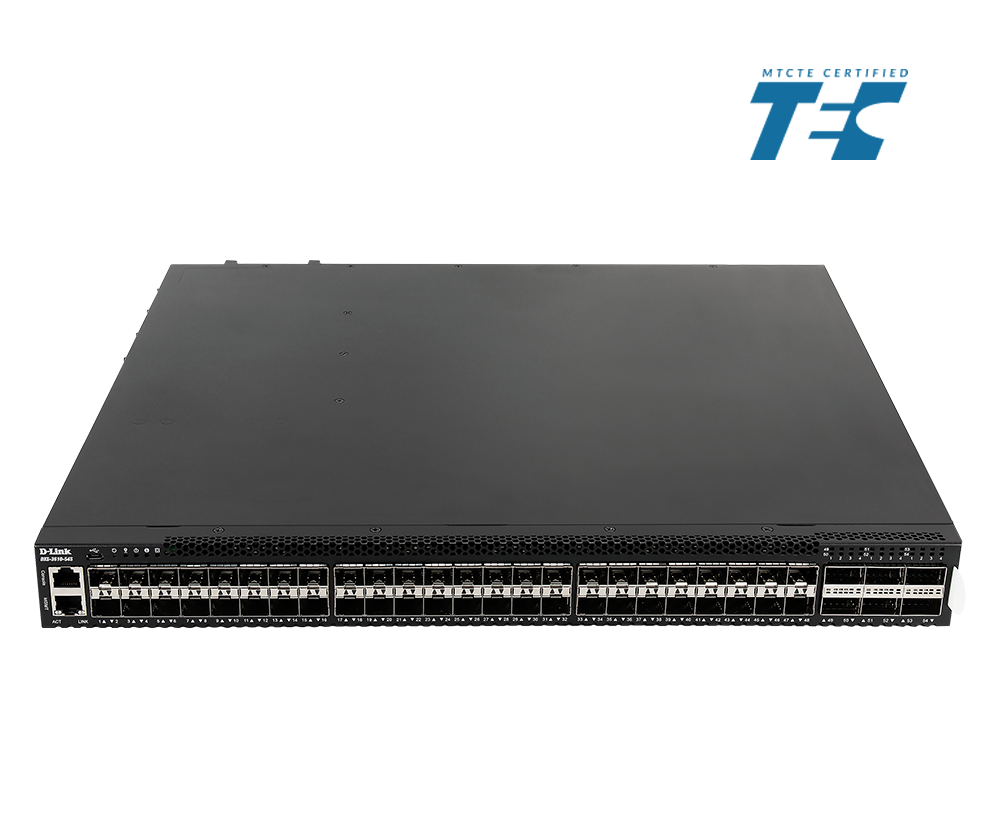

DXS-F3610-54S
- Product Status (Revision IN): Live
- High port density : 48 10G SFP+ Ports & 6 x 100G QSFP28 ports
- Open Flow v1.4 compliance for DSN-enabled network compatibility
- Modular PSU (1+1) and 5 fan modules
- Switch locater LED and ID tag for maintenance convenience
Where to buy
Open Flow Switching
The DXS-F3610 layer 3 is open flow switches compatible with SDN enable network architecture for deployment in high-performance data center, enterprise, and campus applications.
Specification
| Size | 19-inch, 1U rackmount |
|---|---|
| Interfaces | 48 x 1/10GbE SFP/SFP+ ports, 6 x 40/100GbE QSFP+/QSFP28 ports |
| Console Port | RJ-45 console port for out-of-band management |
| Management Port | 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management |
| USB Port | 1 x USB 2.0 Type A port |
| DRAM | 16 GB S0-DIMM DDR4 |
| Flash Memory | 32MB SPI NOR, M.2 32GB MLC |
| CPU | Intel Atom/Denverton C3558 2.2GHz 4 core x86 processor |
