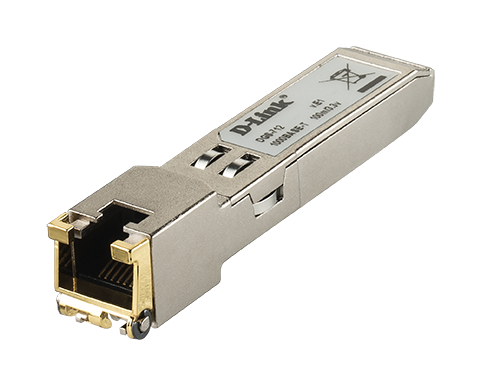

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper.
1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only
Cable Type
Cat. 5 twisted-pair cable
Maximum Cable Distance Coverage
100 meters
Supply Current
350mA (typical)
400mA (maximum)
1.3W max power over full range of voltage and temperature
Input Voltage
3.1V (minimum)
3.3V (typical)
3.5V (maximum)
Referenced to GND
Surge Current
30mA
Hot plug above steady state current
Dimensions (W x D x H)
.47” x 2.95” x .47” (11mm x 75mm x 11mm)
Weight
.53 lbs (0.2 kg)
Operating Temperature
32° to 185° F (0° to 85° C)
Storage Temperature
-40° to 185° F (-40° to 85° C)
Waranty
2-Year Limited
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
