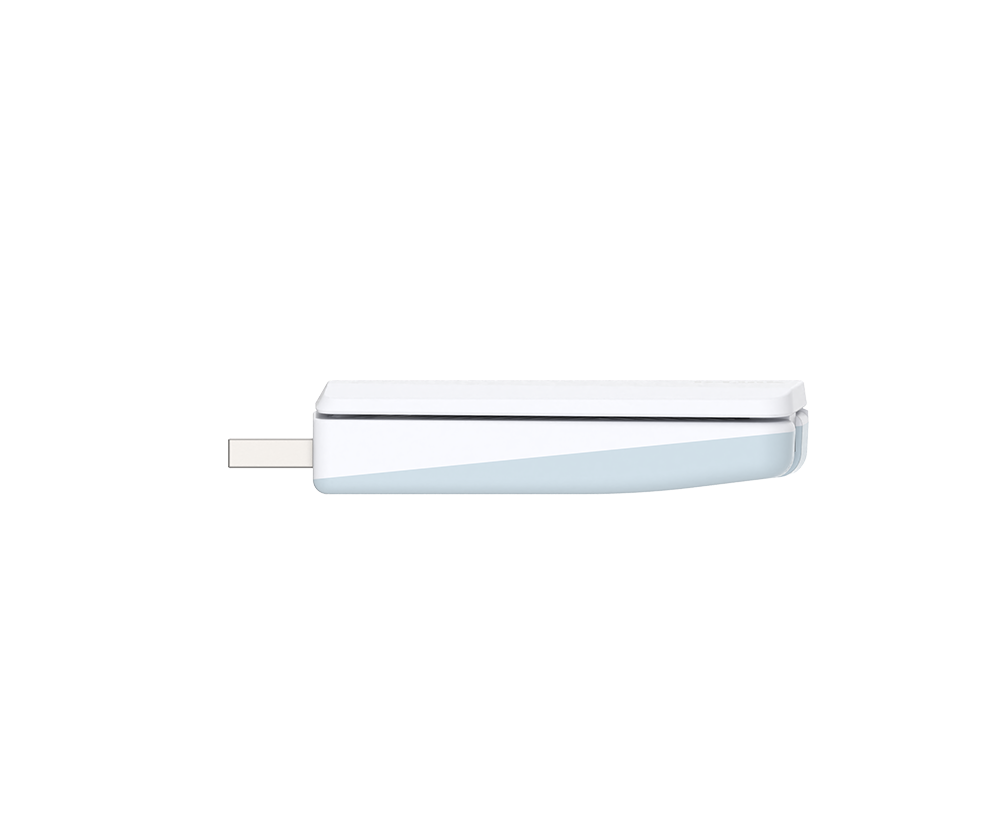

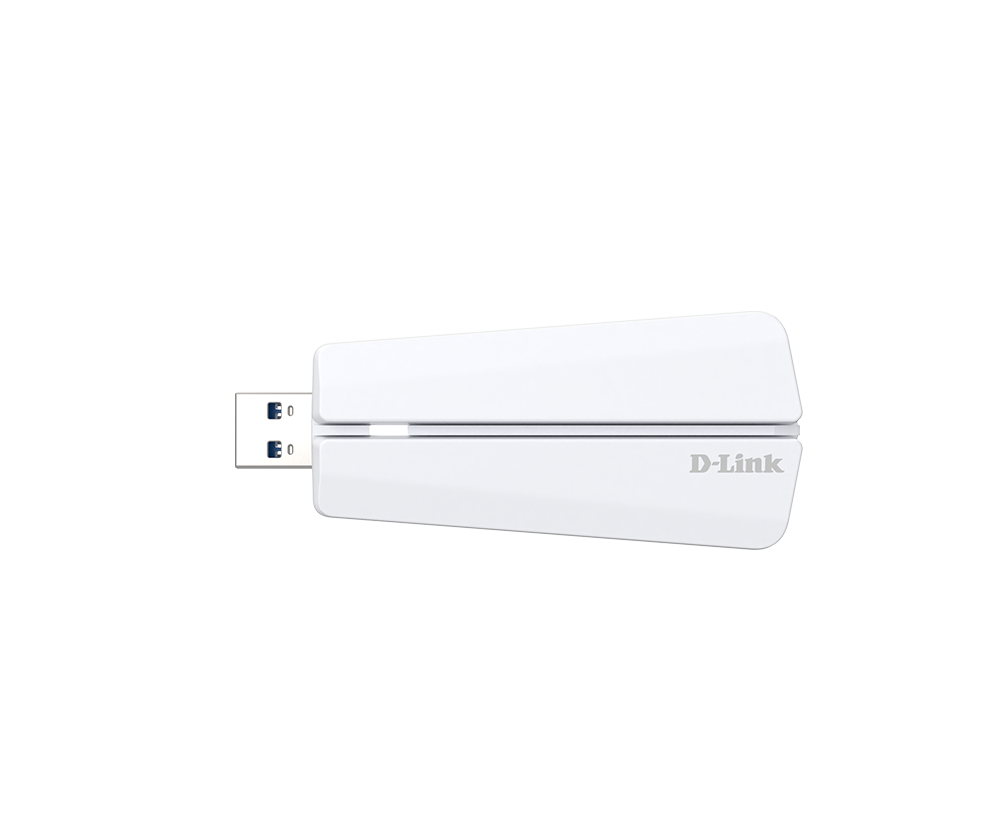

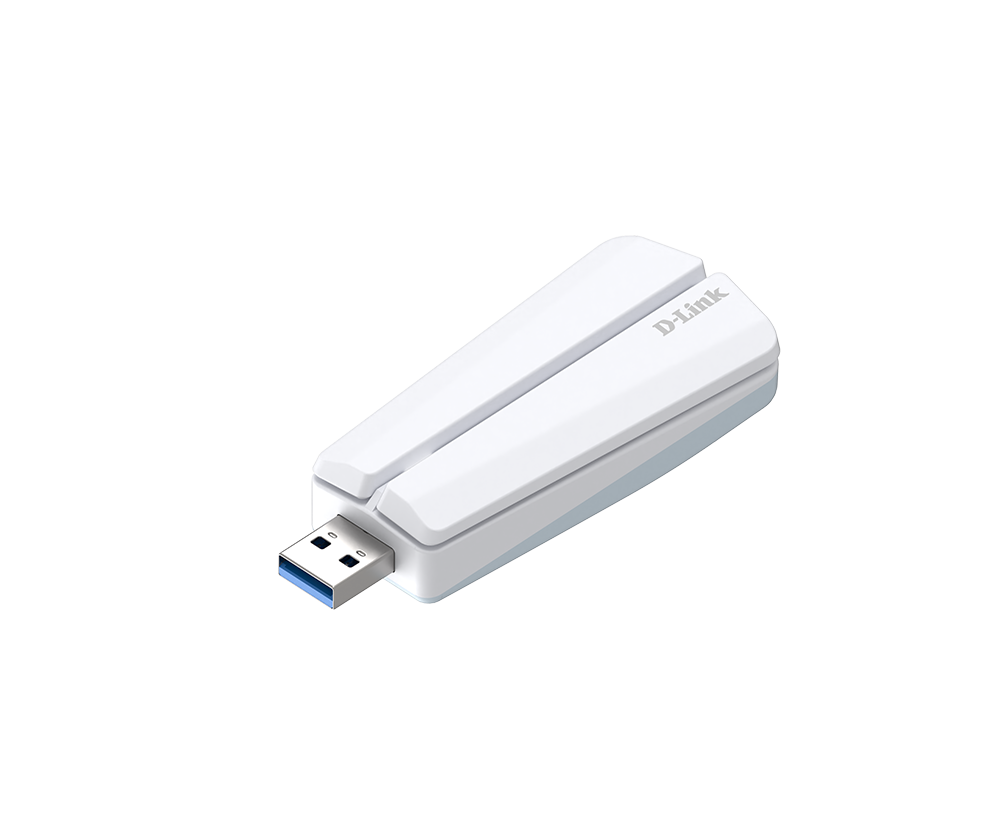

BE6500 Wi-Fi 7 USB-adapter

AE65U

  • Product Status (AE65U_A1_Datasheet_v1.01(WW)): Live
  • Den senaste Wi-Fi 7-tekniken: Levererar ultrasnabb prestanda1, större kapacitet och högre genomströmning
  • Trebandsprestanda: Stödjer 2,4 GHz, 5 GHz och 6 GHz med 160 MHz-kanaler
  • Multi-Link Operation (MLO)-teknik: Överför data samtidigt över olika band för att minimera överbelastning
  • Utfällbar antenn: Två 180°-antenner förbättrar Wi-Fi-räckvidden och säkerställer optimal mottagning och stabilitet
  • Plug & Install: Snabb och enkel installation via USB-port
  • Ökad säkerhet Den senaste WPA3™-krypteringen ger ett starkare skydd för personuppgifter
  • Stöd för USB 3.0-standard: Säkerställer maximala överföringshastigheter 2
  • Flexibel placering: Inkluderar en avtagbar vagga för bättre placering och täckning
  • Tillverkad i Taiwan

Download the datasheet.

Where to buy

Instantly Upgrade Your PC to Wi-Fi 7

The AE65U BE6500 Wi-Fi 7 USB Adapter brings powerful Wi-Fi 7 tri-band performance to your device, with blazing-fast speeds1, 4096-QAM, 160 MHz bandwidth, and Multi-Link Operation (MLO) for seamless, low-latency connectivity. Its two 180° adjustable antennas and detachable cradle make it easy to place for optimal reception.

Next-Generation Wi-Fi for Your Device

Learn More

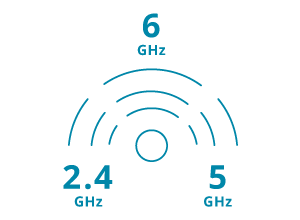

Tri-Band

Multi-Link Operation (MLO)

4K-QAM

Seamless Wi-Fi 7 Experience for Every Use

Powered by Wi-Fi 7 technology, the AE65U delivers ultra-fast speeds1 for even the most demanding tasks. Whether you're gaming, streaming in 4K, transferring large files, or video calling, you’ll enjoy ultra-smooth performance. Instantly upgrade your connection and experience the next level of Wi-Fi.

Online Gaming

Enjoy fast, stable, ultra-low latency internet for seamless online gaming

Video Calling

Maintain crystal-clear video and audio quality during virtual meetings

4K Streaming

Get reliable performance for 4K streaming and large data transfers

Working in the Office

Expand workstation connectivity without complex wired setups

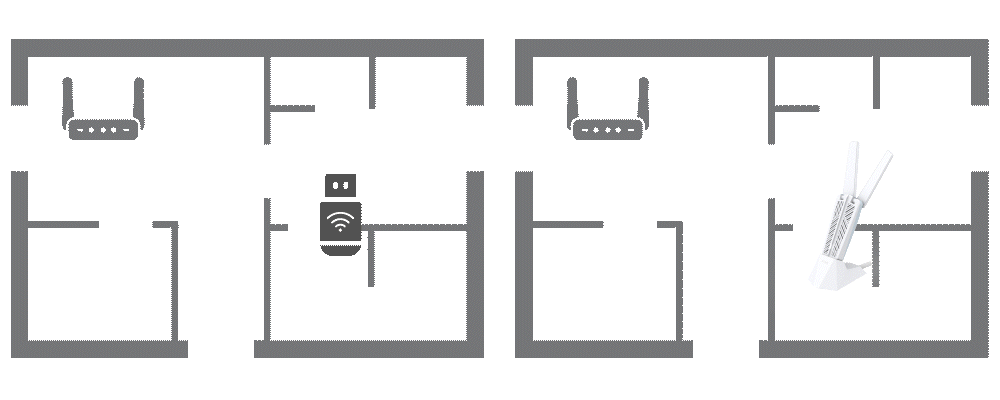

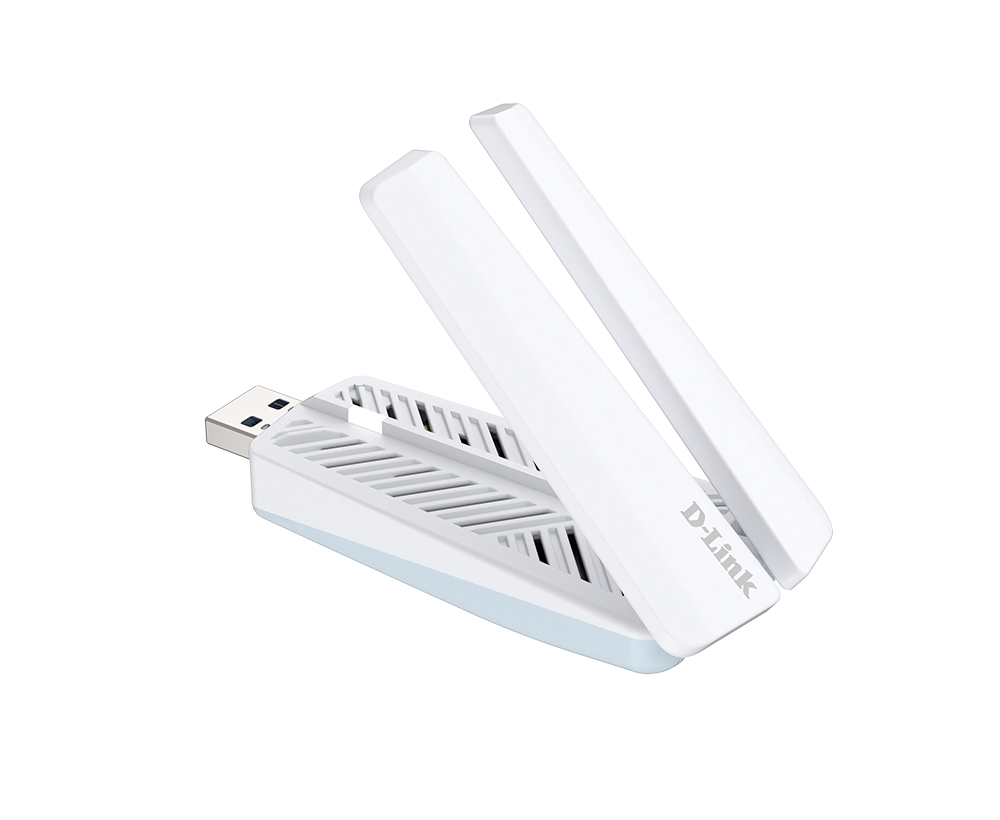

Foldable Antennas for Wider Reception Range

Get wider, stronger coverage with two 180° adjustable antennas and a detachable cradle with extension cable, the AE65U allows flexible placement to maximize signal reception. Easily expand your PC’s Wi-Fi range and stability.

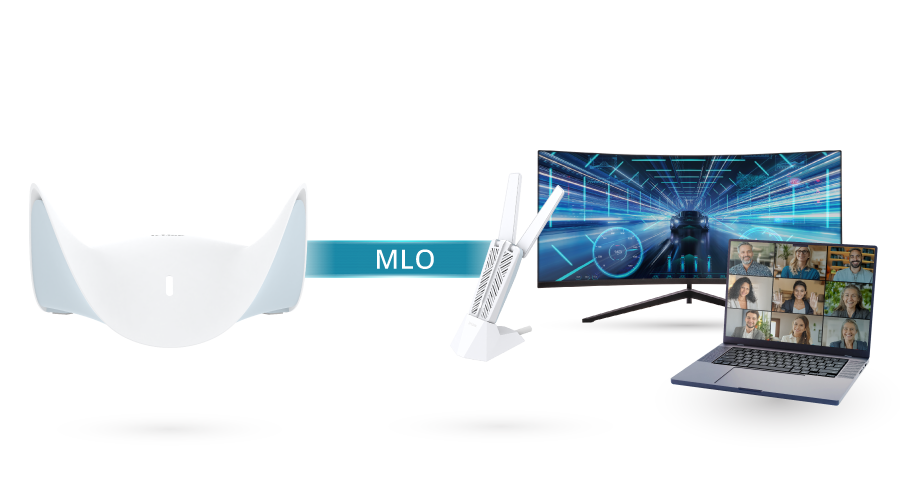

Faster, Smoother, and More Reliable with MLO

The AE65U leverages Wi-Fi 7 Multi-Link Operation (MLO) technology to transmit data across multiple bands simultaneously. This advanced feature boosts overall speed, reduces latency, and improves connection reliability, delivering higher throughput and a smoother online experience across all your devices.

Plug-and-Install Simplicity

Set up the AE65U in seconds. Simply plug it into your USB port and enjoy instant Wi-Fi 7 performance with quick, hassle-free installation with pre-loaded drivers.



*Auto installation driver works with Windows 11/10 operating systems. The use of the 6 GHz band for Wi-Fi 7 requires support from the Windows 11 operating system. Wi-Fi 7 functionality is available on Windows 11 version 24H2 or later.

Maximize Your Internet Performance Instantly

Boost your speed and connectivity for an uninterrupted online experience

Enhanced Network Security

With the latest WPA3™ encryption, the AE65U provides stronger personal data protection and safer connections, giving you peace of mind while enjoying your online activities.

Boost Network Efficiency

Equipped with OFDMA, MU-MIMO, and beamforming technologies, the AE65U enhances your Wi-Fi network by eliminating congestion and boosting efficiency, delivering faster speeds, lower latency, and more reliable performance.

Superfast USB 3.0 Transfer Speeds

Experience up to 10x faster speeds than USB 2.0, boosting data transmission efficiency.2

*Using a USB 1.1 or USB 2.0 port will affect device performance. USB 3.0 port or higher recommended.

Detachable Cradle for Flexible Positioning

The AE65U comes with a detachable cradle and extension cable, giving you the flexibility to position the adapter for maximum coverage and performance, perfect for signal-challenged areas.





1. Maximum wireless signal rates are based on IEEE 802.11be standards. Actual data throughput may vary depending on the specific network environment and conditions.
2. Using a USB 1.1 or USB 2.0 port will affect device performance. USB 3.0 port or higher recommended.

Specs

Download the datasheet.

Antenna
2 x external antennas
Certifications
FCC Class B
CE
IC
Dimensions
86.57 x 36.2 x 17.08 mm (3.41 x 1.43 x 0.67 in)
Standards
IEEE 802.11be/ax (6 GHz)
IEEE 802.11be/ax/ac/n/a (5 GHz)
IEEE 802.11be/ax/n/g/b (2.4 GHz)
Interfaces
USB 3.0 port
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Operating System
Windows 11
Windows 10
Power
Power consumption:
• Standby mode: 125 mA
• Operating mode: 490 mA
Operating voltage: 5V DC+-10%
Storage Humidity
5% to 95% non-condensing
Storage Temperature
-20 to 75˚ C (-4 to 167° F)
Weight
21 g (0.74 oz)
Wireless Encryption
WPA3
WPA2

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
