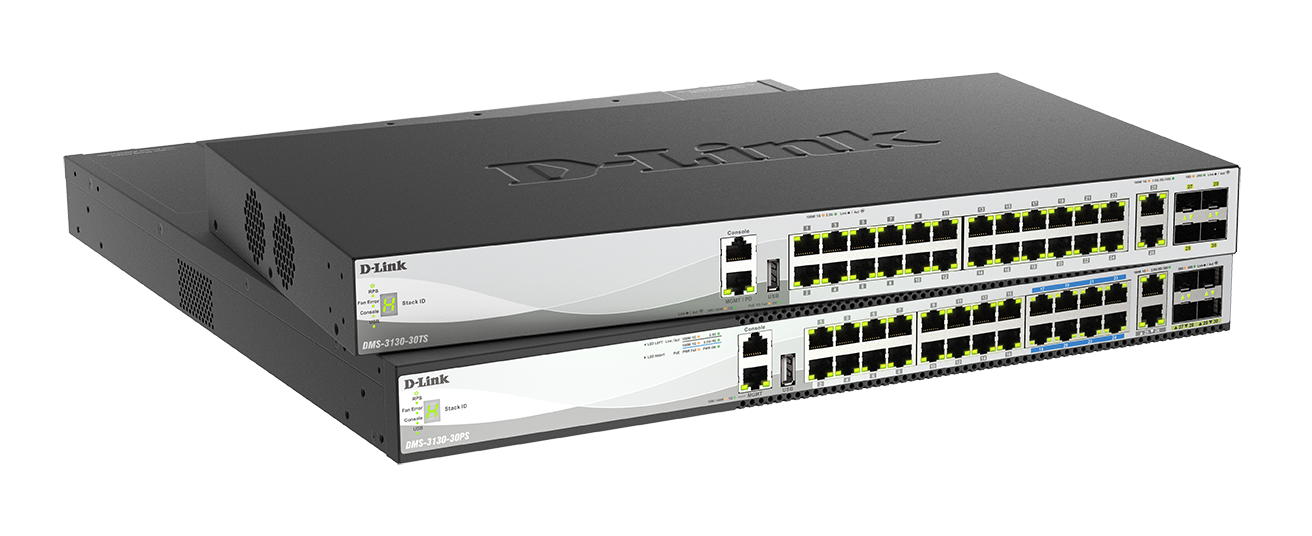

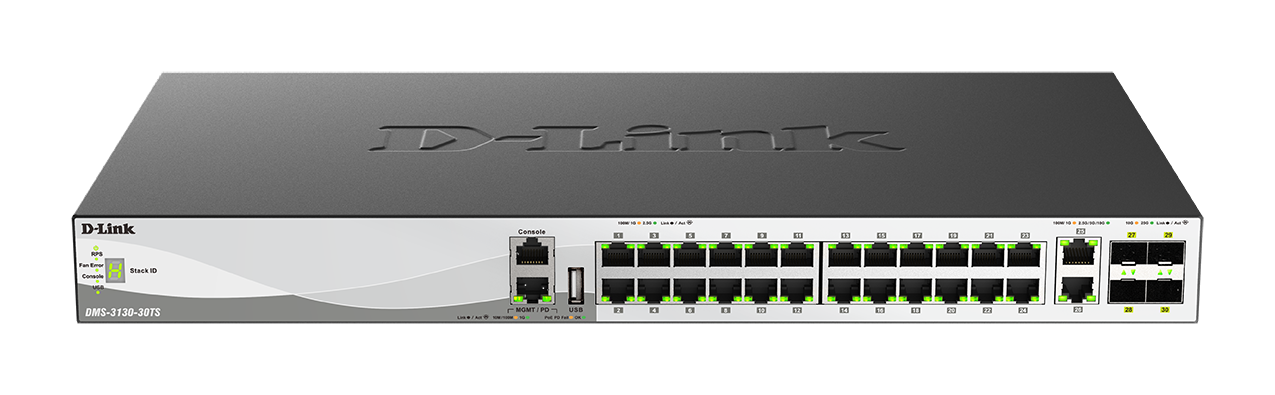

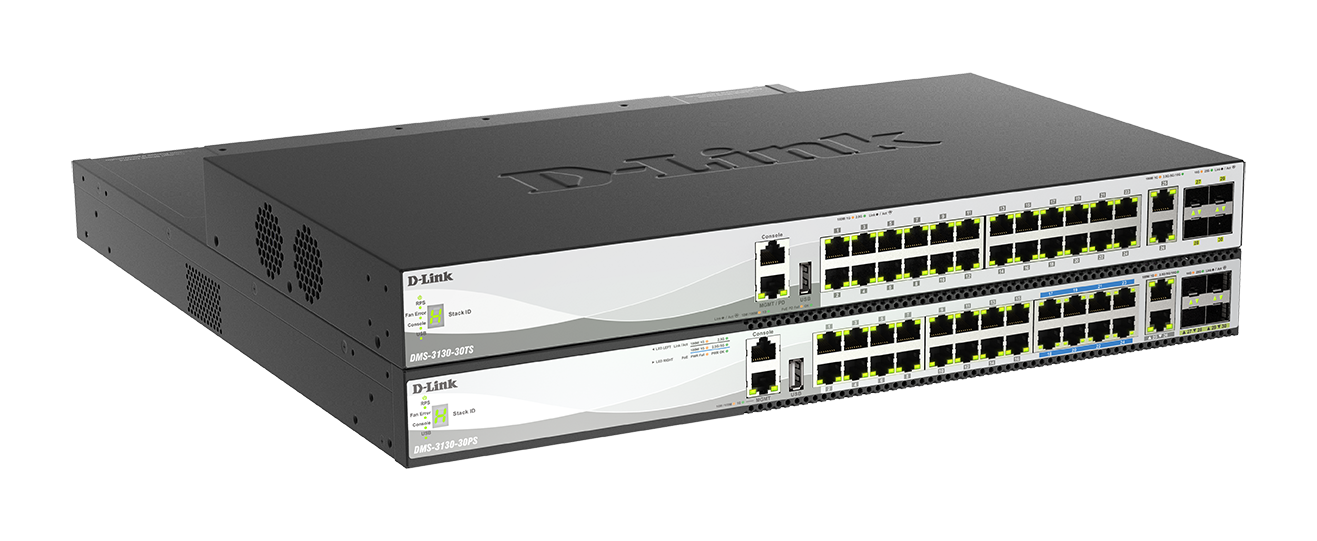

30-portars Stackningsbara Managerade Layer 3 Multi-Gigabit PoE-switchar
DMS-3130-30PS, DMS-3130-30TS
- Product Status (Revision A1): Live
- Stöd för Multi-Gigabit 2,5G/5G/10G/25G
- Stöd för 2,5GBASE-T PoE+ och 5GBASE-T 60W PoE
- 4 st 25G SFP28 upplänksportar
- 6 kV överspänningsskydd på 2,5G/5G-portar
- Switchkapacitet på upp till 400 Gbit/s
- Fysisk stackning av upp till 9 enheter
- Integrerad mjukvaruprofil med kraftfulla Layer 2- och 3-funktioner
- Power over Ethernet (PoE)-alternativ, upp till 740 W med RPS
- QoS och D-Link Safeguard Engine
- Begränsad livstidsgaranti med registrering
Where to buy
Multi-Gigabit 2,5G/5G/10G/25G
Anslut med hastigheter på 2,5G/5G/10G/25G. Använd kopparportar och fyra 25G fiberupplänksportar för att nå längre avstånd
Multi-Gigabit 2,5G PoE+ och 5G PoE++
DMS-3130-30PS har 16 portar för 2,5G PoE+, 8 för 5G 60W PoE++ och stödjer Perpetual PoE och Fast PoE
Fysisk stackning
Upp till 9 enheter per stack för max. 234 multigigabit-portar, upp till 200 Gbit/s stackningsbandbredd. Långdistansstackning över fiber
Layer 2-funktioner
Till exempel flödeskontroll, länkaggregering, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.
Layer 3-funktioner
Inklusive upp till 128 IP-gränssnitt, VRRP, statisk routing, RIPng, OSPF, IGMP och PIM-SM
L2 & L3 Multicasting
IGMP Snooping v1/v2/v3, MLD Snooping, PIM-SM
Statisk routing
Routing av Layer 3-trafik mellan switchar, även om de är segmenterade i VLAN.
Stöd för flera mjukvaru- och konfigurationsprofiler
Riskfri testning av mjukvara och konfiguration.

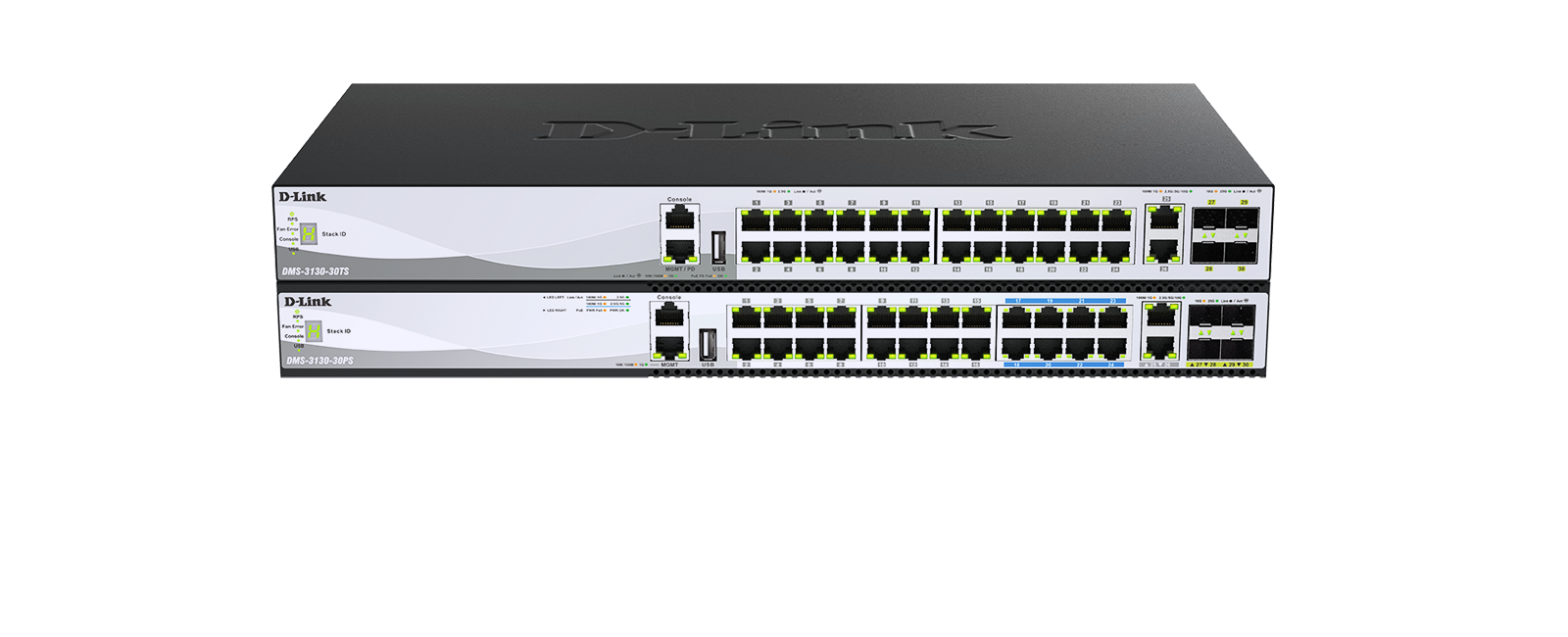

Accelerate your network with Multi-Gigabit Ethernet.
With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

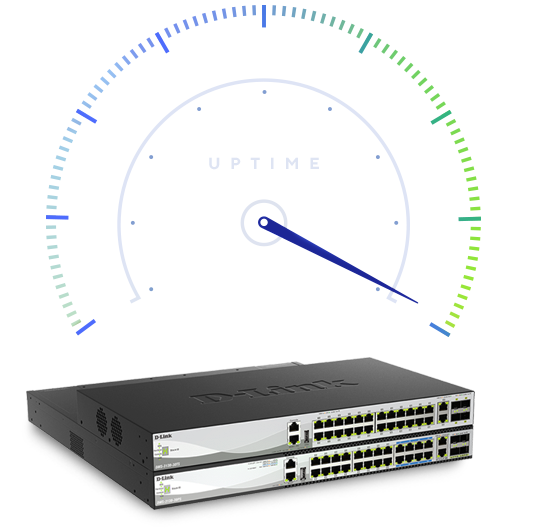

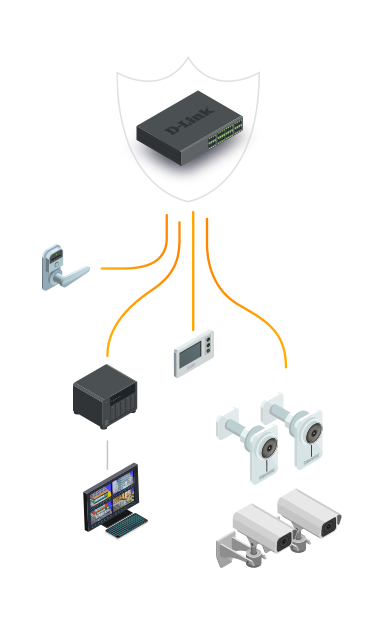

World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.

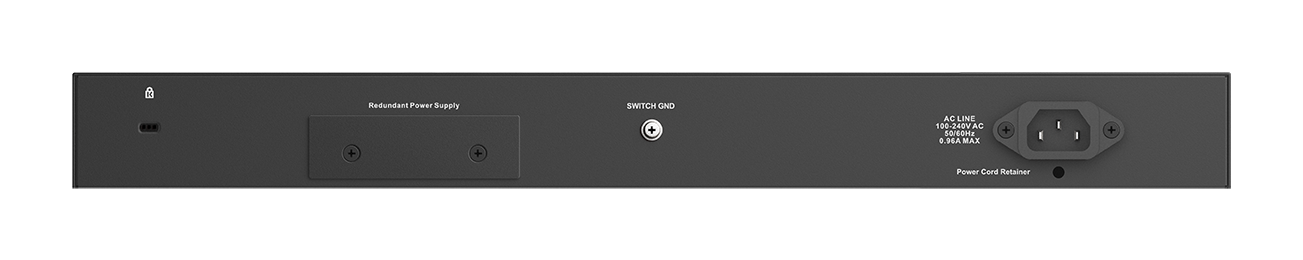

x4 25G SFP28 uplink ports, physical stacking for redundancy, and have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime. DMS-3130-30PS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.
Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Electrical surge protection.
Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.
Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

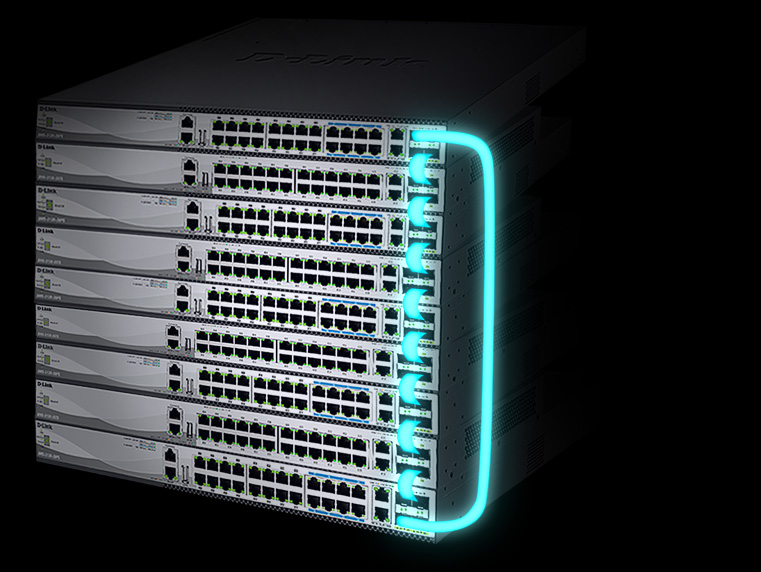

A stack above the competition.
Unlock the full potential of your network infrastructure. Utilise the high switching capacity of up to 400Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.
Versatile traffic management.
The DMS-3130 Series has a rich set of multi-layer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. L2/L3 Multicast support enables your network to handle growing IPTV applications.
Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface, while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and provide better security to the backbone network.

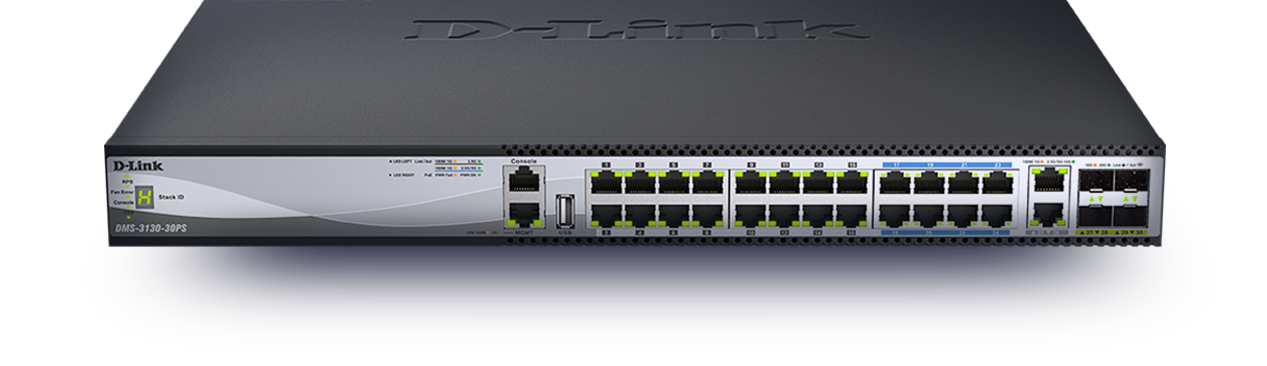

PoE+ /PoE++ with budgets up to 960W
PoE+ /PoE++ with budgets up to 960W DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies.
Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting, or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
Kostnadsfri service nästa arbetsdag
Som standard får du gratis service nästa arbetsdag för att snabbt ersätta felaktig utrustning.
Vår snabba tekniska support är utformad för att ge företag bästa möjliga support för deras unika miljö. Vår förlängda garanti och våra utökade servicepaket ökar garantitiden och minimerar stilleståndstiden ytterligare.
Vi är här för att hjälpa dig
Över 35 år inom nätverksbranschen
Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.
Det är enkelt att prata med oss
Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.
D-Link Begränsad Livstidsgaranti
Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.
Related Products
Specs
|
Type
|
Managed |
|---|---|
|
Number of ports
|
16 to 30 ports |
|
Layer
|
Layer 3 |
|
Stacking
|
Physical Virtual |
|
Main type of ports
|
2.5GBASE-T Ethernet 5GBASE-T Ethernet |
|
Type of uplink ports
|
10GBASE-T 25GbE SFP28 |
|
Switching capacity
|
360 Gbps 400 Gbps |
|
PoE options
|
802.3af 802.3at 802.3bt draft |
|
Number of PoE ports
|
24 |
|
PoE power budget
|
740W 960W with DPS-PWR740AC |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Physical stacking
|
Up to 9 devices |
|
Virtual stacking (up to 32 devices)
|
Supported
|
|
Jumbo frame
|
Supported
|
|
MAC address
|
32K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Link aggregation
|
802.1AX 802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
MAC-based Port-based Protocol-based GVRP |
|
Advanced VLAN
|
Auto Surveillance VLAN Asymmetric VLAN Double VLAN (Q-in-Q) ISM VLAN Super VLAN Voice VLAN |
|
IPv4/IPv6 routing table
|
IPv4 - 1K IPv6 - 512 |
|
IPv4/IPv6 forwarding table
|
IPv4 - 4K IPv6 - 2K |
|
IP interfaces
|
128 |
|
Static route for IPv4/IPv6
|
IPv4 - 512 IPv6 - 256 |
|
Multicasting
|
Supported
|
|
PIM-SM
|
Supported
|
|
RIP v1/v2
|
Supported
|
|
RIPng
|
Supported
|
|
OSPF
|
Supported
|
|
OSPFv3
|
Supported
|
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
8 Kbps minimum granularity |
|
Port-based QoS
|
Supported
|
|
Three colour marker
|
8 Kbps minimum granularity |
|
ACL type
|
Egress Ingress VLAN-based |
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1/v2
|
Supported
|
|
sFlow
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
802.3ah
|
Supported
|
|
802.1ag
|
Supported
|
|
ITU-T Y.1731
|
Supported
|
