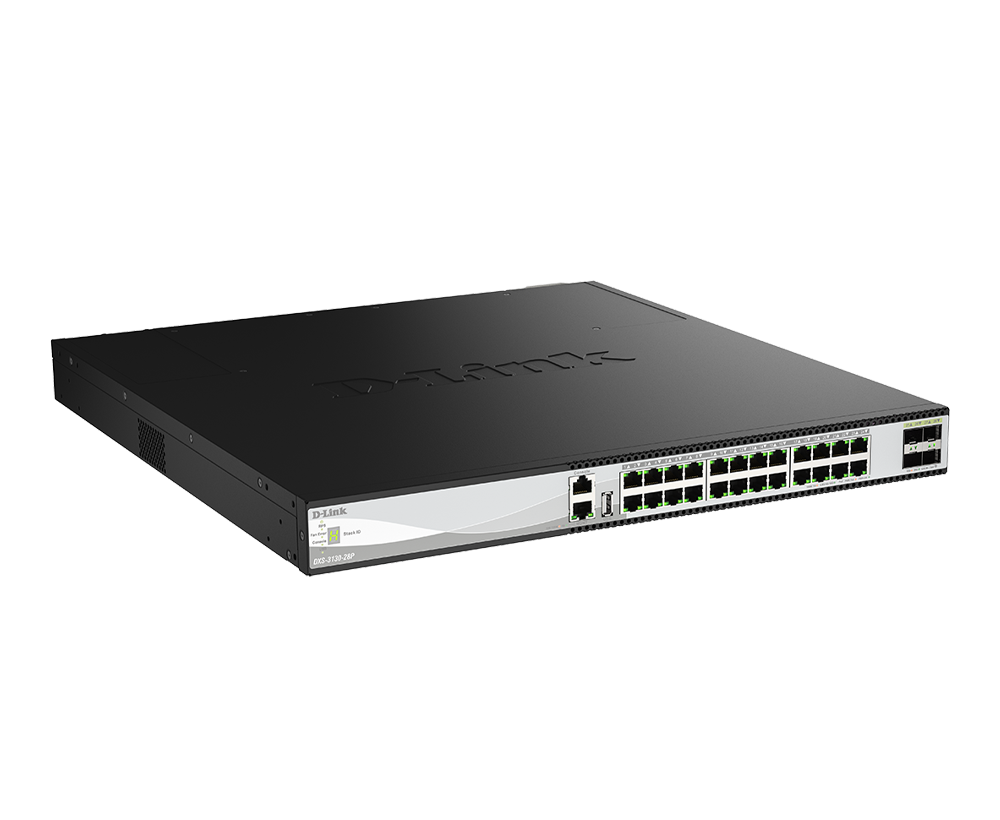

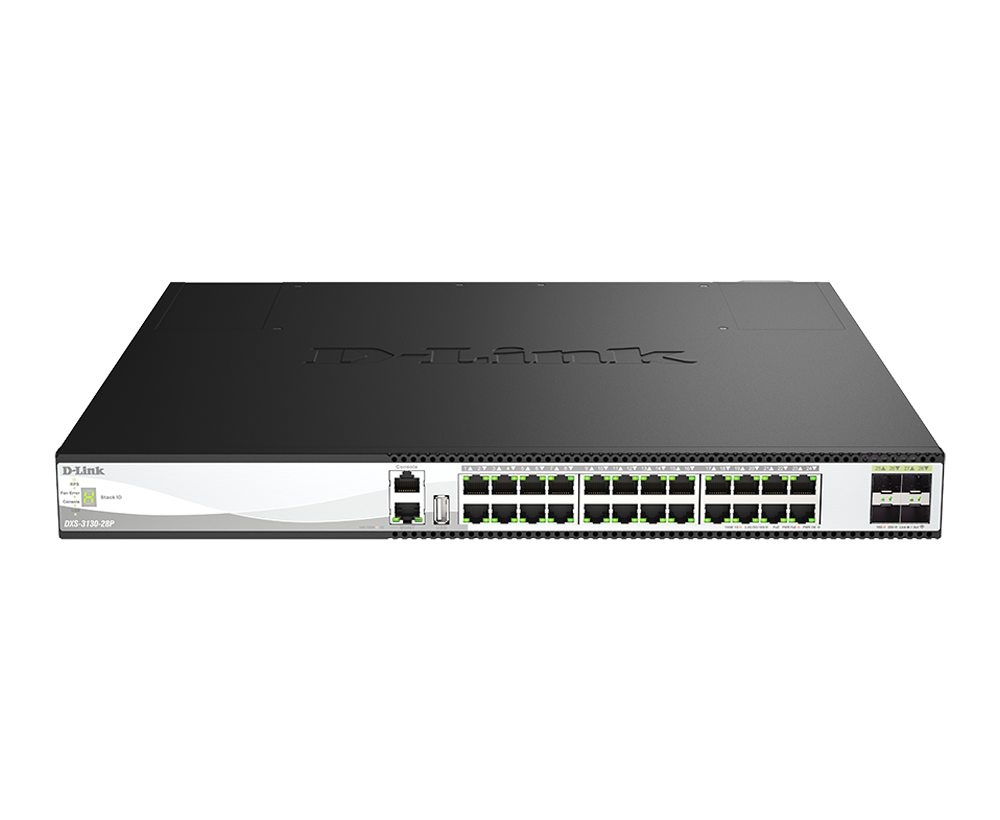

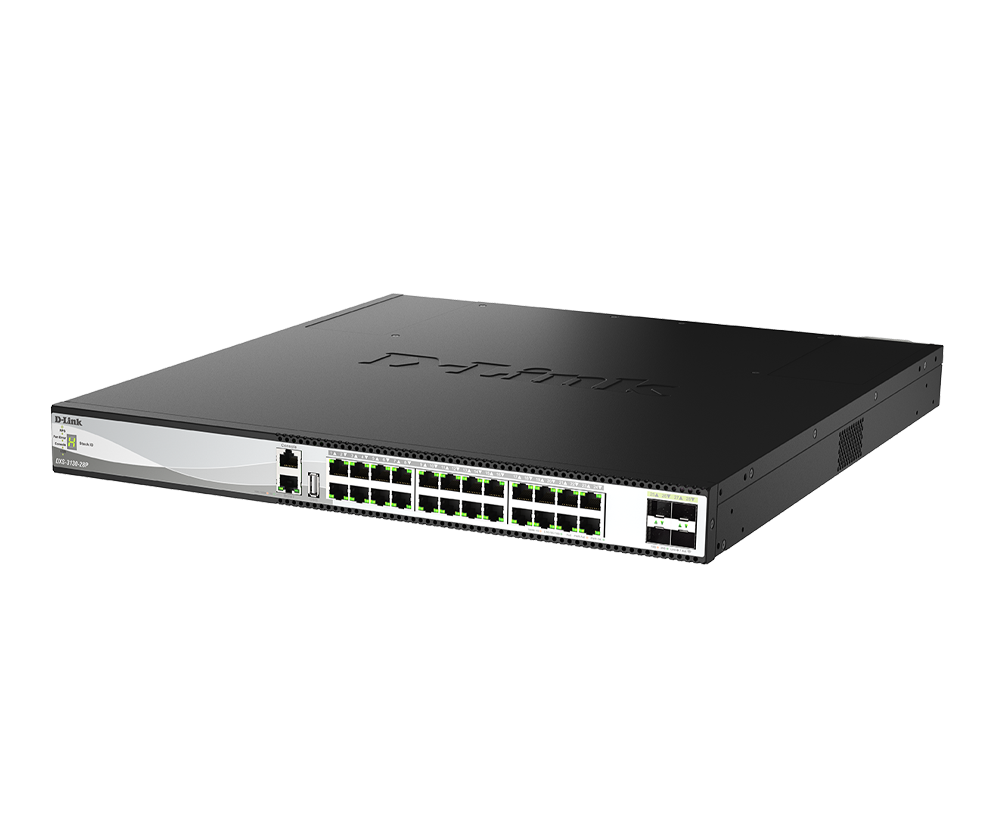

24-Port 10G Layer 3 Stackable Managed PoE Switch
DXS-3130-28P
- Product Status (Revision A): Live
- 24 Ports 10G/multi-Gigabit for downlink
- 4 Ports 10/25G SFP28 for uplink
- PoE IEEE802.3af/at/bt options, power budget 790 W
- 6kV surge protection on 10G Ethernet ports
- Physical stack of up to 9 units via four 25G ports
- 200 Gbps per-device physical stacking bandwidth
- RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
- IEEE 802.1ag for Connectivity Fault Management
- Green features for reduced power consumption
- Manage through the Nuclias Network Controller
Where to buy
User Benefits
Versatile Traffic Management
Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency
High-Power PoE
24 PoE ports support up to 60 W each, with a 790 W budget expandable to 1440 W—ideal for 10G PoE devices

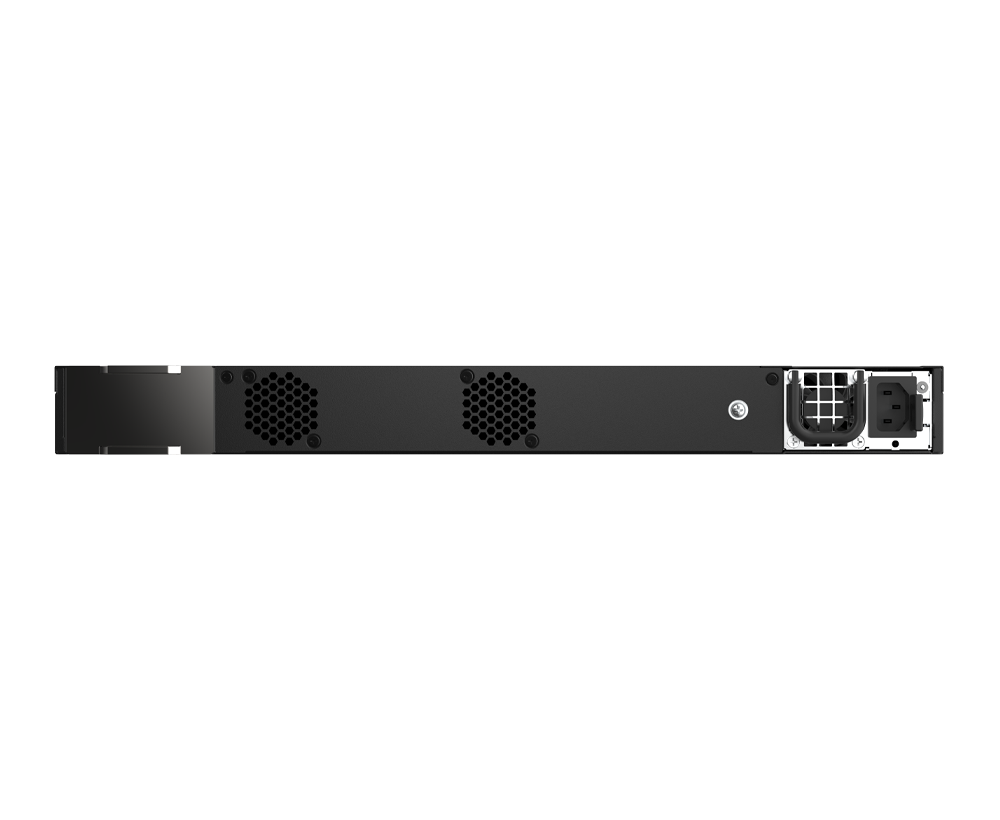

Boosted Network Reliability
Two hot-swappable power modules enable 1+1 redundancy and load sharing for uninterrupted power and reliability
Advanced Security for Access
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment
High Availability and Scalability
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy
Efficient Layer 3 Routing
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination
High-Speed Versatile Switching
Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

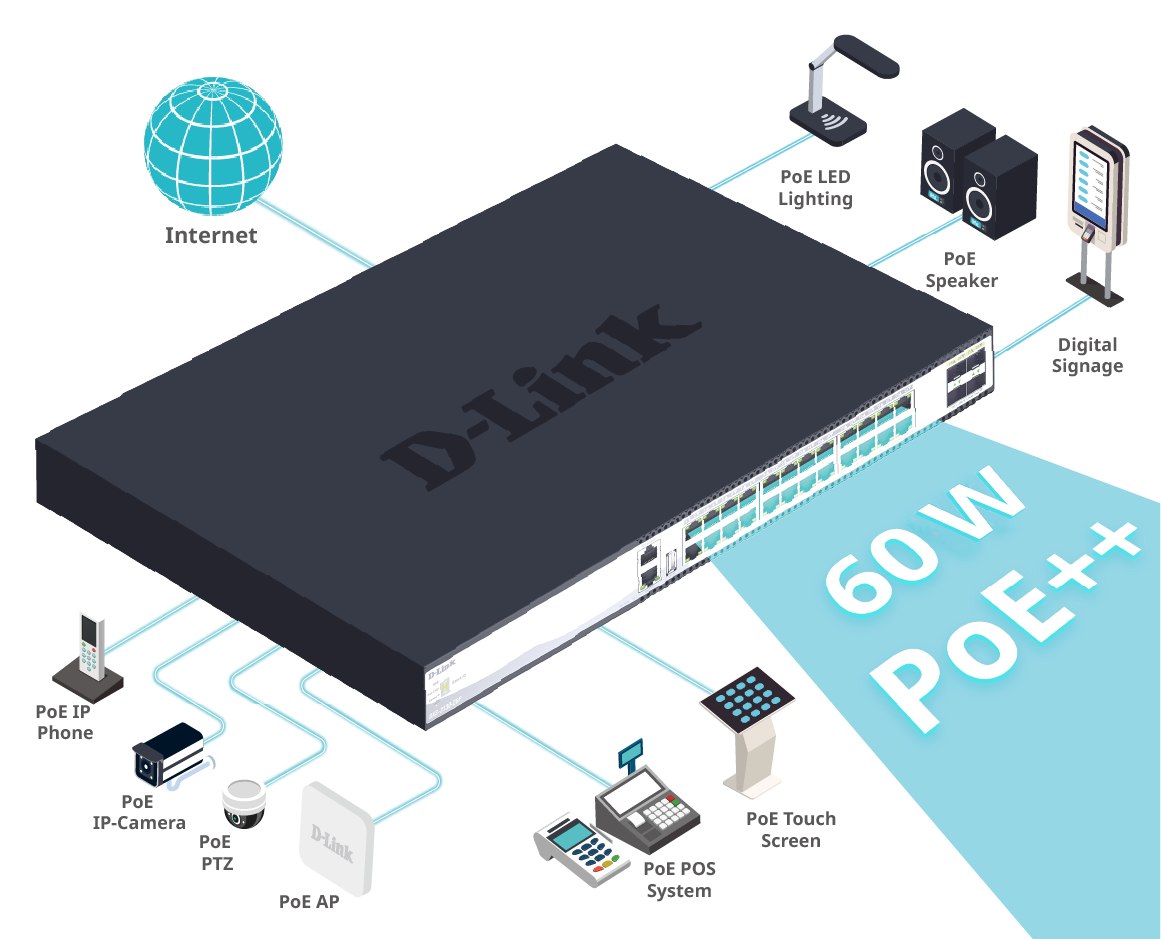

Power You Can Rely On
The DXS-3130-28P supports 802.3af/at/bt PoE standards, delivering up to 60 W per port with Perpetual and Fast PoE.
The DXS-3130-28P offers a 790 W PoE budget, expandable to 1440 W with dual power supplies powering more devices with ease.
PoE enables simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring.
Perpetual PoE
Maintains power to connected devices during Power Sourcing Equipment (PSE) switch reboots
Fast PoE
Delivers power to connected devices quickly, without waiting for the switch operating system to fully boot
PD-Alive
PD-Alive auto-reboots unresponsive IP devices to ensure continuous operation and monitors their status

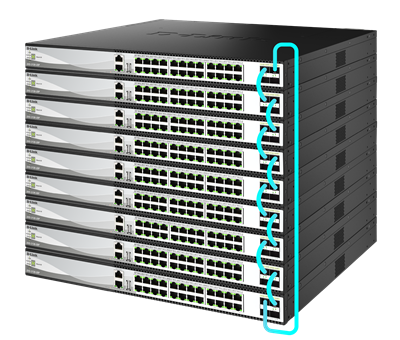

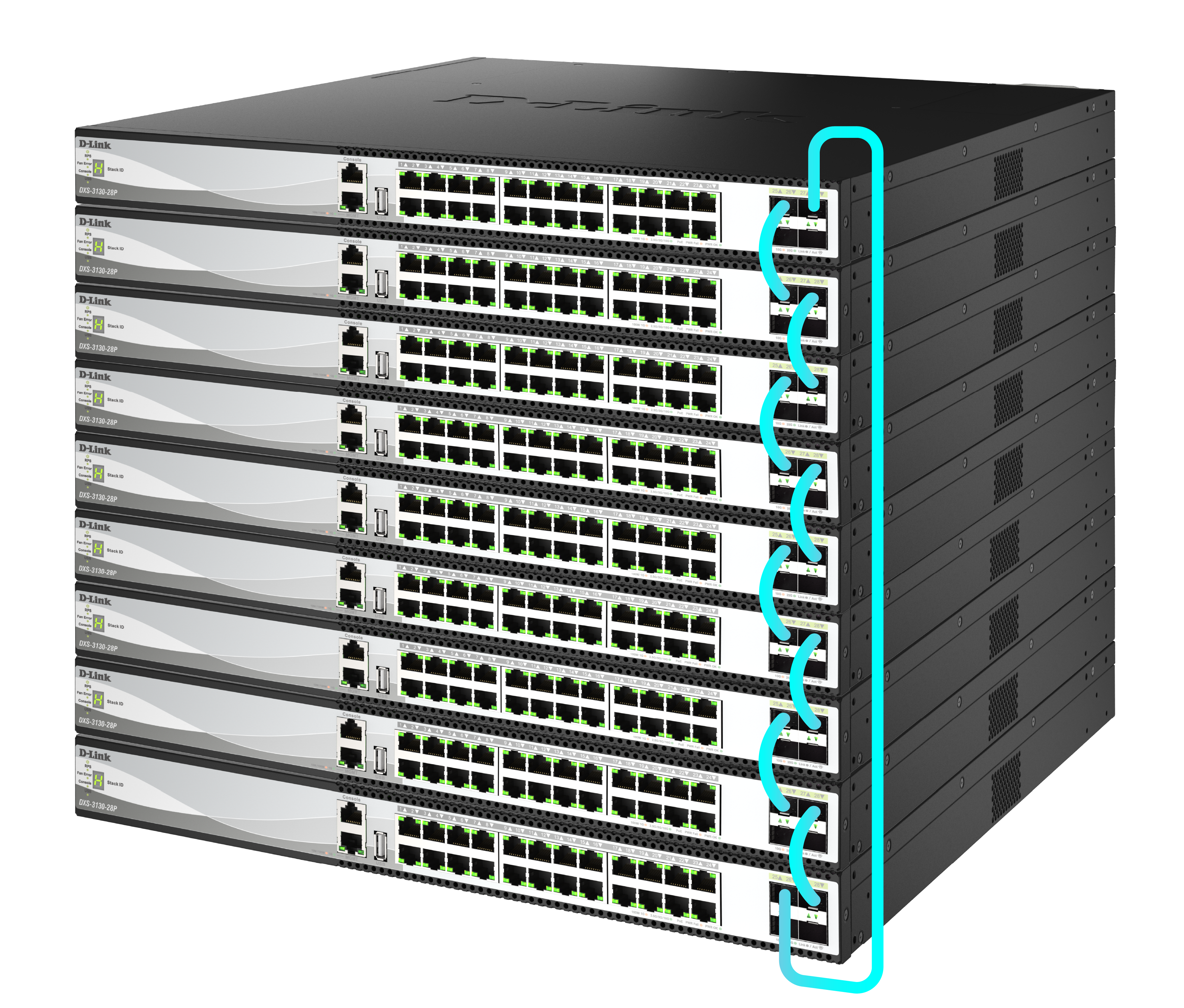

Unified the Power, Stack for Success
Scale your network with the DXS-3130-28P by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

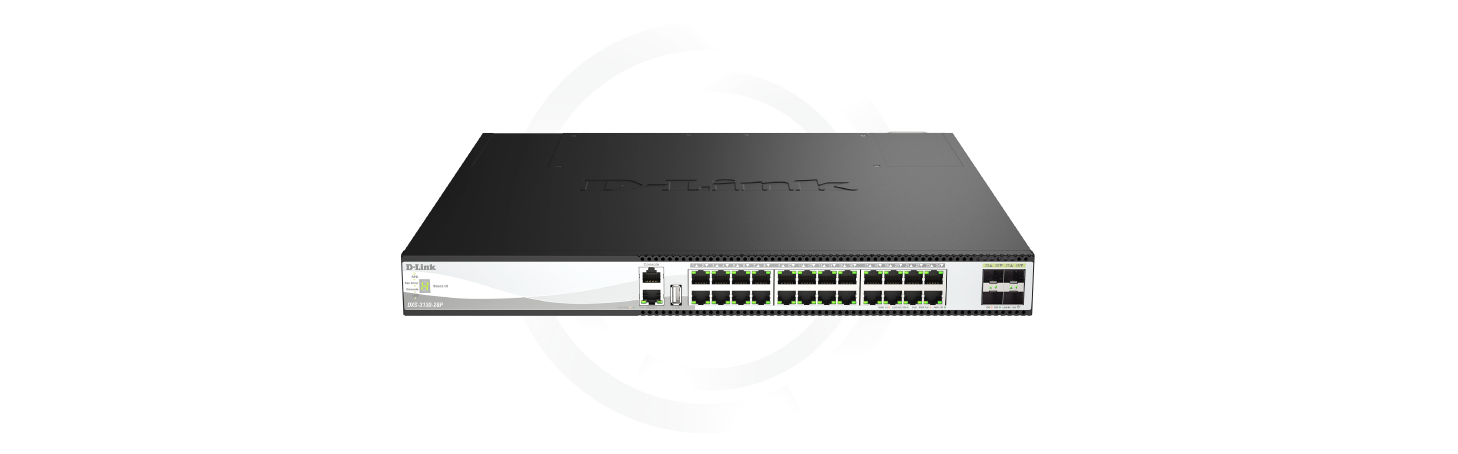

Built for Unbreakable Networks
The DXS-3130-28P ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-28P switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Advanced QoS/CoS
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications
IGMP/MLD Snooping
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency
ISM VLAN
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
Related Products
Bästa valet för SOHO, SMB och MDU
Switcharna i DMS-1250-serien är mångsidiga och lämpliga för SOHO-, SMB- och MDU-miljöer. De ger blixtsnabb dataöverföring med 2,5GE och en viktig 10G-upplänk för extern anslutning. Denna blixtsnabba uppkoppling säkerställer att hela MDU:n kan komma åt externa tjänster utan att stöta på flaskhalsar i dataflödet. Dessutom implementerar de effektivt IEEE 802.3at eller IEEE 802-3bt i DMS-1250-10SP, 10SPL och 12TP för att göra det möjligt för enheter att ansluta och ta emot strömförsörjning.
Office (Enterprise)
Jämförelse av switchar i DMS-1250-serien
 DMS-1250-10S |  DMS-1250-10SPL |  DMS-1250-10SP |  DMS-1250-12TP | |
|---|---|---|---|---|
| Gränssnitt | 8 x 2,5GE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Prestanda | ||||
| Switchkapacitet | 80 Gbit/s | 80 Gbit/s | 80 Gbit/s | 120 Gbit/s |
| Max. paketöverföringshastighet | 59,53 Mpps | 59,53 Mpps | 59,53 Mpps | 89,29 Gbit/s |
| PoE (Power-over-Ethernet) | ||||
| PoE-standard | N/A | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| PoE-portar | N/A |
Port 1 ~ 2 (IEEE802.3bt) Port 3 ~ 8 (IEEE802.3af/at) | Port 1 ~ 8 | Port 1 ~ 8 |
| PoE-budget | N/A | 120 W | 240 W | 240 W |
| Tekniska specifikationer | ||||
| Överspänningsskydd | ・Godkänd för IEEE61000-4-5 överspänningsskydd ・6 kV överspänningsskydd på alla 2,5-Gigabits Ethernet-portar | |||
| Högsta elförbrukning | 13,58 W | 147 W (PoE på) | 287,58 W (PoE på) | 289,74 W (PoE på) |
| Fläkt | Fläktlös | Fläktlös | 2 inbyggda fläktar | 2 inbyggda fläktar |
| Konsolport | Ja | Nej | Ja | Ja |
| Typ av strömförsörjning | Internt | Externt | Internt | Internt |

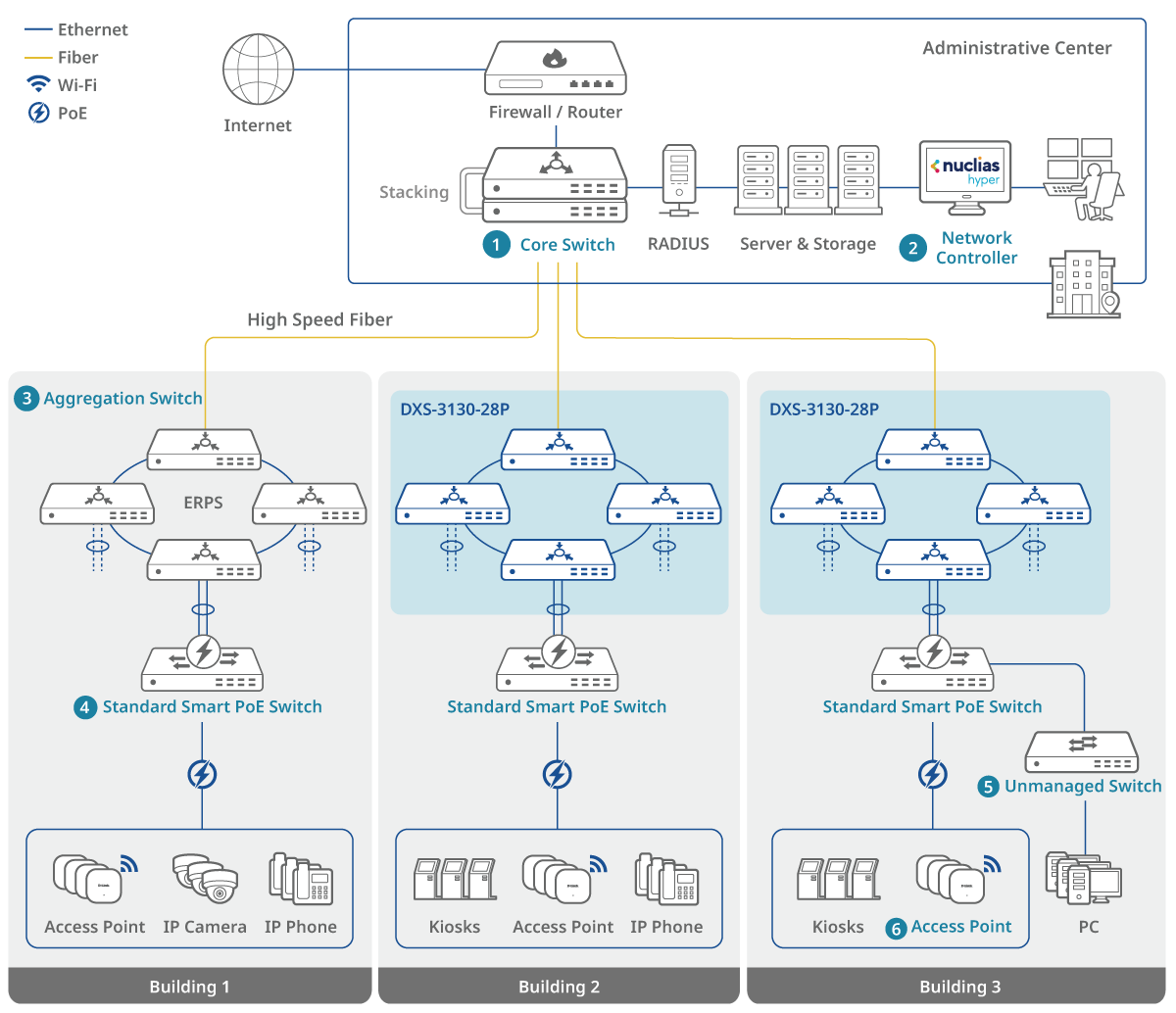

High-Rise Community (Buildings)
Jämförelse av switchar i DMS-1250-serien
DMS-1250-10S | DMS-1250-10SPL | DMS-1250-10SP | DMS-1250-12TP | |
|---|---|---|---|---|
| Gränssnitt | 8 x 2,5GE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Prestanda | ||||
| Switchkapacitet | 80 Gbit/s | 80 Gbit/s | 80 Gbit/s | 120 Gbit/s |
| Max. paketöverföringshastighet | 59,53 Mpps | 59,53 Mpps | 59,53 Mpps | 89,29 Gbit/s |
| PoE (Power-over-Ethernet) | ||||
| PoE-standard | N/A | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| PoE-portar | N/A |
Port 1 ~ 2 (IEEE802.3bt) Port 3 ~ 8 (IEEE802.3af/at) | Port 1 ~ 8 | Port 1 ~ 8 |
| PoE-budget | N/A | 120 W | 240 W | 240 W |
| Tekniska specifikationer | ||||
| Överspänningsskydd | ・Godkänd för IEEE61000-4-5 överspänningsskydd ・6 kV överspänningsskydd på alla 2,5-Gigabits Ethernet-portar | |||
| Högsta elförbrukning | 13,58 W | 147 W (PoE på) | 287,58 W (PoE på) | 289,74 W (PoE på) |
| Fläkt | Fläktlös | Fläktlös | 2 inbyggda fläktar | 2 inbyggda fläktar |
| Konsolport | Ja | Nej | Ja | Ja |
| Typ av strömförsörjning | Internt | Externt | Internt | Internt |
Specs
|
Interfaces
|
24 x 10GE PoE++ 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
680 Gbps |
|
Max. Packet Forwarding Rate
|
505.92 Mpps |
|
PoE Standards
|
IEEE 802.3af/at/bt |
|
PoE Power Budget
|
790 W |
|
Max Power Consumption
|
1008.1 W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
Weight
|
6.48 kg (14.29 lbs) |
|
Surge Protection
|
IEC61000-4-5 6kV surge protection on all Ethernet ports |
|
FAN
|
2 x Smart fans |
|
Operating Temperature
|
0 - 50 °C (32 - 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Yes |
|
Power Supply Type
|
Internal |
