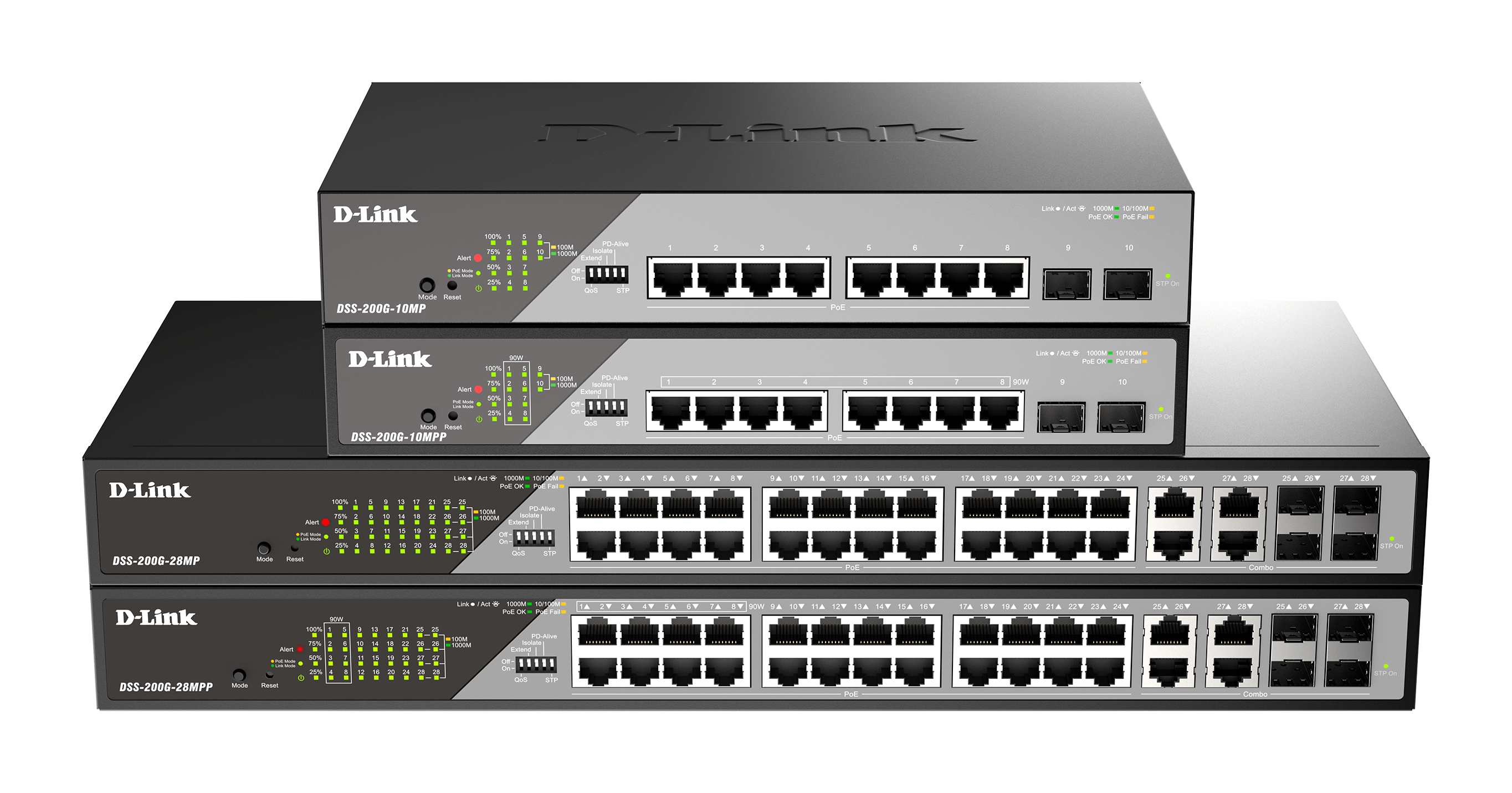

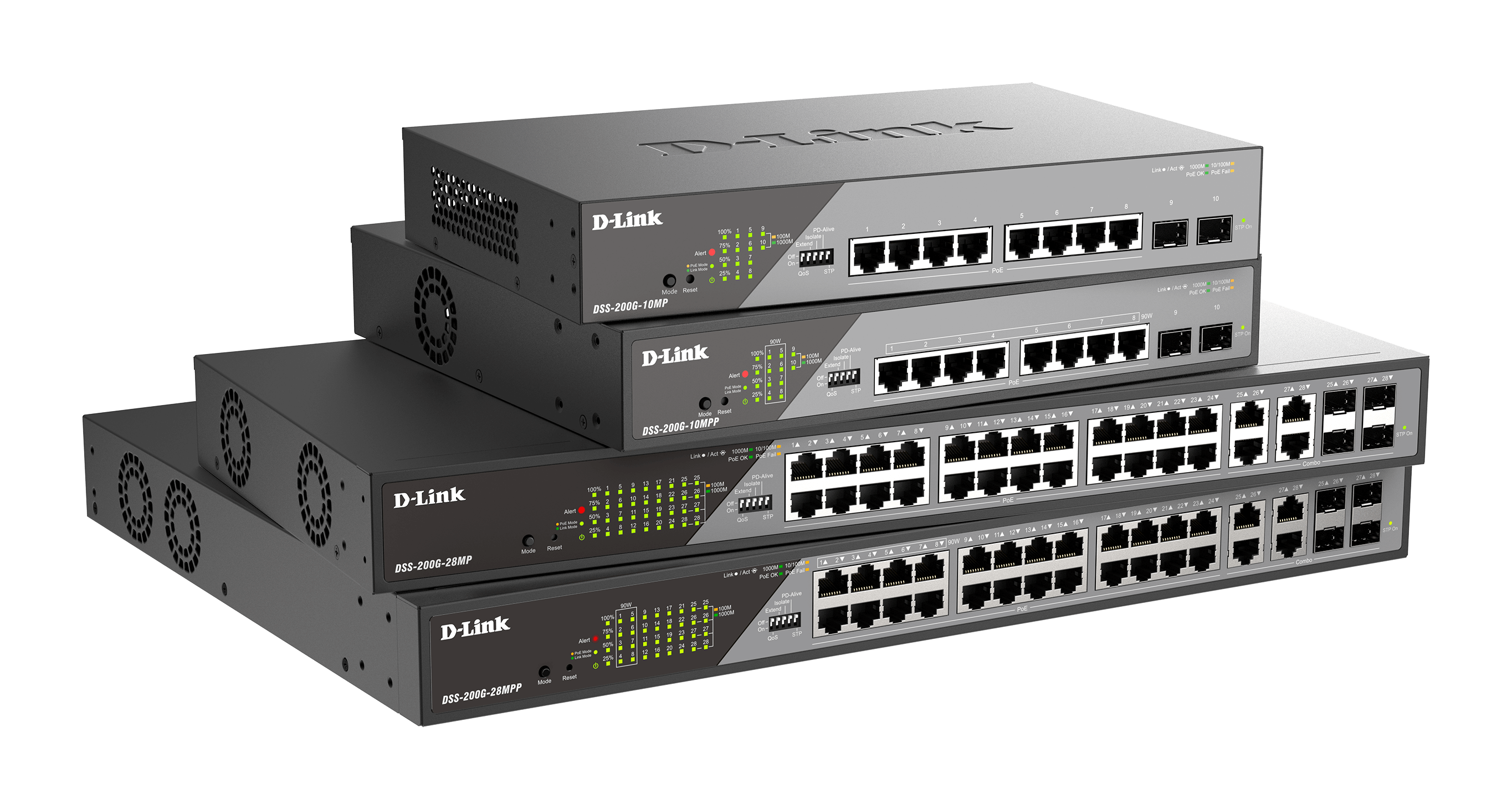

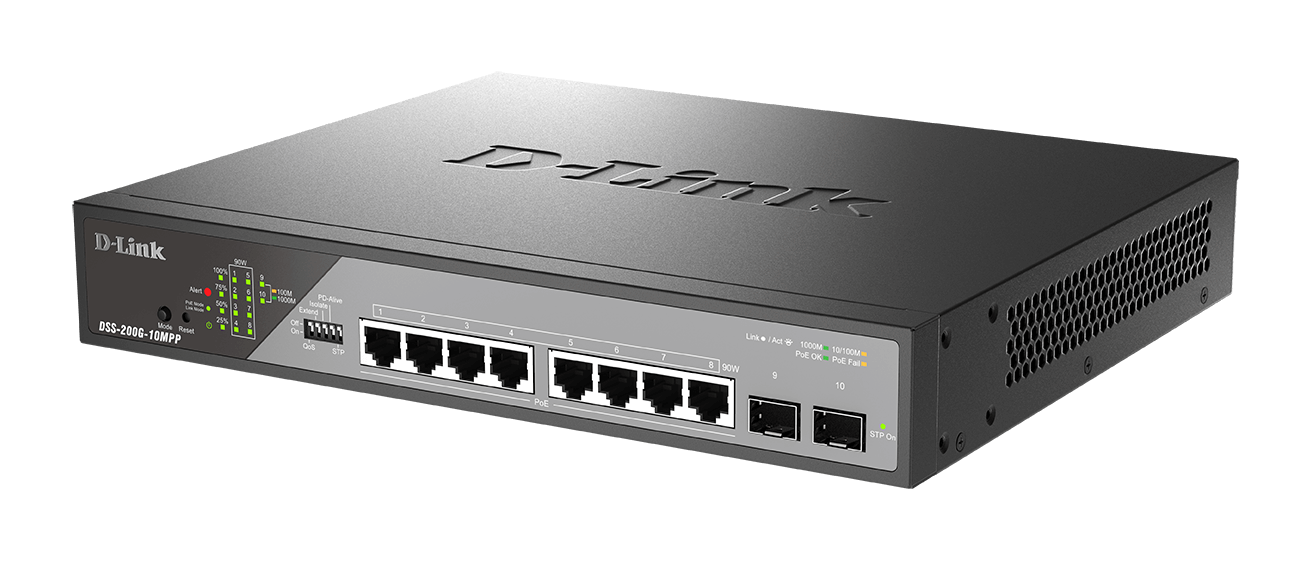

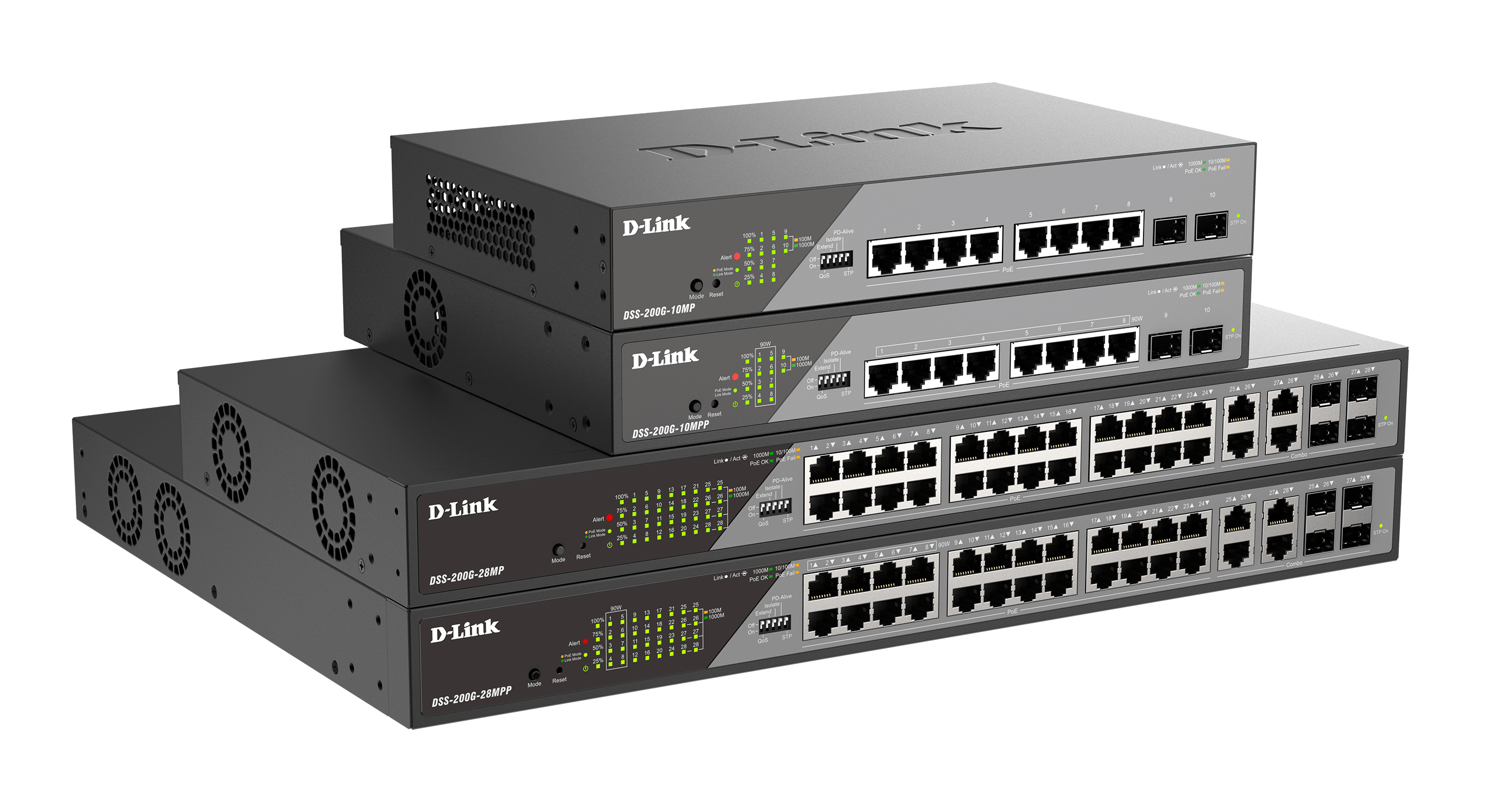

Gigabit PoE Smart Surveillance Switches

DSS-200G Series

  • Product Status (Revision A1): Live
  • Gigabit Ethernet PoE
  • PoE & PoE++ with up to 518W power budget
  • Deploy IP cameras at up to 250m
  • DIP Switch for quick controls
  • 6kV Surge Protection on all PoE ports

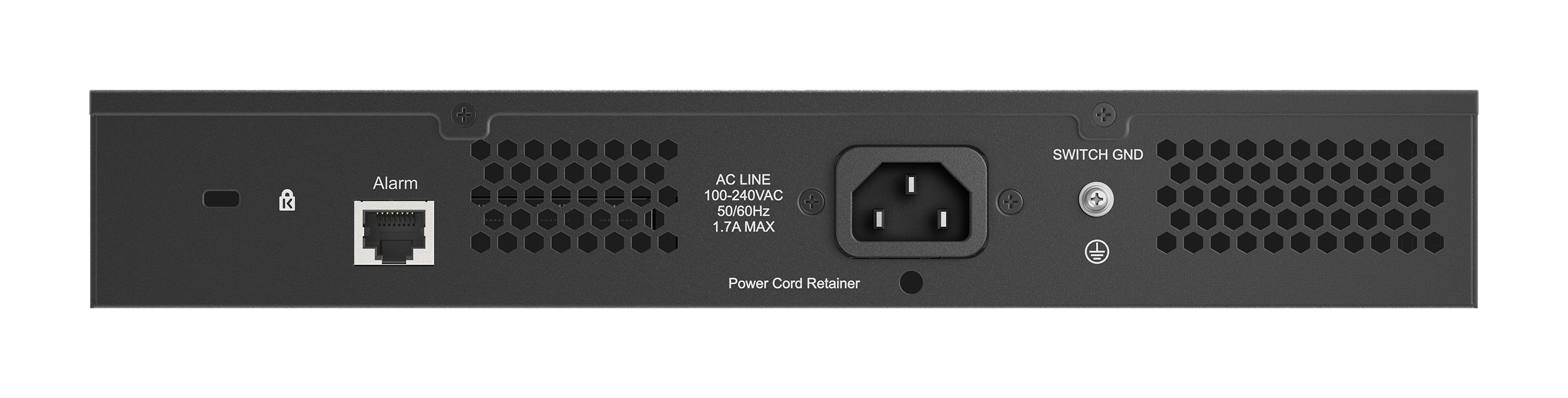

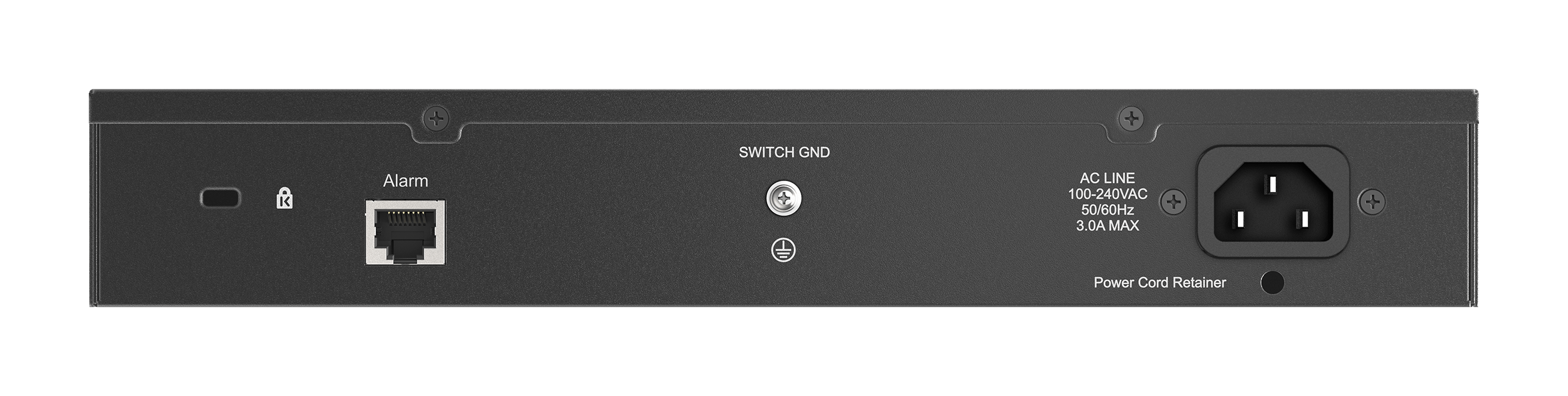

  • Alarm Port and four-stage PoE usage indicator light
  • Layer 2 Management Features
  • Auto-Detects ONVIF devices
  • Built-in SNMP MIB
  • Web-based GUI
  • 5-Year D-Link Warranty

Download the datasheet.

Where to buy

Built for Surveillance,
with Gigabit Ethernet & PoE++

Designed to meet surveillance requirements for businesses of all sizes, with features like support for high-powered PTZ cameras, high PoE budgets, Auto Surveillance VLAN, and surge protection, these switches are ideal for IP surveillance setups.

Long Range PoE Delivery

Connect and power cameras up to 250 metres away without the need for additional PoE extenders.

Power Your Devices

Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.

Reliable PoE Connections

Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.

High PoE power budgets

Built-in PoE usage indicator LEDs. High PoE budgets of up to 518W and support for 802.3bt 90W PoE1

Built for surveillance

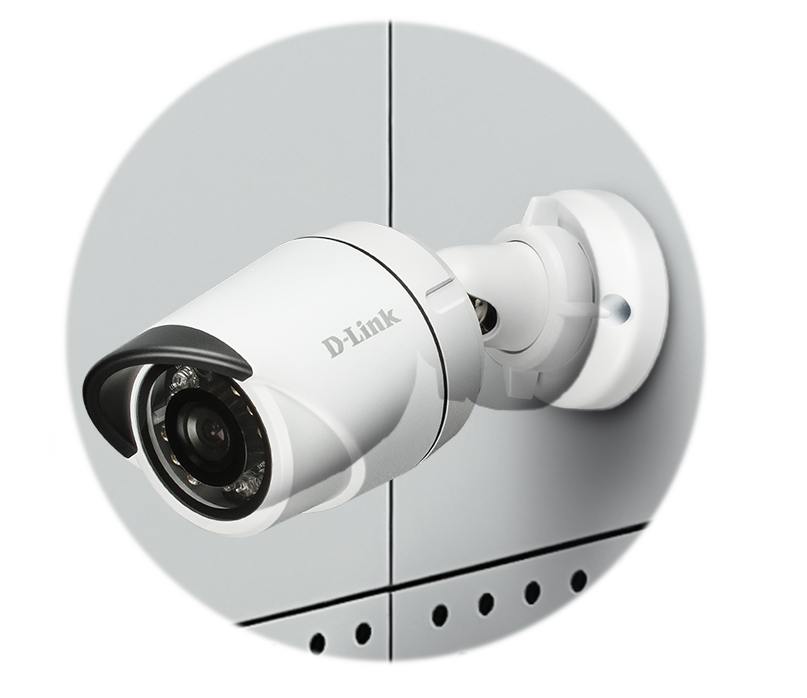

Auto-detects connected IP cameras in Surveillance Mode and generates a topology

Gigabit Uplink Ports

Gigabit Ethernet PoE and fibre uplinks with up to 56 Gbps switching capacity for connections to NVR or servers

Easy deployment with automatic configuration

Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration

Rapid deployments with a single PoE cable.

The series supports PoE, and some provide higher power PoE++, delivering up to 90 watts on selected ports, enabling faster deployment of PoE devices such as IP cameras, VoIP phones, access points, terminals, speakers, lights, conferencing systems, displays, and more.

Reach further with a flick of a switch.

The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS, Extend (connection by up to 250 metres), Port Isolation, PD-Alive and STP (Spanning Tree Protocol) in an instant.

Protects the network against power surges.

6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation, ERPS and STP support to make your network more robust and resilient.

Connect to more with PoE++

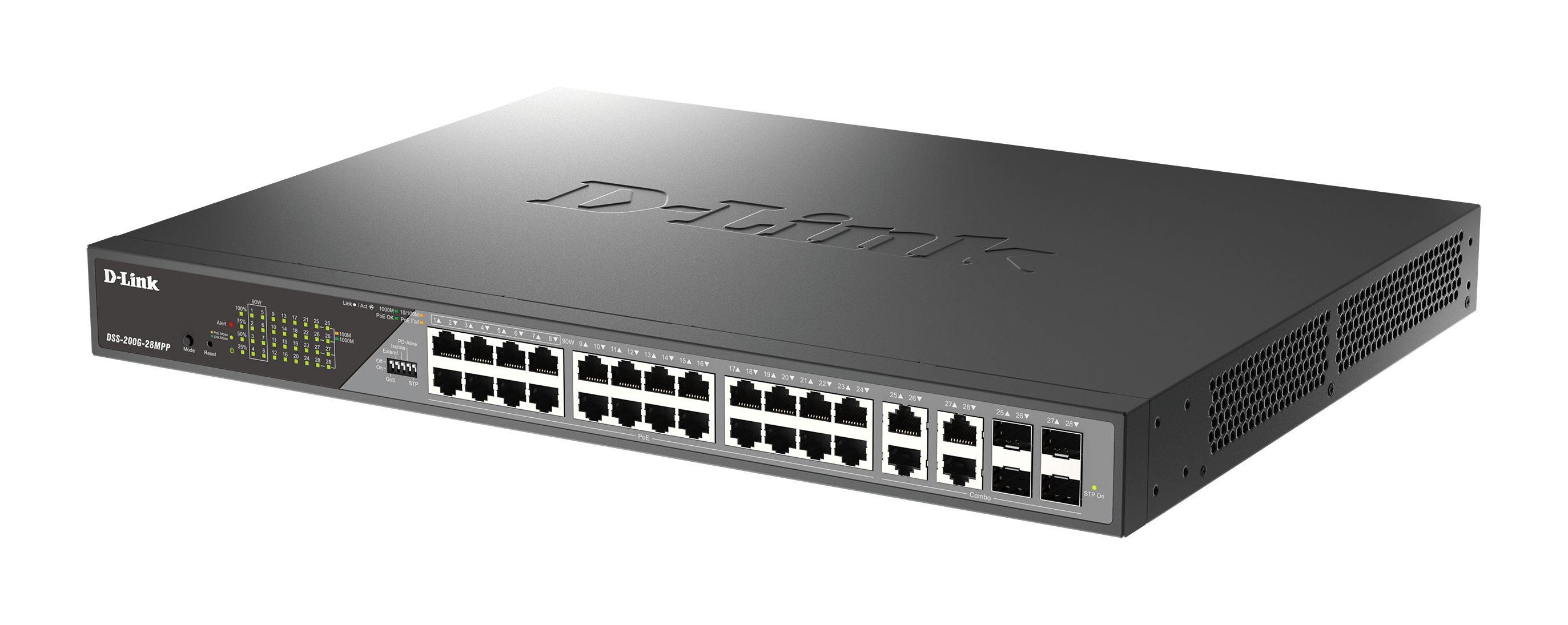

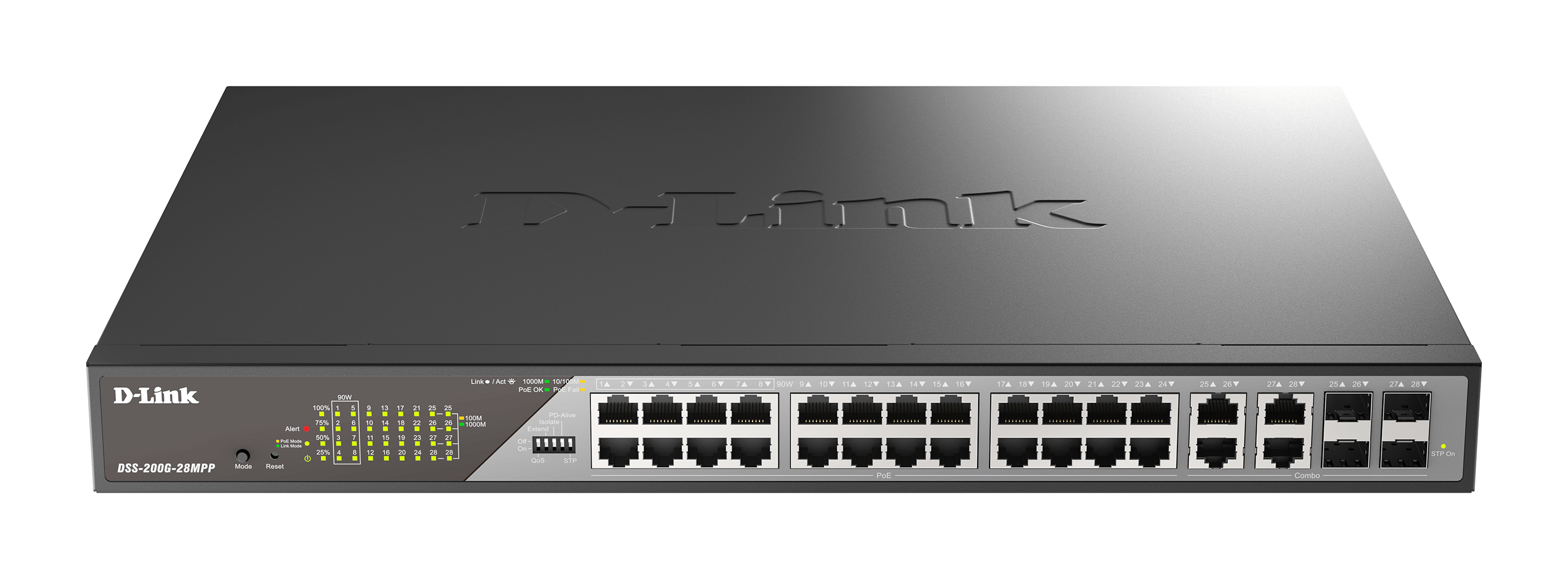

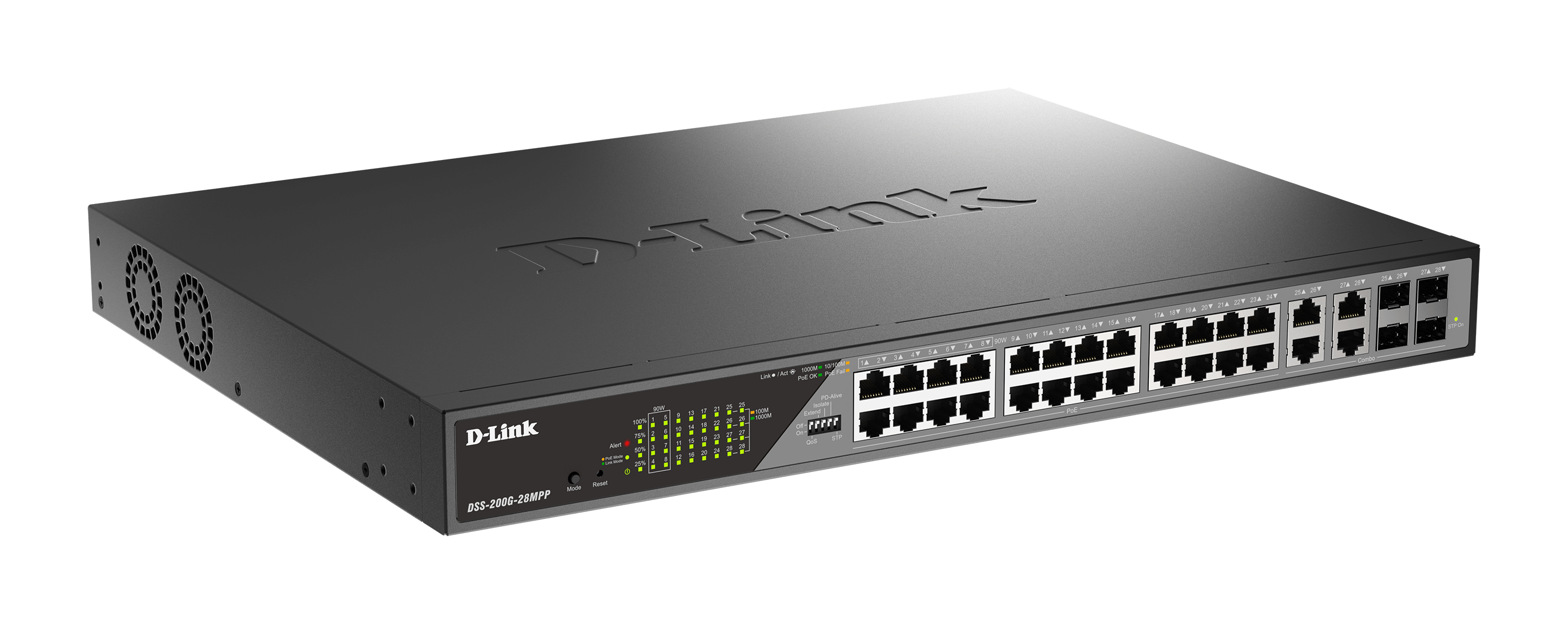

See your remaining power availability with the built-in PoE Power Budget LEDs for 25%, 50%, 75%, and 100% power usage at a glance. And utilise up to 518W, with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP, so you can rapidly deploy more devices.

Layer 2 management features.

 Comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.

Quality of Service and bandwidth control.

Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.

Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, sparing businesses the expense of dedicated hardware and facilities.

Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

5‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

1The 250m long range mode is subject to cabling quality and/or IP camera’s electrical design. Compatibility testing is recommended prior to use. UTP CAT5e rated cables (or higher) are required.

Type
Smart managed
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP
SFP
Switching capacity
20 Gbps
PoE options
802.3af
802.3at
802.3bt draft
Long Range PoE (up to 250m)
Long range PoE
Supported
Number of PoE ports
24
8
PoE power budget
See datasheet
See datasheet
See datasheet
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
8K
Spanning Tree Protocol
802.1D STP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
128
VLAN type
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
4
Bandwidth control
16 Kbps minimum granularity
Encryption protocol supported
SSL (v1/v2/v3)
Version Date Type File Size
Datasheet EN - PDF 1.22mb Download
Version Description Date Type File Size
Manual 1.02 RevA1 Product Manual 2. 11. 2023 - - Download
