BE11000三頻PoE無線基地台

DAP-E9560

  • Product Status (v110 WW): Live
  • Wi-Fi 7 BE11000 三頻高速連接
  • 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit 連接埠
  • 採用 802.3bt PoE 供電，USB-C 連接口
  • 最大支援頻道頻寬 (320MHz)
  • 4096-QAM – 速度比 Wi-Fi 6 快 20%
  • 靈活使用多種運作模式
  • WPA3 加密增強 Wi-Fi 安全性
  • 可自訂使用者存取的Captive Portal
  • Multi-Link Operation(MLO)多重連接模式提升連接穩定性
  • 透過 Nuclias 網路控制器集中管理

型錄下載

Where to buy

User Benefits​

Wi-Fi 7 Connectivity

Enables faster speeds, lower latency, and greater capacity for high-performance, future-ready networks

10G Ready for Wi-Fi 7

Equipped with 10G PoE and 2.5G ports, delivering wired backhaul and flexible uplink options to unleash the potential of Wi-Fi 7

Customizable Network Access

Supports Multi-SSID and Captive Portal for secure, customizable network access for different user groups

Flexible Installation Options

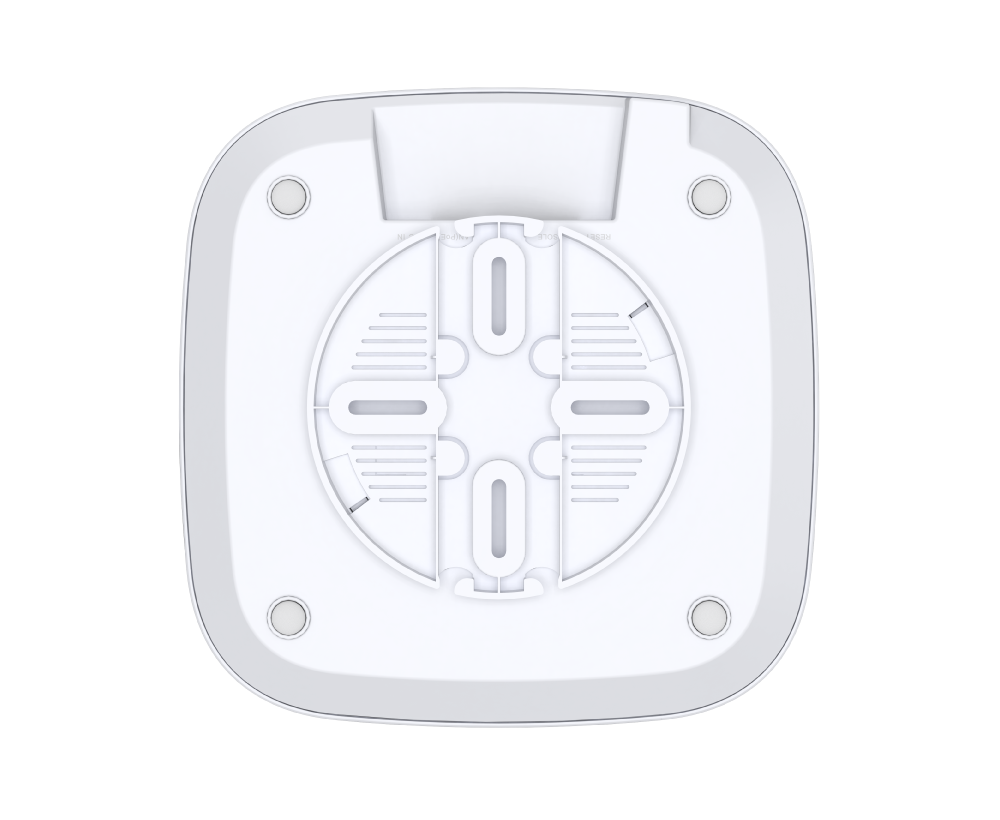

Supports PoE (802.3bt), USB-C, and comes with ceiling grid and wall/ceiling mounts for easy deployment in any environment

Smart Segmentation

Enhanced security with VLANs per SSID and MAC control for precise segmentation and restricted access

Centralized Management

Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller

增強所有應用的效能

Wi-Fi 7 減少干擾並提升無線網路的效能，使其適用於各種使用環境和應用，例如遠端辦公、視訊會議、大檔案傳輸、串流媒體、AR/VR 和雲端服務存取。

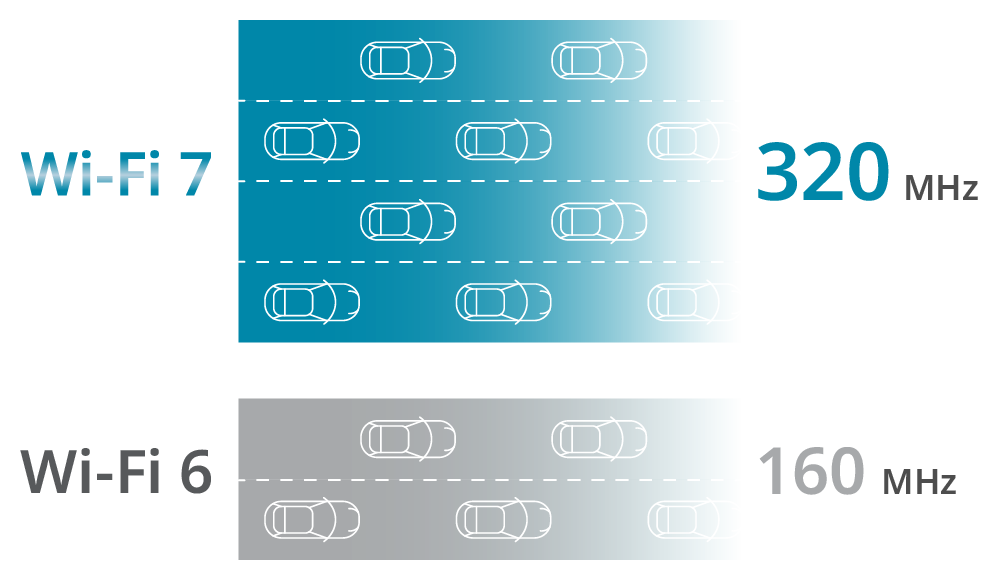

頻寬翻倍從 160 MHz 提升至 320 MHz

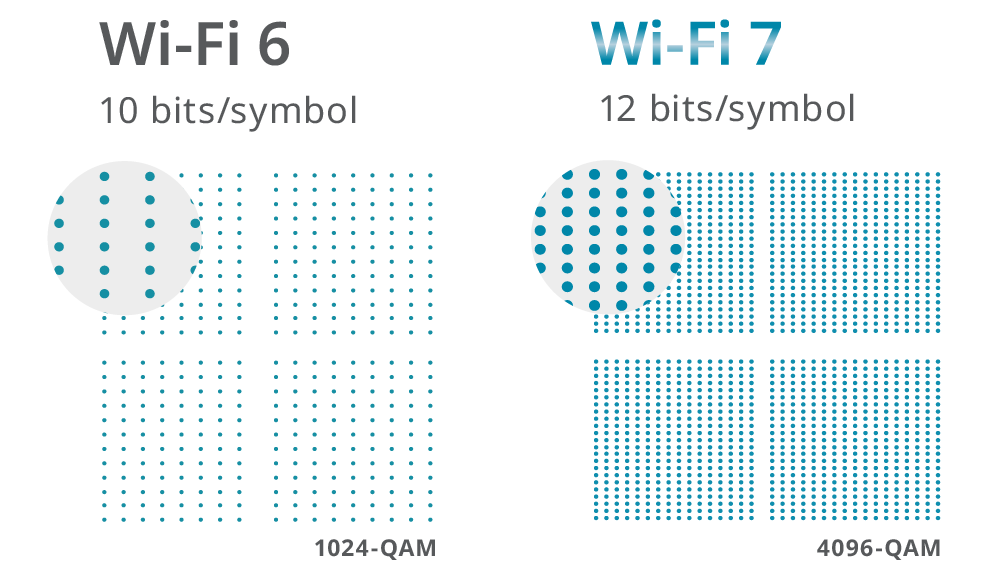

4096 QAM - 資料傳輸速度比 Wi-Fi 6 提升 20%

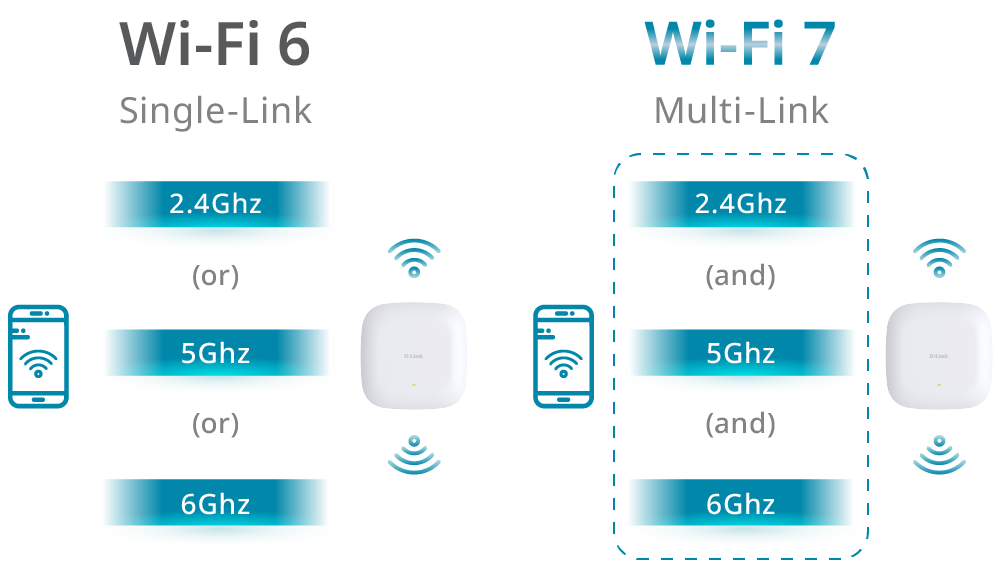

Multi-Link Operation (MLO) - 提升速度和穩定性

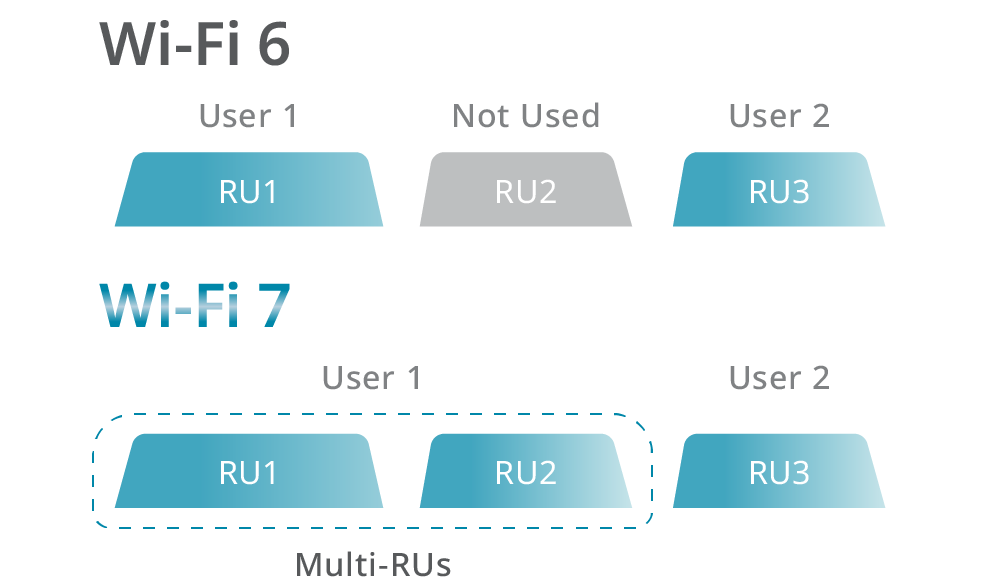

Multi-RUs – 可更有效地利用頻道頻寬

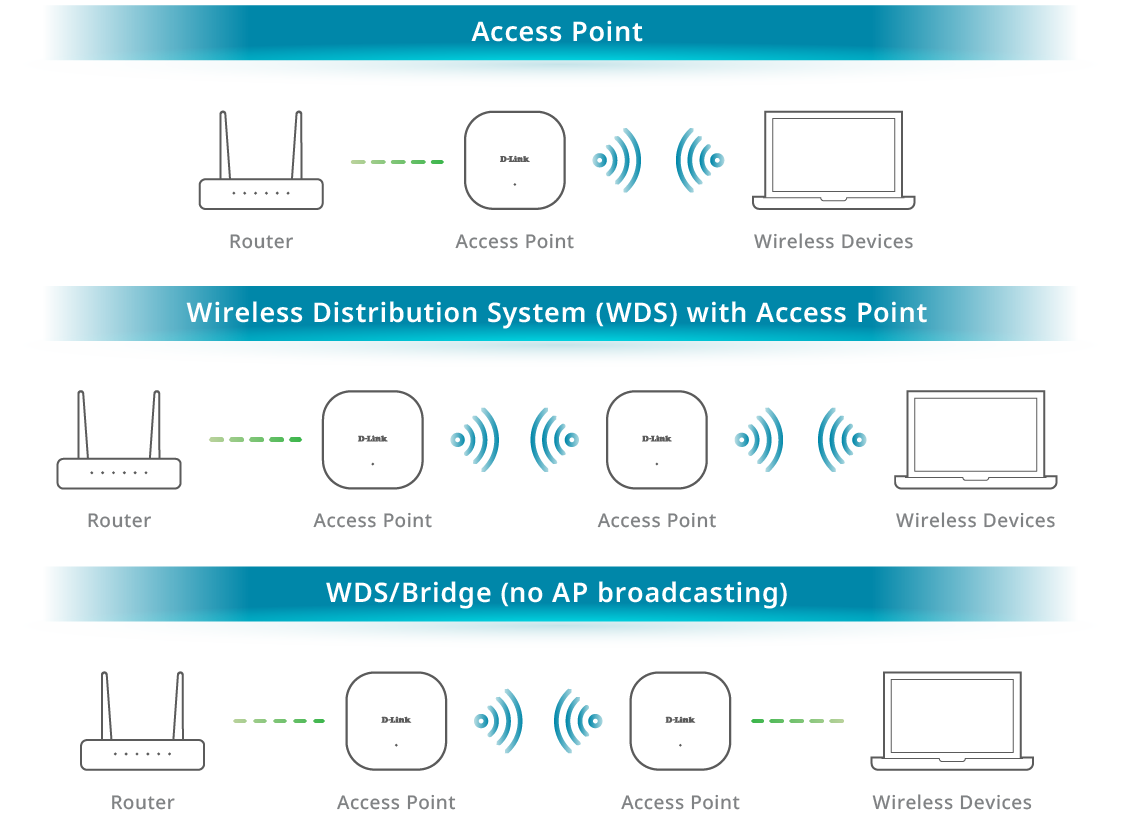

多種操作模式

DAP-E9560 可設定以滿足您的網路需求並最佳化效能.
．Access Point(AP)
．Wireless Distribution System (WDS) with AP
．WDS/Bridge

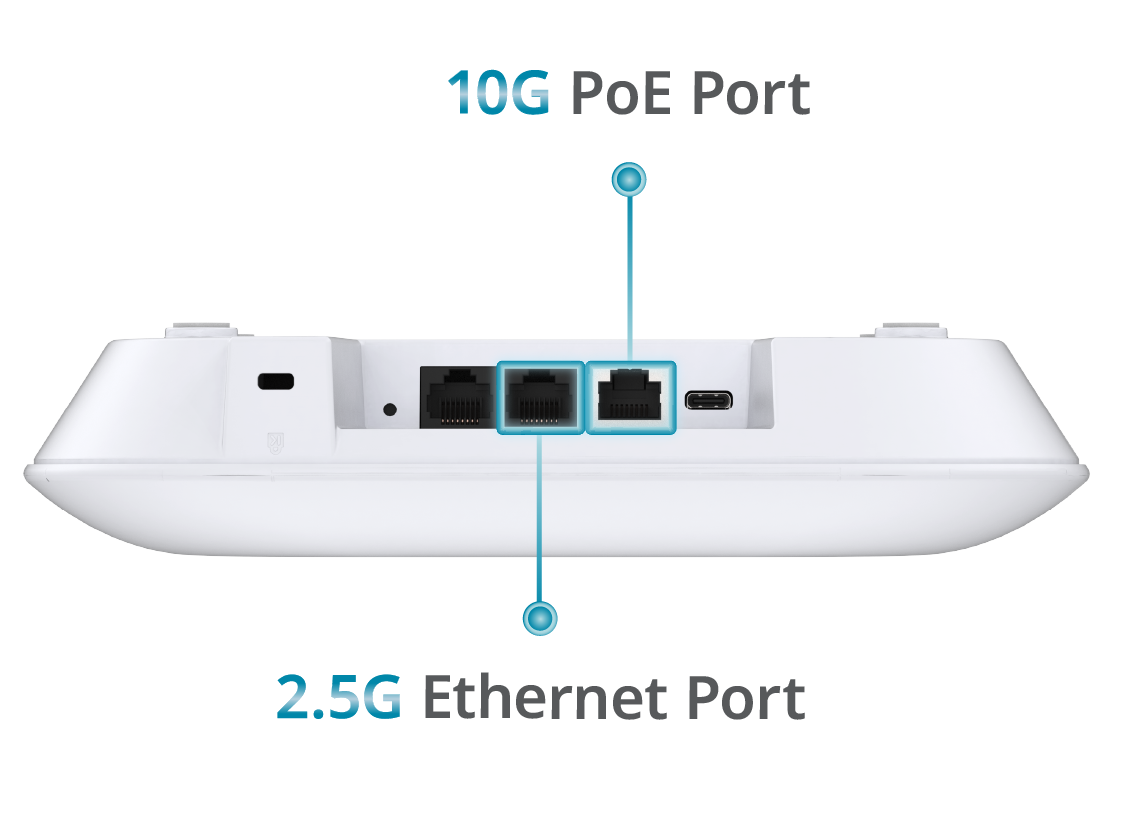

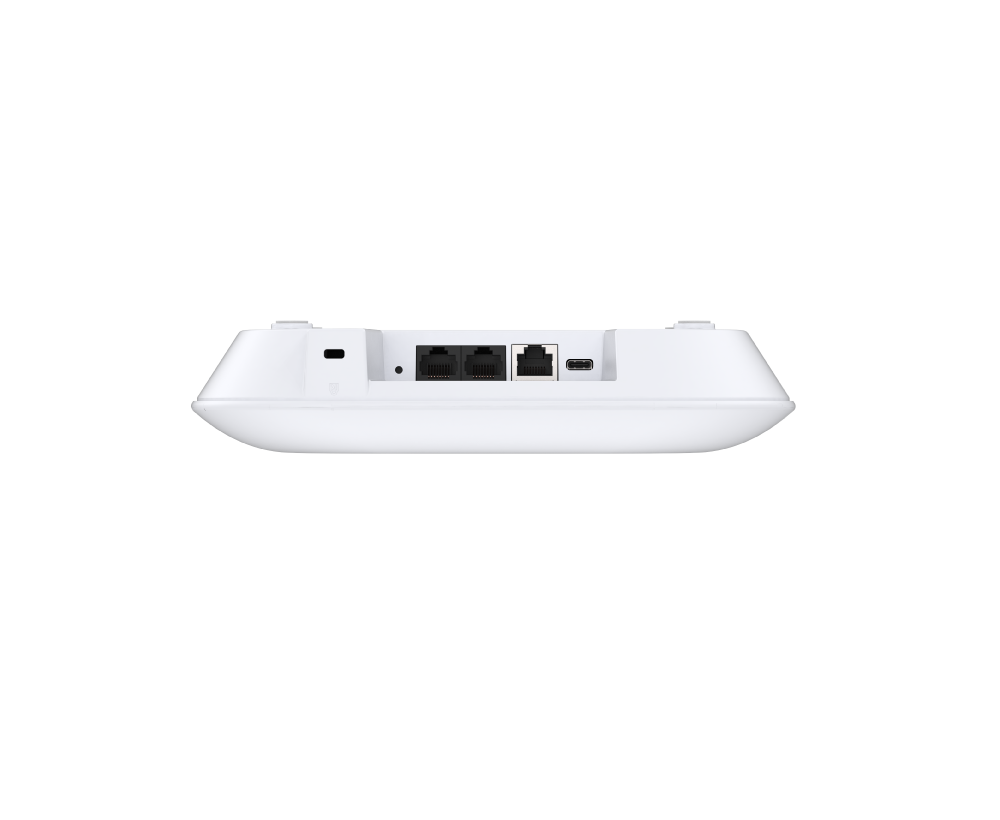

優化有線連接性能，具備10G PoE 和 2.5G 連接埠

DAP-E9560 配備高速 10G PoE 連接埠和 2.5G 連接埠，確保卓越的有線連接和靈活的上行鏈路選項。這種先進的設計最大限度地提高了企業級環境的有線吞吐量，充分發揮 Wi-Fi 7 的超高速潛力，並支援高密度、高效能部署。

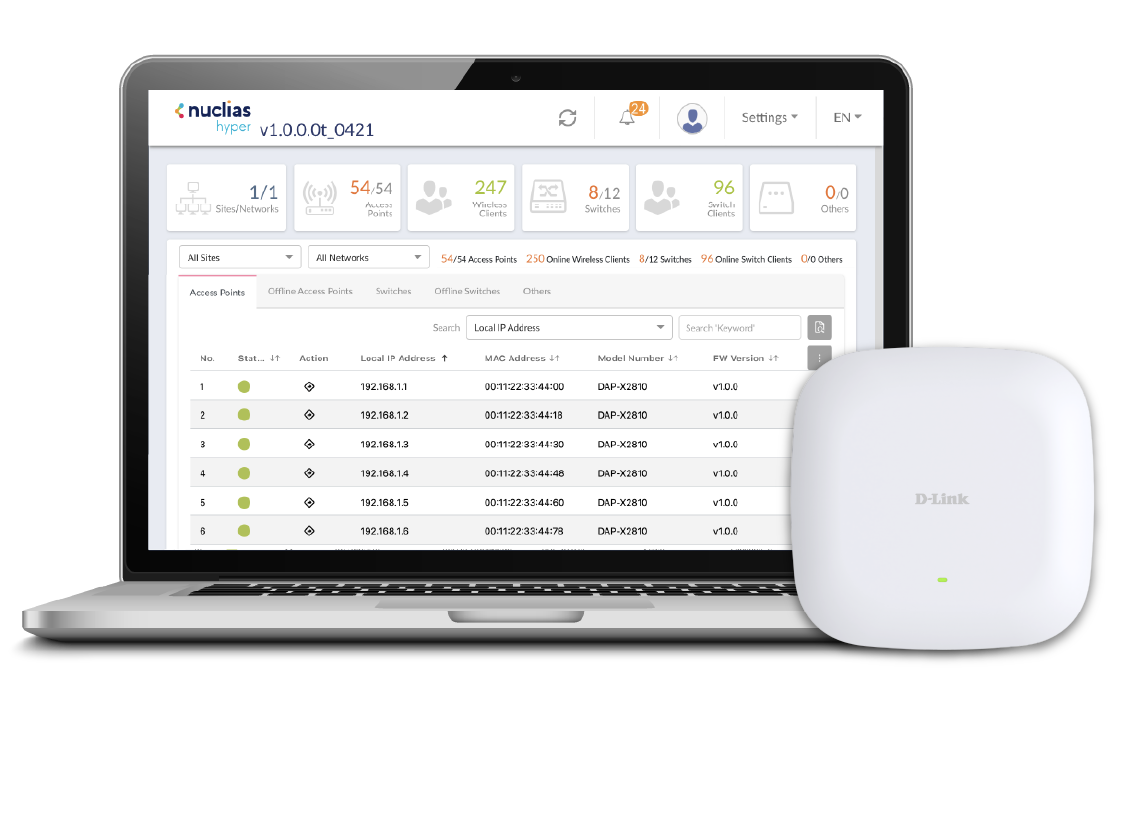

簡化集中式網路管理

DAP-E9560 可與 D-Link 的 Nuclias 網路控制器和軟體的管理平台無縫集成，為企業提供集中式遠端管理功能。透過網路連接，可從任何位置存取此解決方案，從而實現簡化的網路控制、自動化和輕鬆擴展。它內建分析和報告功能，可提供整個網路（直至每個無線基地台）的詳細運作資訊，從而實現更明智的決策。

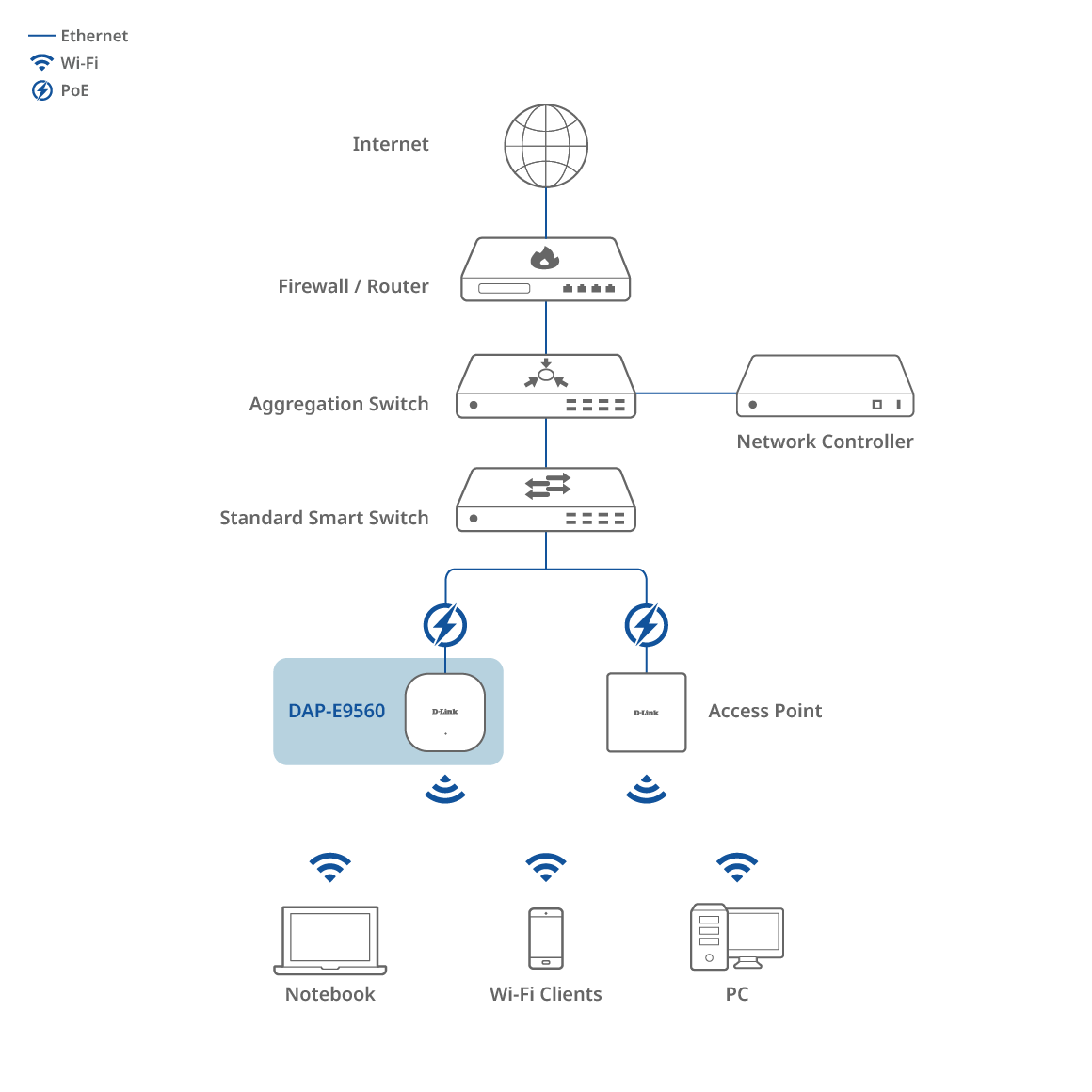

連接架構圖

DAP-E9560 專為滿足現代高密度環境的需求而設計，可提供超高速、安全且高效的無線連線。它支援三頻、320MHz 頻道、4096-QAM 調變和 10G 乙太網路，可為視訊會議、雲端存取和即時協作等對延遲敏感的應用提供卓越的效能。

Business　　　　Router

Learn more

Aggregation Switch

Learn more

Network Controller

Learn more

Standard Smart Switch

Learn more

Access　　　　Point

Learn more

Related Products

AX3000 Wi-Fi 6 雙頻無線 PoE 基地台
DAP-X3060
Find out more
AX3000 Wi-Fi 6 戶外型雙頻無線 PoE 基地台
DAP-X3060OU
Find out more

應用

SME (Enterprise)

Learn More

Department Store (Business)

Learn More

Transnational University (Education)

Learn More

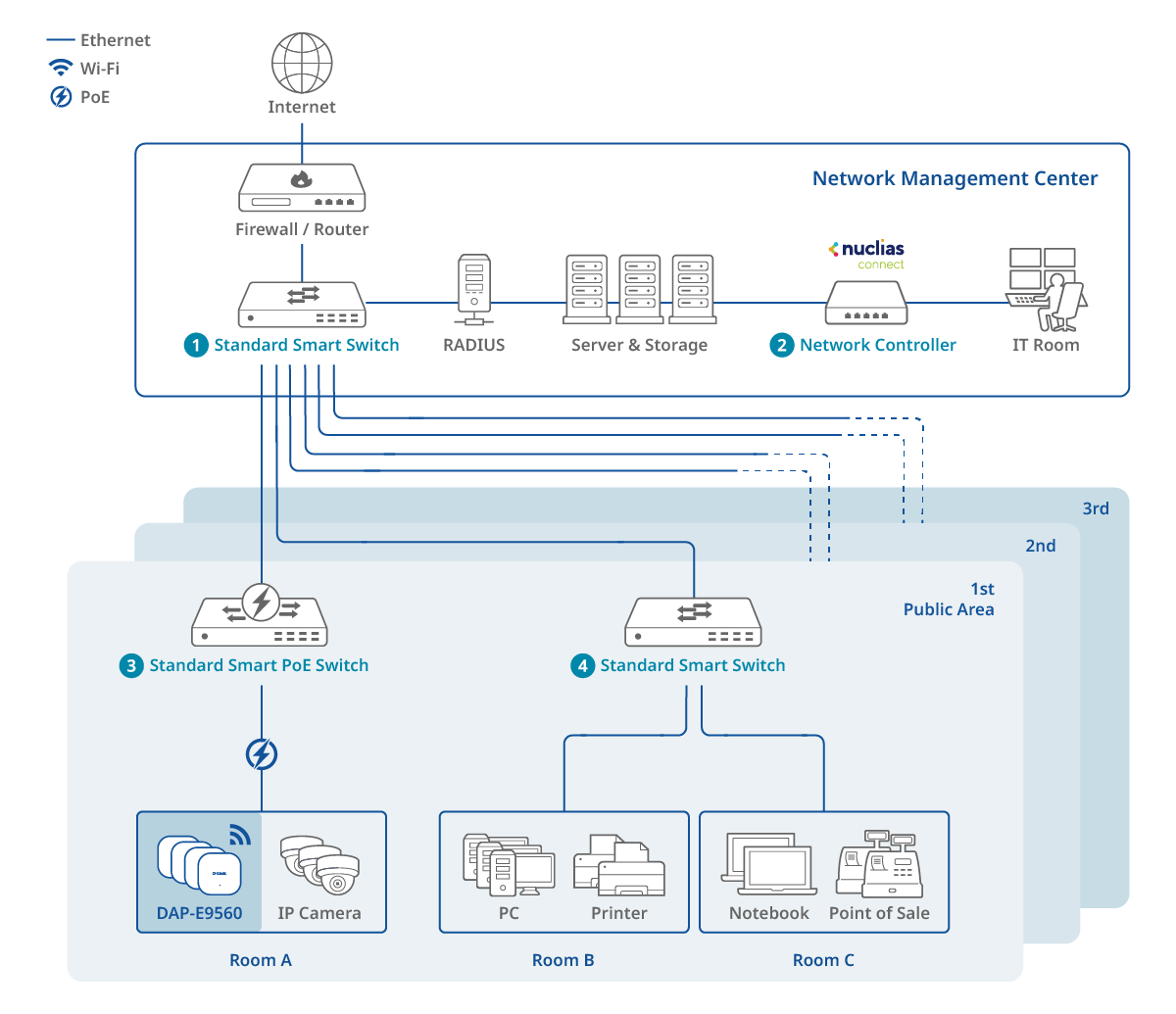

SME (Enterprise)

User benefits :

  • High-speed data for better productivity
  • Smooth video calls and collaboration
  • Stable performance for many devices
  • Fast roaming across floors
  • Enhanced your productivity
  • Secure access with WPA3 and VLANs

Learn more :

  1. Standard Smart Switch : DXS-1210-12SC
  2. Network Controller : DNH-1000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Standard Smart Switch : DMS-1250-18

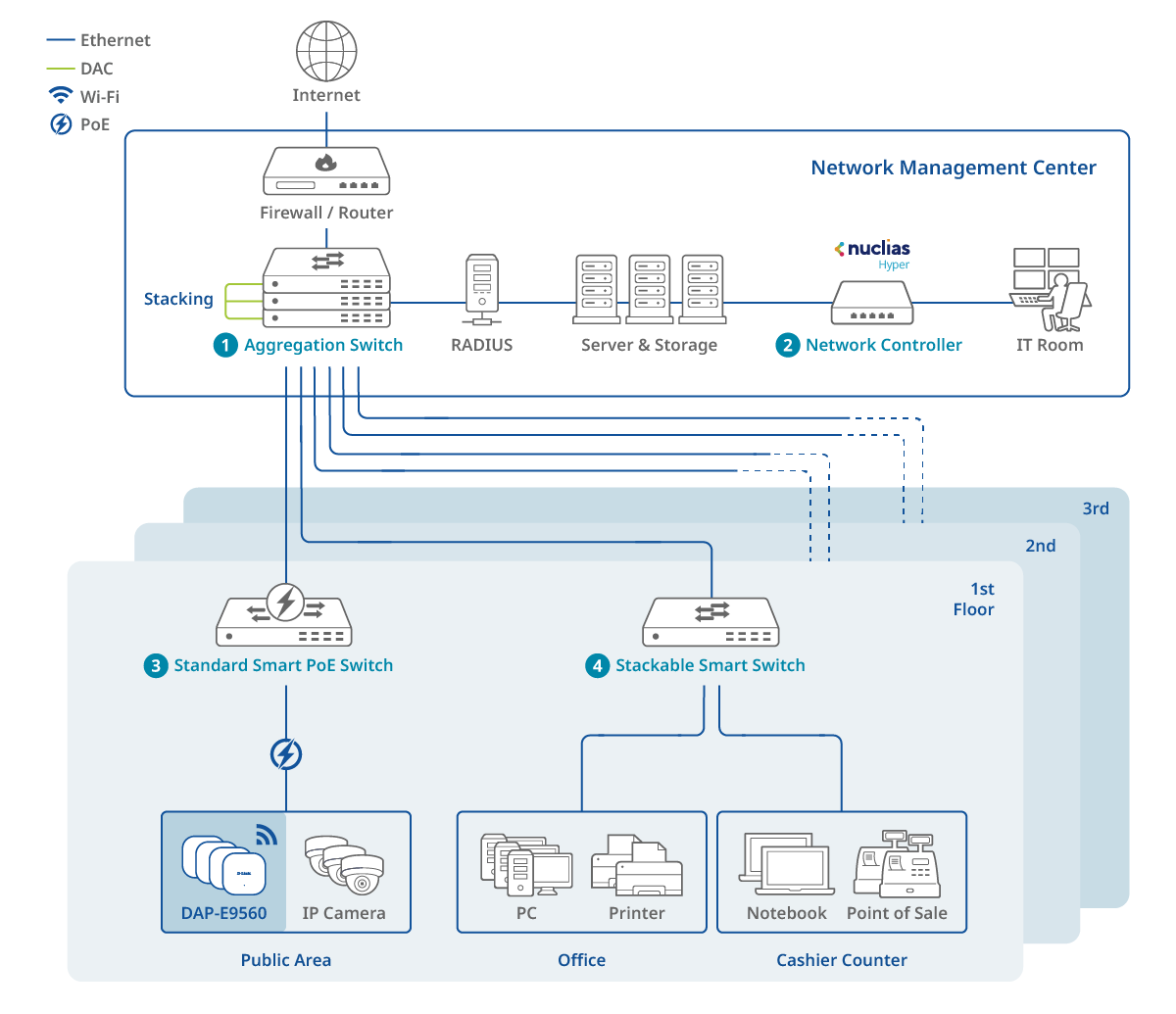

　Department Store (Business)

User benefits :
  • High-bandwidth uplinks for fast, stable connections
  • Rapid fault recovery for reliable performance
  • Comprehensive security to protect critical data
  • Supports long-distance connectivity
  • VLAN and QoS to optimize the learning experience

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Network Controller : DNC-5000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Stackable Smart Switch : DGS-1530 Series

Transnational University (Education)

User benefits :
  • High-speed connectivity across campus
  • Reliable performance in high-density areas
  • Low latency for online learning and research
  • Fast roaming between buildings
  • Supports AR/VR and 4K applications
  • Secure access for all user groups

Learn more :

  1. Core Switch : DXS-3610-54S
  2. Network Controller : DNC-5000
  3. Aggregation Switch : DXS-3130-32S
  4. Standard Smart PoE Switch : DXS-1250-28YP
  5. Unmanaged Switch : DMS-1024

產品規格

型錄下載

Interfaces
1 x 10-Gigabit Ethernet PoE LAN port
1 x 2.5-Gigabit Ethernet LAN port
Antenna type
2 x 2.4 GHz internal antennas
2 x 5 GHz internal antennas
2 x 6 GHz internal antennas
IEEE Standard
IEEE 802.11be/ax/ac/n/g/b/a
IEEE 802.3u/ab/an
IEEE 802.3bt PoE
Security Protocol
WPA/WPA2/WPA3™ Personal/Enterprise
WEP 64/128-bit
SSID broadcast disable
Enhanced Open
MAC address access control
Internal RADIUS server
Operating Frequency
2.4 - 2.483 GHz
5_925 7_125 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz
Device Management
Web (HTTP/HTTPS)
Telnet/SSH
Nuclias Network Controller
SNMP
Dimensions
223 x 223 x 46.7 mm​ (W x D x H)
Power Input
802.3bt or 20V/2.25A
Operating Temperature
0 - 40 °C (32 - 104 °F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Console Port
RJ-45 console port
Power Supply Type
USB Type-C

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。
