24-Port Gigabit Unmanaged PoE+ Switch with 2 SFP Ports

DGS-1026P

  • Product Status (B1 v1.00): Live
  • 24 Gigabit Ethernet PoE+ ports (up to 30W per port, 240W total)
  • 2 Gigabit SFP uplink ports extend range beyond *100 meters
  • DIP switch for quick onsite configuration
  • IEEE 802.3x flow control helps reduce packet loss
  • Port isolation and storm control enhance network security
  • Extend Mode supports PoE and data up to *250 meters
  • PD-Alive auto-reboots unresponsive PoE devices
  • PoE usage and status LEDs provide real-time monitoring
  • QoS prioritizes critical network traffic
  • Follows NDAA/TAA sourcing standards
  • Limited Lifetime Warranty upon Registration (North America)

* Actual range and distance will vary, may be lower for a given network, or depend on device/cable limitations, temperature, and other environmental conditions.


Download the datasheet.

Where to buy

User Benefits​

Plug and Play

Easy installation with no configuration required

IEEE 802.3af/at PoE

Up to 30 W/port and 240 W total power budget

Optimized Performance

QoS prioritizes traffic, enhancing user experience

DIP Switch Capability

DIP switch enables fast and easy onsite configuration

SFP Ports

SFP uplink ports extend transmission beyond 100 m

Smart Fan Design

5-speed fan auto-adjusts to device temperature

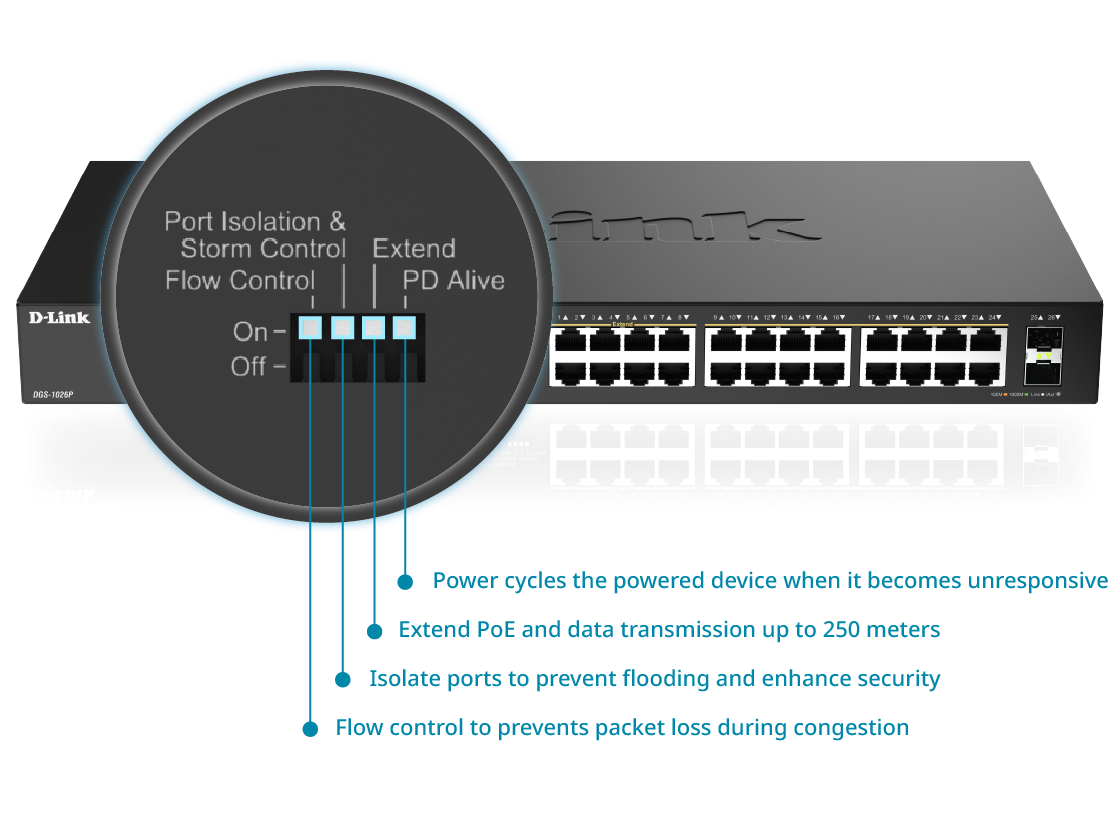

Easy On-Site Control, No Logins, No Fuss

The D-Link DGS-1026P 24-Port Unmanaged PoE+ Switch with 2 SFP Ports gives you built-in physical controls to instantly adjust key settings without logging into a web interface. You can quickly enable features like long-range PoE for distances up to 250 meters, automatic reboot for unresponsive devices, port isolation for better security, and storm or flow control for improved stability.* It’s a fast, technician-free way to adapt your network right at the switch—ideal for dynamic environments where time and simplicity matter.

* Actual range and distance will vary, may be lower for a given network, or depend on device/cable limitations, temperature, and other environmental conditions. D-Link makes no representations or warranties about this product's physical performance range or compatibility with future standards.

Deploy Smarter. Power More.

The D-Link DGS-1026P 24-Port Unmanaged PoE+ Switch with 2 SFP Ports delivers plug-and-play connectivity with 24 Gigabit PoE+ ports and 2 Gigabit SFP uplinks, supporting up to 30 watts per port with a total power budget of 240 watts. It powers a wide range of PoE-enabled devices—including Wi-Fi access points, IP cameras, VoIP phones, smart displays, POS terminals, video conferencing systems, badge readers, interactive kiosks, and compact digital signage—helping reduce the need for separate power sources. With simplified installation, reduced cabling, and a smart 5-speed fan that adjusts based on thermal load, the DGS-1026P supports efficient, scalable deployments across retail, education, hospitality, and business environments.

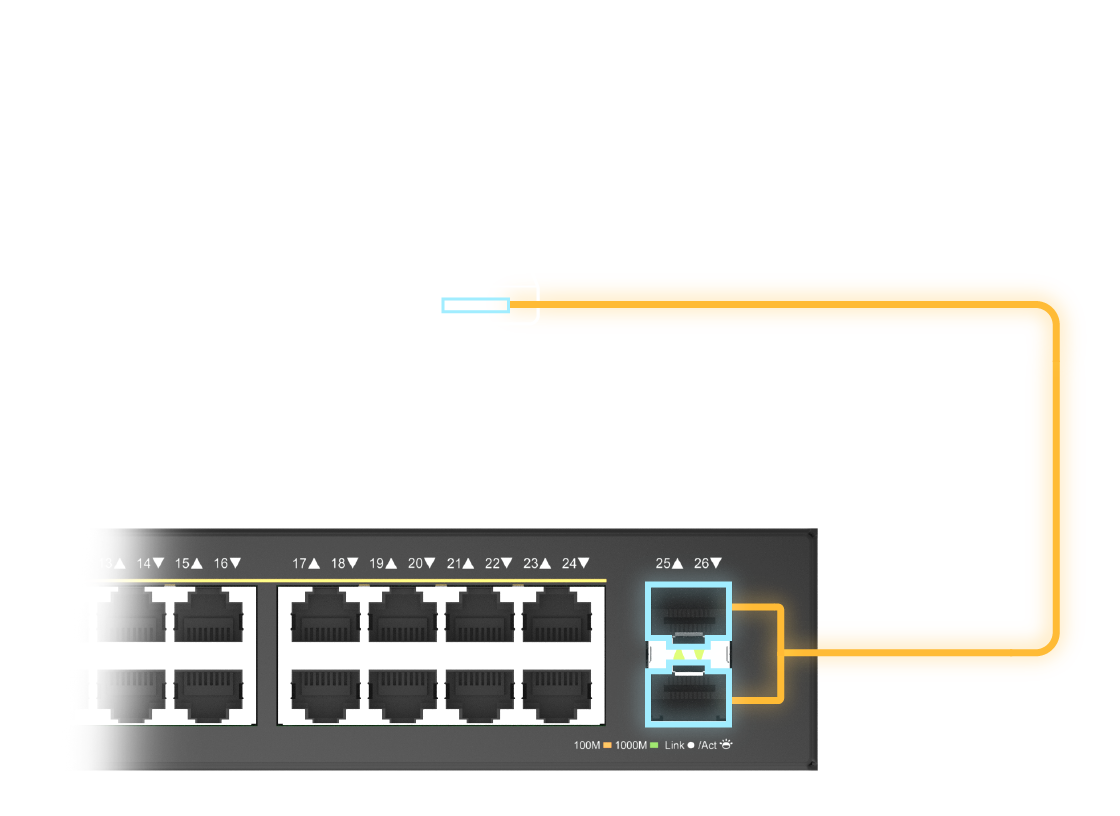

Extend Connectivity with SFP

The D-Link DGS-1026P 24-Port Unmanaged PoE+ Switch with 2 SFP Ports includes two dedicated SFP uplink ports that helps you to scale your Gigabit network beyond the 100-meter limit of standard Ethernet cabling.* These fiber-ready ports are ideal for connecting to core or aggregation switches across floors, between buildings, or throughout large commercial spaces. By supporting long-distance, high-speed uplinks, the DGS-1026P adds flexibility and scalability for growing networks in retail, education, business, and multi-site environments.

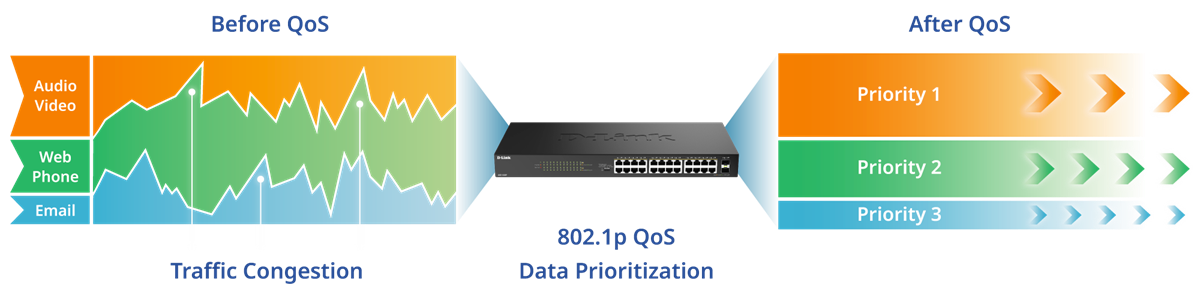

Prioritize Traffic for Optimized Performance​

The D-Link DGS-1026P 24-Port Unmanaged PoE+ Switch with 2 SFP Ports includes Quality of Service (802.1p QoS) support to help manage and prioritize network traffic. This allows voice calls, video streams, and other time-sensitive data to move more efficiently through the network, which can improve overall responsiveness. The switch also follows the US NDAA and TAA standards, which could be important for organizations that need trusted hardware (Contact us to learn more). Together, these features support reliable performance while helping meet regulatory and procurement guidelines.




Related Products

Multi-Gig Business Router with SFP
DBR-700
Find out more
AX3000 Wi-Fi 6 Smart Access Point (DBR-Series)
DBR-X3000-AP
Find out more
16-Port Gigabit Unmanaged PoE+ Switch with 2 SFP Ports
DGS-1018P
Find out more
1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more

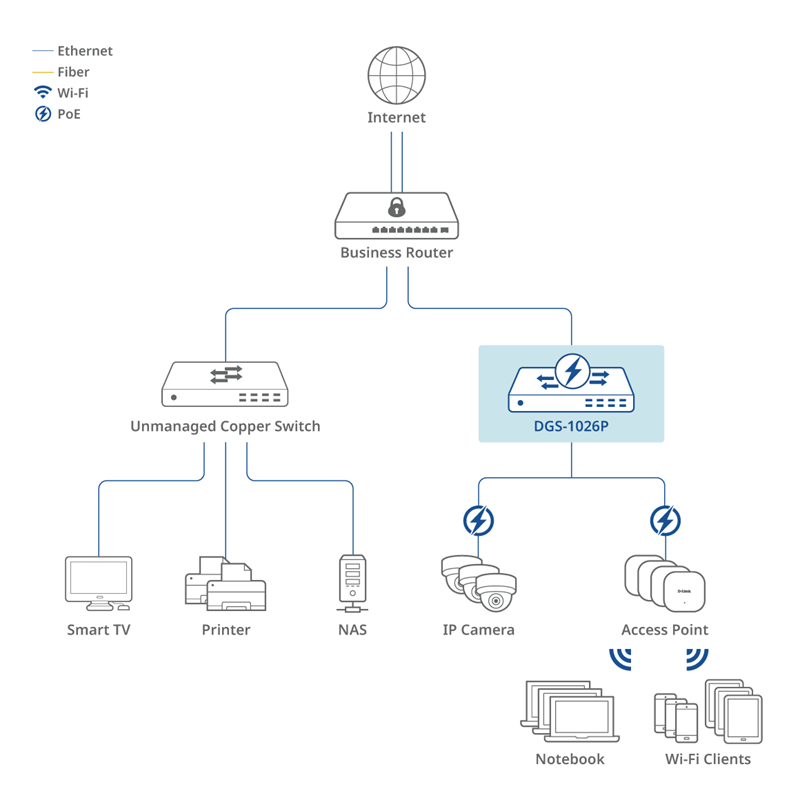

Connection Diagram

The DGS-1026P offers plug-and-play Gigabit edge connectivity for cost-effective home and office upgrades with available features such as port isolation, flow control, QoS, PD-alive, SFP ports, and extending PoE and data transmission beyond the 100-meter limitation of traditional copper Ethernet cabling to adapt to various application requirements.

Business Router

Learn More

Access Point

Learn More

Specification

Download the datasheet.

Number of Gigabit ports
24
Number of SFP ports
2
Switching Capacity
52 Gbps
Maximum Forwarding Rate
38.69 Mpps
PoE Standards
802.3af/at
PoE Power Budget
240 W
PoE capable ports
Ports 1 to 24 (up to 30 W/port)​
FAN
5-speed smart fan
D-Link Green
Supported
802.3az EEE
Supported
802.1p QoS​
Supported

Download the datasheet.
