Coming Soon

16-Port 2.5GbE Multi-Gigabit Unmanaged Switch

DMS-1016

  • Product Status (A1 v1.00): Live
  • 16-Port Multi-Gigabit Connectivity: Connect up to 16 wired devices with up to 2.5GbE per port, providing higher-capacity connectivity for workstations, servers, NAS, switches, and other network devices
  • Up to 80 Gbps Switching Capacity: Provides up to 80 Gbps of aggregate switching capacity, helping accommodate simultaneous data traffic across multiple connected devices and bandwidth-intensive applications
  • Plug-and-Play Deployment: Unmanaged operation, auto-negotiation, and Auto MDI/MDI-X simplify installation with no switch configuration required
  • Fanless Rackmount Metal Design: Durable metal housing supports rackmount deployment, while the fanless design helps provide quiet operation for offices, studios, workspaces, and network closets
  • IGMP Snooping for Multicast Traffic: Helps optimize multicast traffic and reduce unnecessary bandwidth use for applications such as IPTV and other multicast services
  • Traffic Prioritization & Flow Control: IEEE 802.1p QoS helps prioritize network traffic, while IEEE 802.3x flow control helps manage congestion and minimize dropped packets
  • Energy-Efficient Operation: IEEE 802.3az Energy-Efficient Ethernet and link-status detection help reduce power consumption during periods of low network activity
  • NDAA/TAA Sourcing Standards: Follows NDAA/TAA sourcing standards for public sector and enterprise projects
  • Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty in North America and over 40 years of networking experience

* Maximum wired connection speed is up to 2.5GbE per port. Actual data rates and network performance may vary based on connected devices, cabling, network conditions, and other factors


Download the datasheet.

Where to buy

User Benefits​

Plug & Play

No complex configurations required for fast and easy network connectivity

2.5G Ports

Multi-Gigabit ports for high data rate transmission

Multicast Optimization

IGMP snooping feature prevents network flooding

Rugged Design

Compact metal casing improves device durability

Silent Operation

Fanless design for a noise-free working environment

Optimized Performance

QoS prioritizes traffic, enhancing user experience

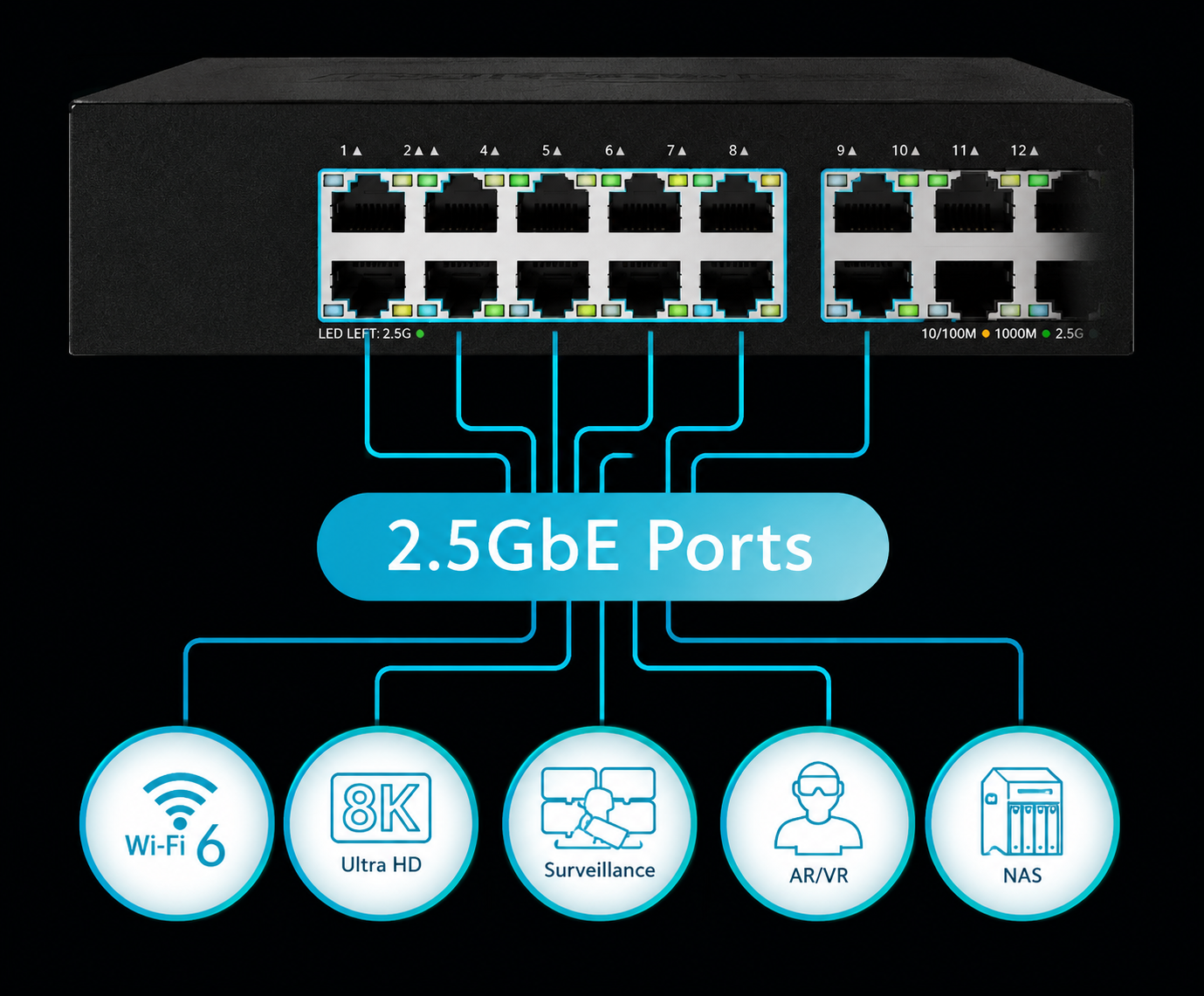

2.5GbE Ports for Higher-Capacity Networking

Each of the DMS-1016’s 16 ports supports speeds up to 2.5GbE, providing additional bandwidth compared with standard Gigabit Ethernet for compatible devices. The added capacity helps support bandwidth-intensive applications including Wi-Fi access points, 4K/8K media, surveillance, AR/VR and gaming systems, NAS, workstations, and other connected devices.

Send Multicast Traffic Only Where It’s Needed

IGMP Snooping helps manage multicast traffic by directing data to the devices that request it, reducing unnecessary traffic across the network. This helps conserve available bandwidth for multicast applications such as IPTV, video distribution, surveillance, and other bandwidth-intensive network services.

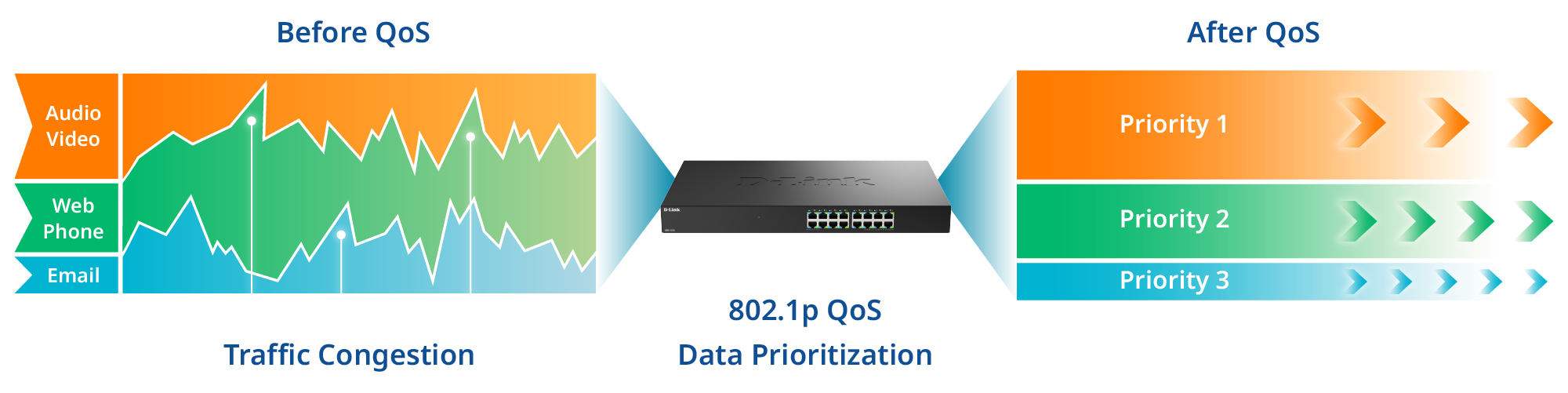

Built-In Traffic Prioritization

IEEE 802.1p Quality of Service (QoS) helps prioritize network traffic based on importance, giving higher-priority data preference when network demand increases. This helps support applications such as video, voice, web traffic, and other connected services

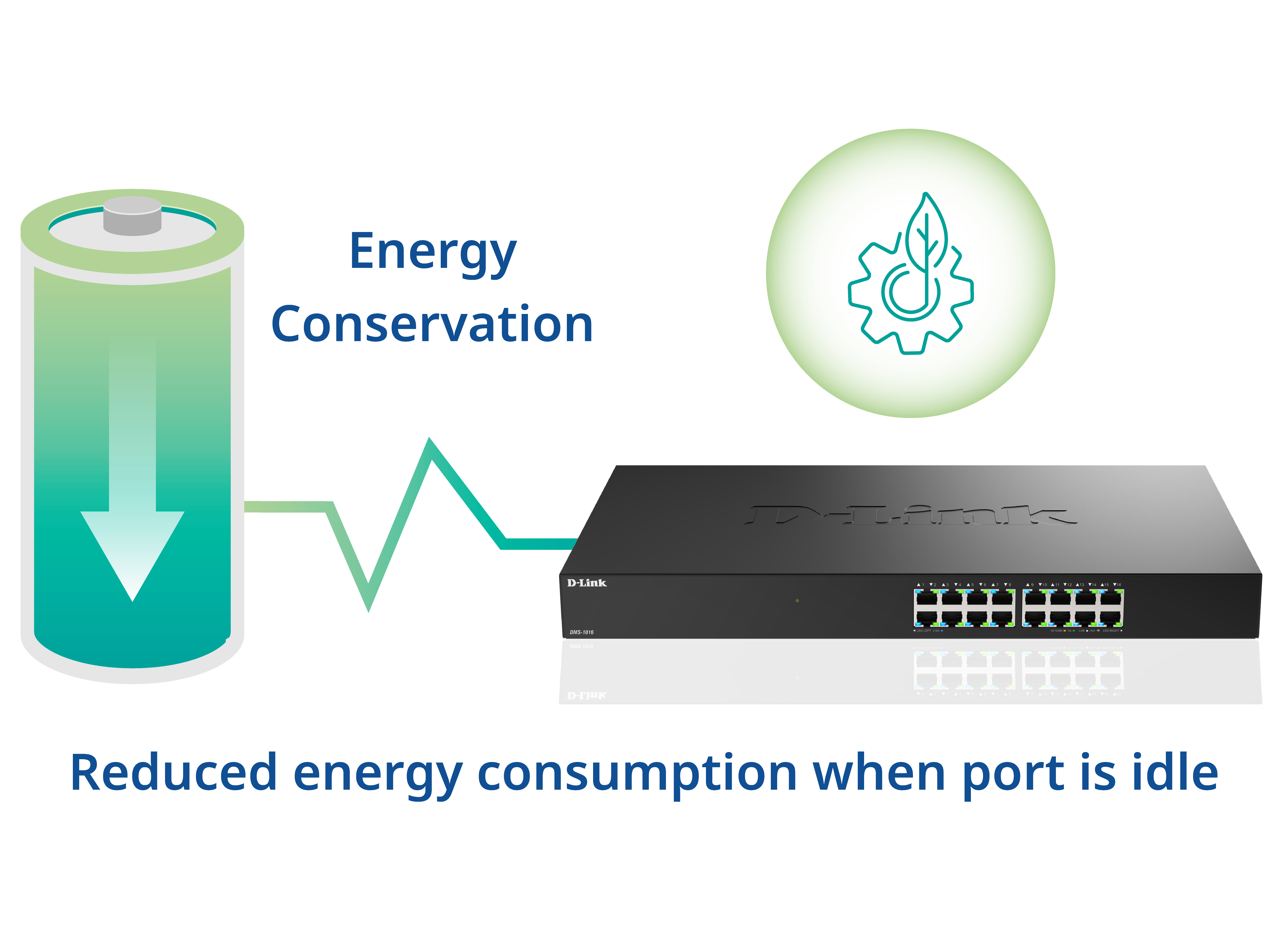

Energy-Efficient by Design

IEEE 802.3az Energy-Efficient Ethernet (EEE) helps reduce power consumption during periods of low network activity, while link-status detection powers down ports when no connection is detected. The fanless design also supports quiet operation without the need for a cooling fan.

Related Products

5-Port 2.5G Multi-Gigabit Switch
DMS-105
Find out more
7-Port 1G/2.5G Multi-Gigabit Unmanaged Switch
DMS-107
Find out more
8-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-108
Find out more
8-Port 2.5G Multi-Gigabit Unmanaged PoE Switch
DMS-108P
Find out more

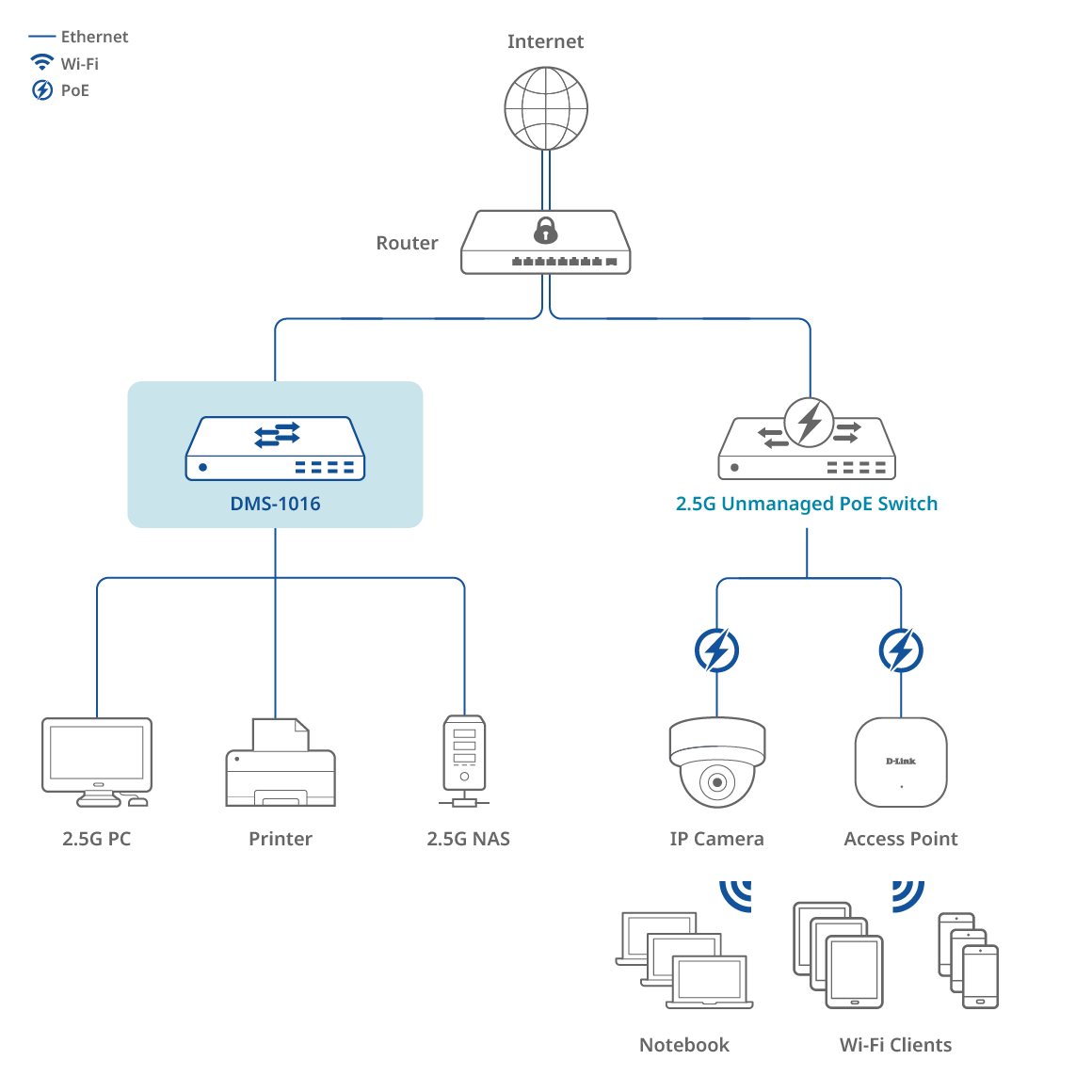

Connection Diagram

The DMS-1016 delivers unmanaged Multi-Gigabit connectivity with up to 2.5GbE per port and no software configuration required. Its 16 Multi-Gigabit ports provide additional bandwidth compared with standard Gigabit Ethernet and help support bandwidth-intensive applications such as HD surveillance, media workflows, NAS, workstations, servers, and other connected devices.

Business Router

Learn More

Specification

Download the datasheet.

Number of 2.5 GBASE-T ports​
16
Switching Capacity
80Gbps
FAN
Fanless
D-Link Green
Supported
802.3az EEE
Supported
Power Supply Type
Internal
MAC Address
16K
802.1p QoS​
Supported

Download the datasheet.
