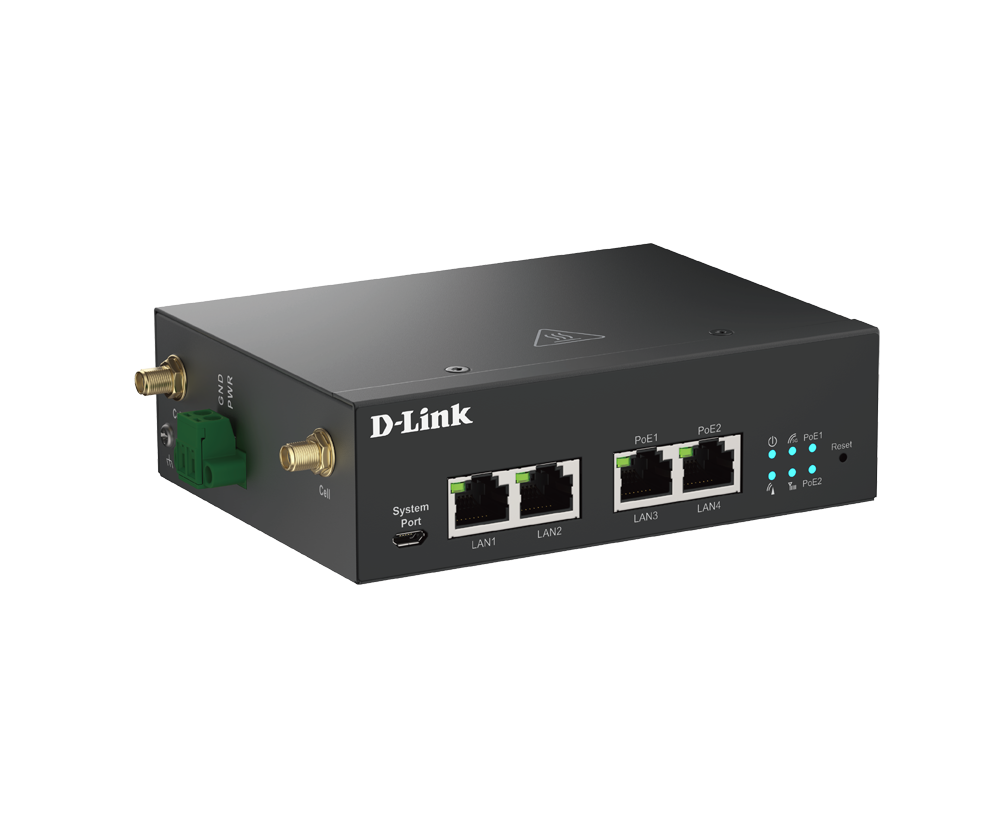

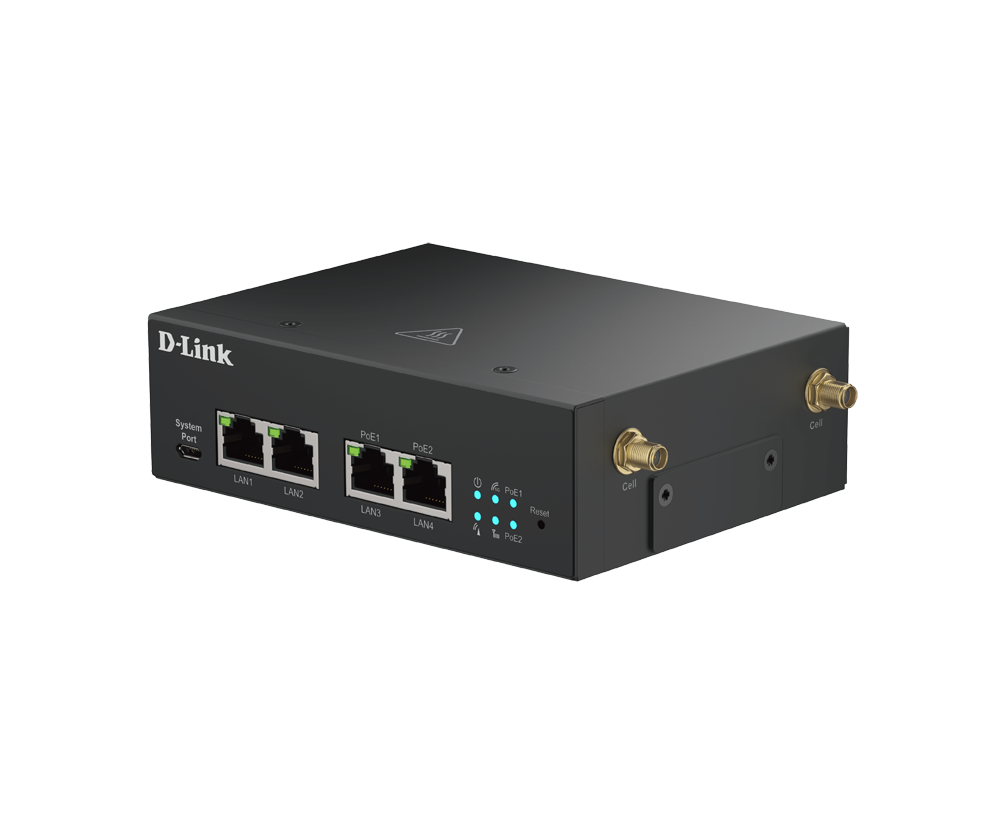

5G PoE Rugged Modem/Gateway
DWM-314-GP
- Product Status (Revision AX_v1.11): Live
- 5G speeds of up to 3.4 Gbps1 for ultra-fast Internet access and data transfer
- 2 x 10/100/1000 Ethernet LAN ports for high-speed connectivity
- 2 x 10/100/1000 Ethernet PoE LAN ports for PoE-enabled connectivity
- 2 x SIM slots for plug-and-play connectivity with failover
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
PoE Connectivity (PSE)
Two GbE LAN PoE ports to connect multiple PD devices for high-throughput mission-critical M2M applications.
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Powering Smart City Innovations with 5G
The DWM-314-GP is a versatile 5G Rugged PoE Modem/Gateway designed to support high-speed, low-latency connectivity across evolving network environments. With dual SIM slots and failover support, it offers added resilience in case of a network issue. Its plug-and-play design helps streamline installation, making it a strong option for smart city applications like smart poles, traffic monitoring, digital signage, and environmental sensing.
Built to adapt, the modem can switch between 4G and 5G connections as needed, helping maintain consistent connectivity when conditions change. By enabling timely data transmission for local alerts, services, and advertising, the DWM-314-GP supports more dynamic and responsive community infrastructure.

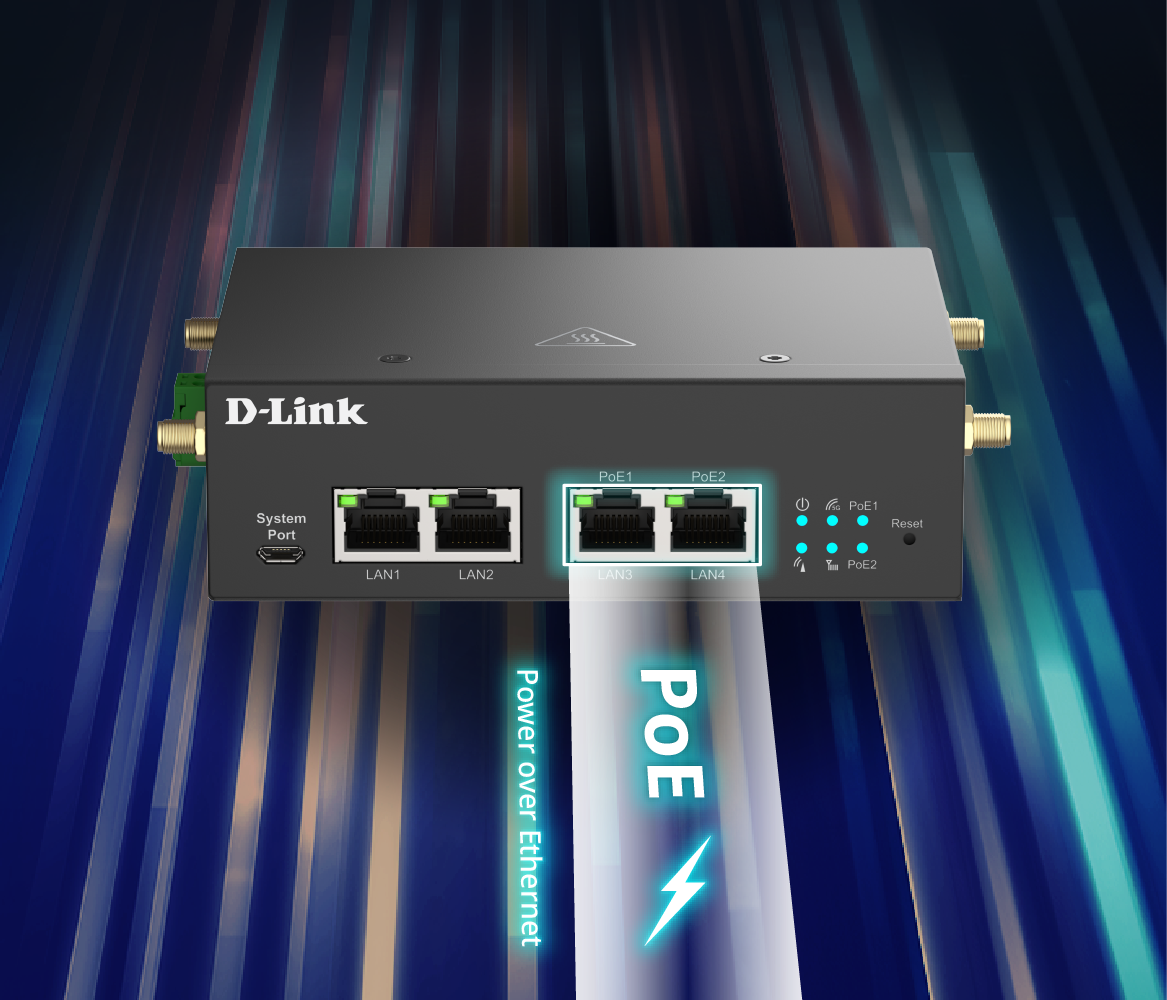

Empower Your M2M Network with PoE+
The DWM-314-GP features a built-in 4-port Gigabit switch and supports 802.3af/at Power over Ethernet (PoE+) to deliver both data and power over Ethernet cables. As a Power Sourcing Equipment (PSE) solution, it can streamline M2M communication for IoT applications by reducing the need for separate electrical infrastructure and potentially lowering the cost of adding extra PoE switches. Well-suited for powering devices like surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers more flexible device placement without the constraints of traditional wiring. Its PD-Alive feature is designed to detect and recover unresponsive powered devices, while PoE scheduling provides a way to manage energy use more efficiently.
Robust Build Quality

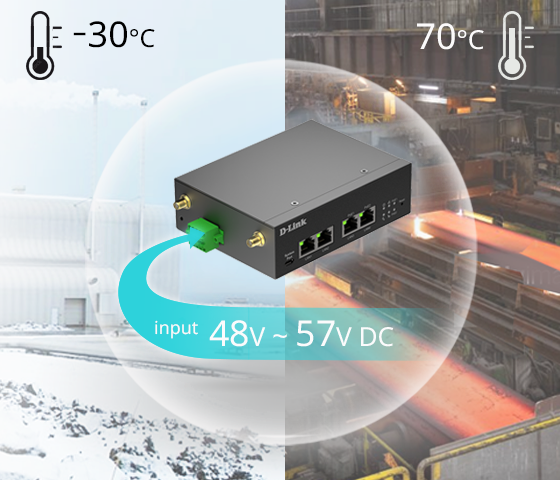

The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-GP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-GP to be mounted virtually anywhere to optimize signal quality.
The DWM-314-GP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Seamless 5G PoE Power for Reliable Connectivity

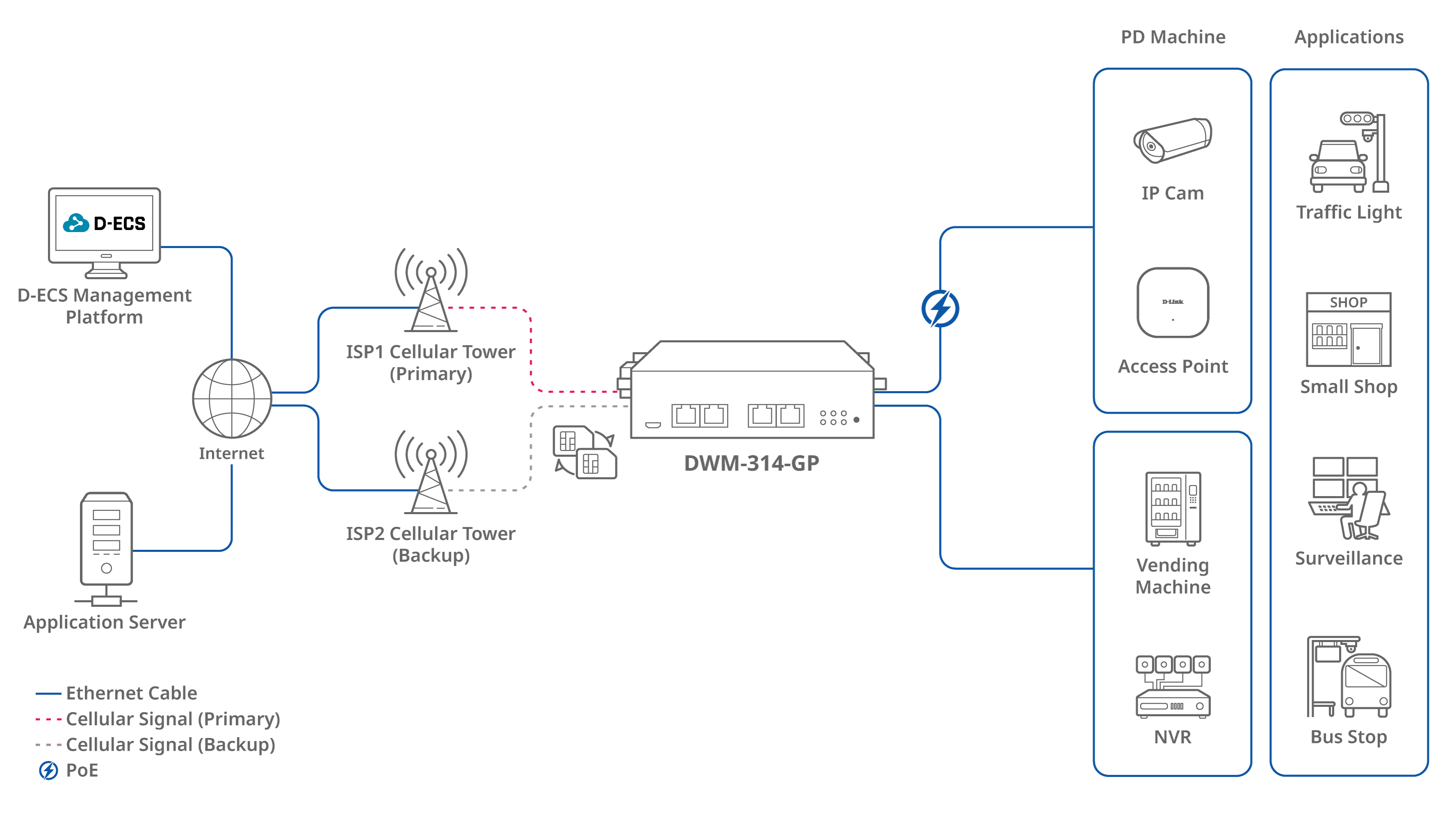

The DWM-314-GP 5G Rugged PoE Modem/Gateway delivers ultra-fast 5G and Ethernet connectivity with instant, driverless access—no pre-configuration required. Its plug-and-play design and intuitive web interface make it ideal for versatile applications, simplifying network setup and management. Equipped with two fast Ethernet LAN ports for reliable wired connectivity and dual Gigabit Ethernet ports and 802.3af/at PoE functionality, the DWM-314-GP powers and connects multiple Ethernet PD devices simultaneously, reducing the need for additional PoE switches. Its auto-reboot feature ensures device stability by restoring unresponsive devices. Perfect for powering IP cameras, access points, vending machines, and NVRs, this modem is the ideal solution for traffic lights, retail stores, surveillance systems, and smart infrastructure like bus stops.
Versatile Applications
Surveillance
Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.
Access Point
Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.
IoT Sensor
Power and connect IoT sensors in remote locations, enabling real-time data monitoring and transfer over enhanced security 4G/5G networks.

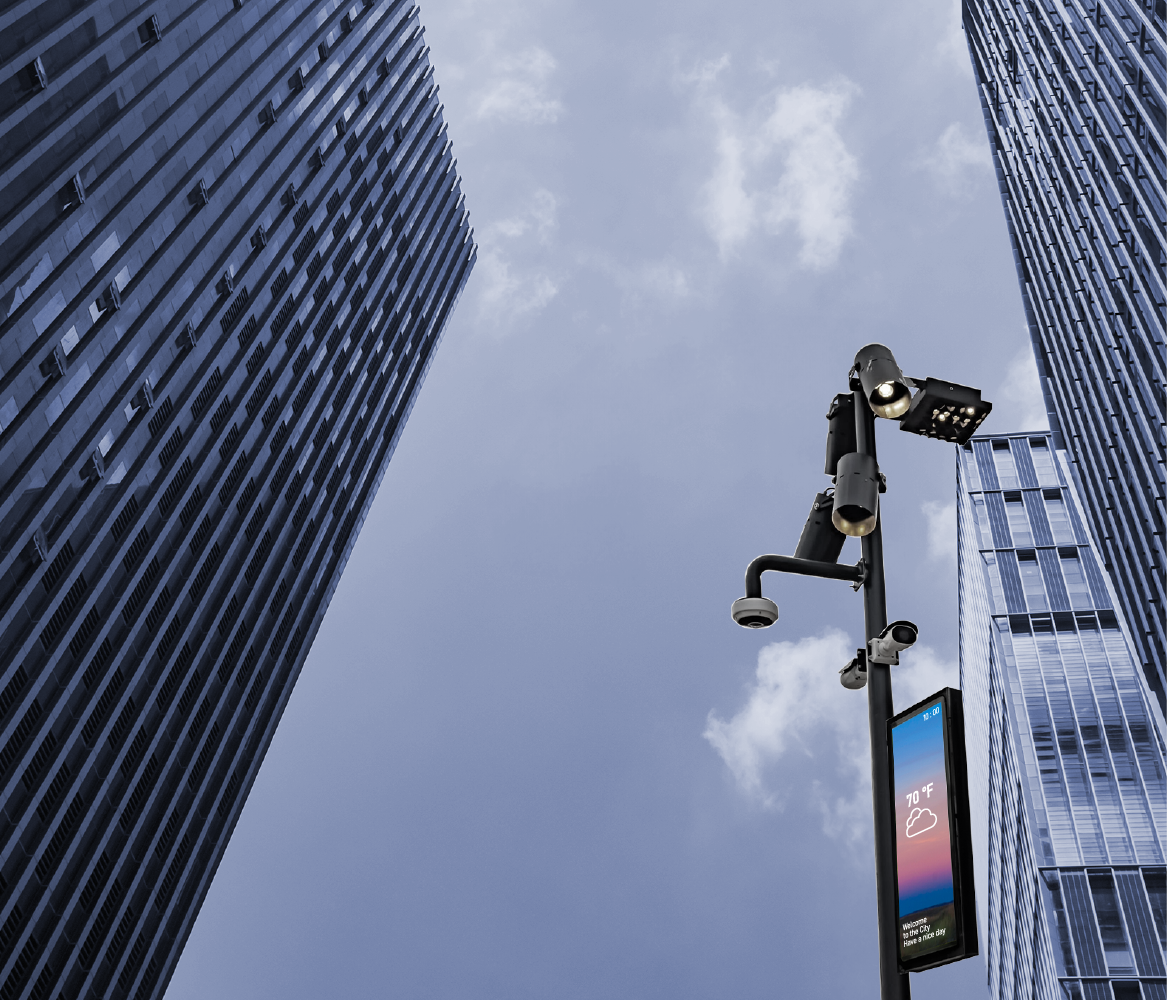

Smart Pole
Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.
Specification
|
Cellular
|
5G NR SIM x 2 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
4 x LAN |
|
Ethernet Speed
|
10/100/1000 Mbps Ports |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
2 x GE (802.3at PSE) |
|
Power Input
|
DC 48V-57V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
VPN
|
OpenVPN WireGuard |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
