Wireless N Access Point
DAP-2310
- Product Status: End of Sale
Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.
Flexible Wireless

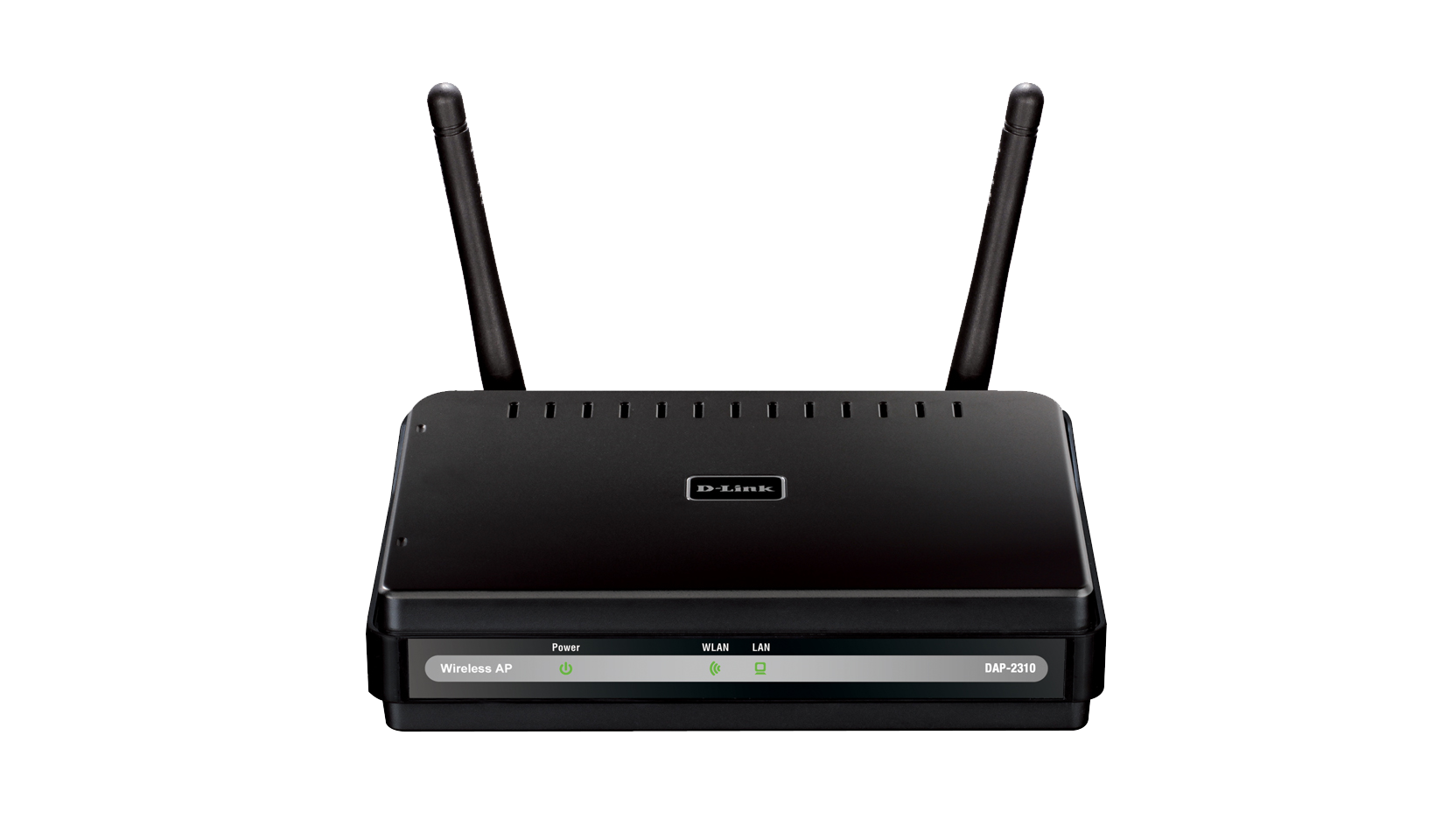

The DAP-2310 is an entry level indoor access point, designed to be deployed in small offices and classrooms to create or expand the capacity of a wireless network.
2.4Ghz Single-Band Wireless
With a high power radio design, the DAP-2310 supports up to 300 Mbps throughput for the 2.4Ghz band.
Smart Design
The DAP-2310 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Free Wireless AP Controller software
D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.
Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.
Product Comparison
 |
 |
 |
||
|---|---|---|---|---|
| DAP-2310 | DAP-2360 | DAP-2690 | ||
| Wireless Standard | B, G, N | B, G, N | B, G, N | |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
| 5GHz Throughput | - | - | 300Mbps | |
| Aspect | Indoor | Indoor | Indoor | |
| Range* | 100m | 100m | 100m |
 |
 |
|||
|---|---|---|---|---|
| DAP-2660 | DAP-2695 | |||
| Wireless Standard | B, G, N, AC | B, G, N, AC | ||
| Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
| 2.4GHz Throughput | 300Mbps | 300Mbps | ||
| 5GHz Throughput | 867Mbps | 1300Mbps | ||
| Aspect | Indoor | Indoor | ||
| Range* | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Single-band |
|
Wireless speed
|
300 Mbps 2.4 GHz |
|
Antenna type
|
2 detachable omni-directional antennas |
|
Antenna gain
|
2 dBi for 2.4 GHz |
|
Wired interface
|

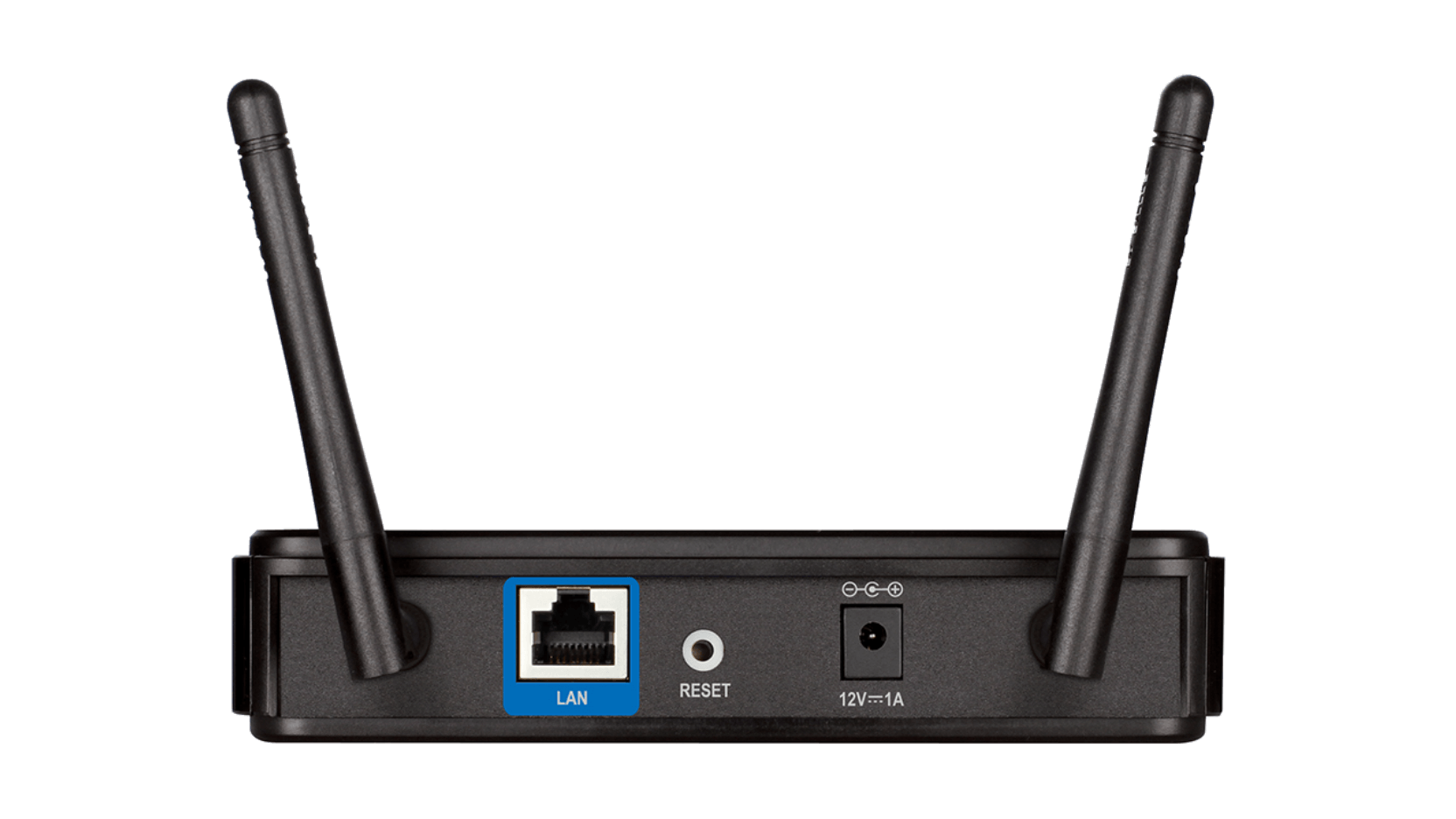

1 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
802.11k/r Roaming MIMO |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
IPv6
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
