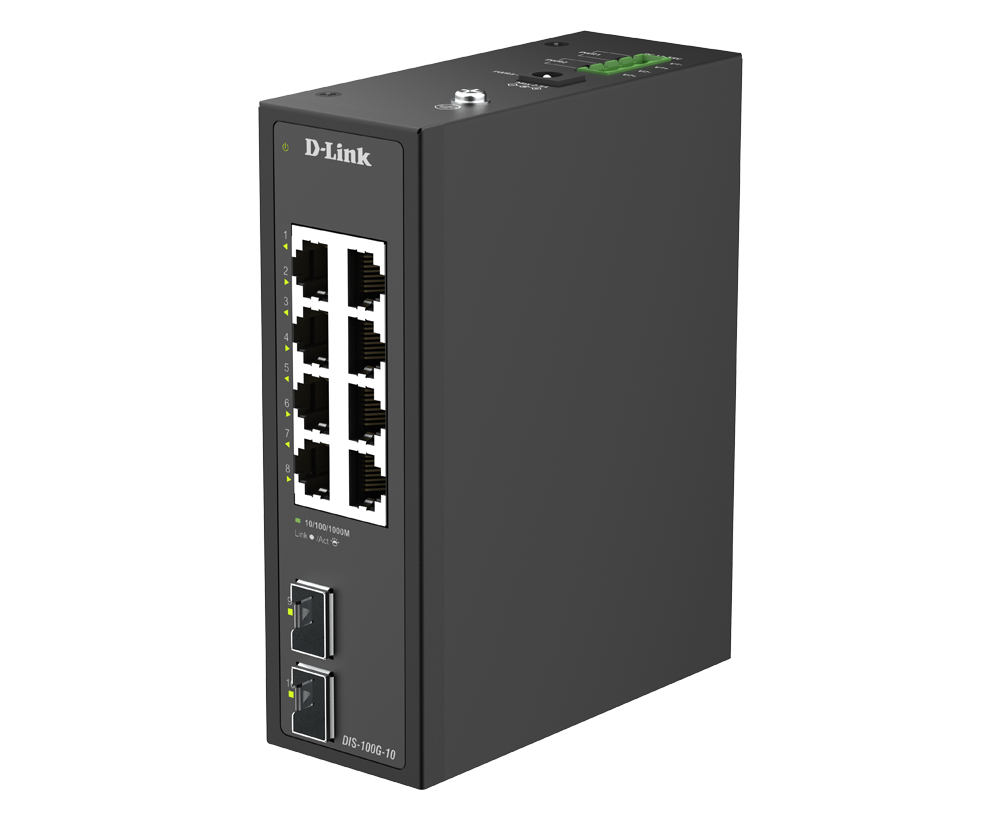

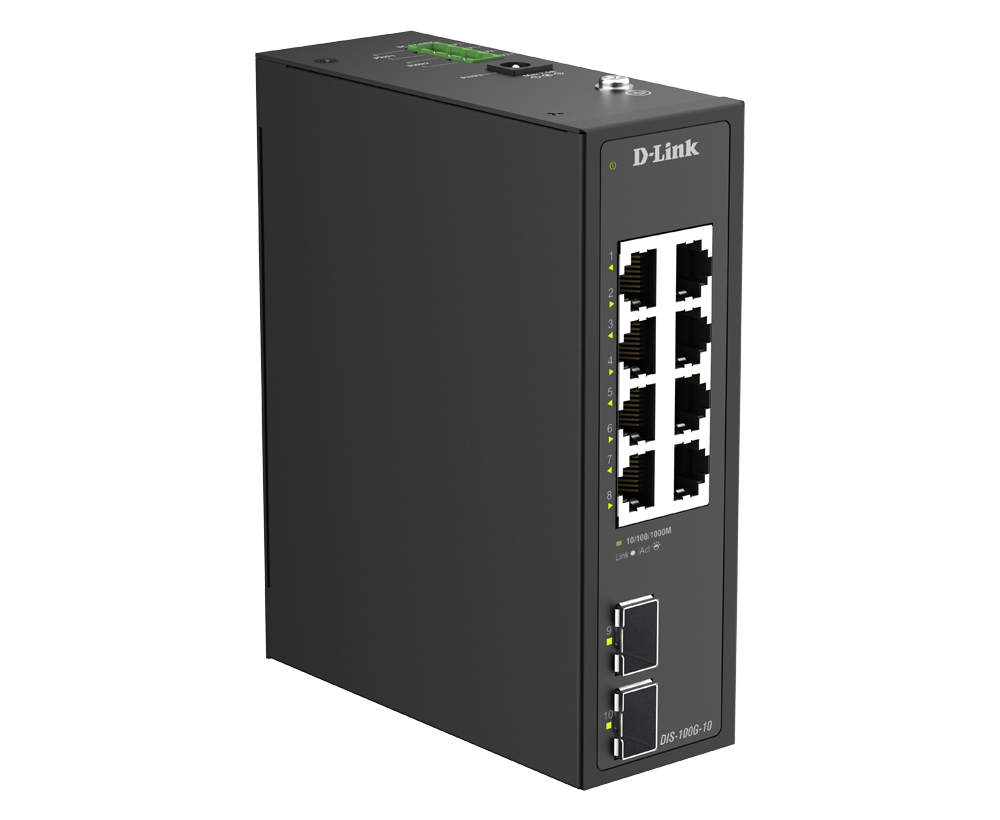

Industrial 10-Port Gigabit Unmanaged Ethernet Switch (8 Ports + 2 × 1 GbE SFP Uplinks)
DIS-100G-10
- Product Status (DIS 100G 10_A1_Datasheet_v1 00_WW): Live
- Built for Industrial Environments: Fan-less design, IP30-rated metal housing, and an operating temperature range from -40°F to 167°F (-40°C to 75°C) make the DIS-100G-10 well suited for industrial sites and outdoor cabinet deployments

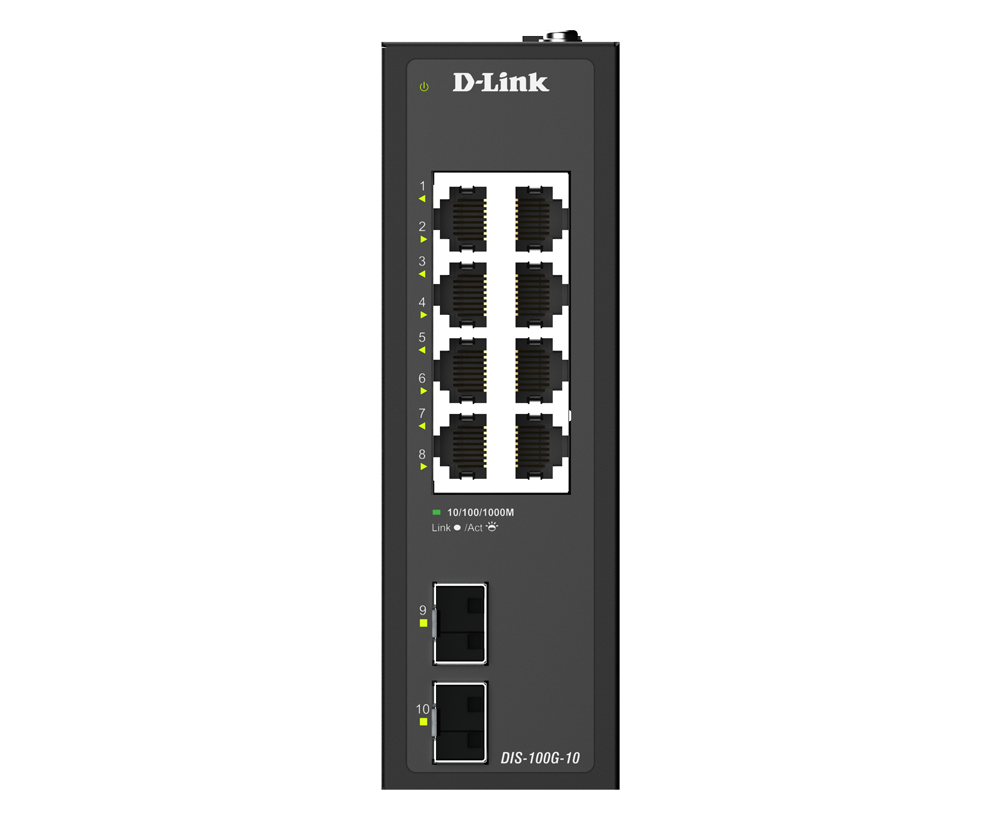

- Gigabit Connectivity for Edge Networks: 8 × Gigabit Ethernet ports support high-speed data transmission for surveillance systems, access points, and network-connected equipment
- Fiber Uplink for Network Expansion: 2 × 1GbE SFP ports support long-distance fiber connections for uplinks to aggregation switches or control room networks
- Dual Power Input for Redundant Power Design: Supports dual 9–36 VDC terminal block inputs inputs for redundant power connections to help maintain operation if one power source is interrupted
- Simplified Industrial Deployment: Compact 5.43 × 4.25 × 1.73 in (138 × 108 × 44 mm) plug-and-play design with DIN-rail mounting support helps simplify installation in industrial cabinets and control enclosures
- NDAA/TAA Sourcing Standards: Follows NDAA/TAA sourcing standards for public sector and enterprise projects
- Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty (North America) and over 40 years of networking experience
* Power adapter is not included. Actual performance may vary depending on settings, cabling, temperature, network configuration, interfaces, connected devices, compatibility, environmental conditions, on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only.
Where to buy
Fiber Uplink Connectivity
Supports long-distance fiber connections to aggregation switches or control room networks
Dual Power Input
Supports connection to two independent power sources to help reduce the risk of downtime
6kV Surge Protection
Built-in surge protection on copper ports helps reduce the risk of damage from electrical surges
Industrial-Grade Durability
IP30-rated metal housing supports deployment in industrial and outdoor environments. Certified to CE Class A, VCCI Class A, FCC Class A, IC, BSMI, and RCM EMI standards.
Fanless
Fan-less design supports deployment in enclosed or low-airflow industrial environments.
Green Ethernet
Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low network activity
Long-Distance Fiber Connectivity
Fiber connections also provide added resistance to electromagnetic interference, helping support more consistent data transmission in industrial and infrastructure environments.
Power Redundancy for Critical Operations
The DIS-100G-10 supports dual 9–36 VDC terminal block inputs, allowing connection to two independent, customer-supplied DC power sources, such as separate power supplies or primary and backup circuits. If one power source is interrupted, the second can continue powering the switch, helping reduce the risk of network downtime in industrial environments.
Built for Demanding Industrial Environments
The DIS-100G-10 features a rugged industrial design suited for deployment in outdoor enclosures, factory floors, and remote installations. Its IP30-rated metal housing supports durability in industrial cabinets and control panel environments. The switch operates across a wide temperature range of -40°F to 167°F (-40°C to 75°C), supporting deployment in both cold and high-heat conditions. A fan-less design supports use in enclosed or low-airflow environments, while built-in 6 kV surge protection on copper ports helps reduce the risk of damage from electrical surges.

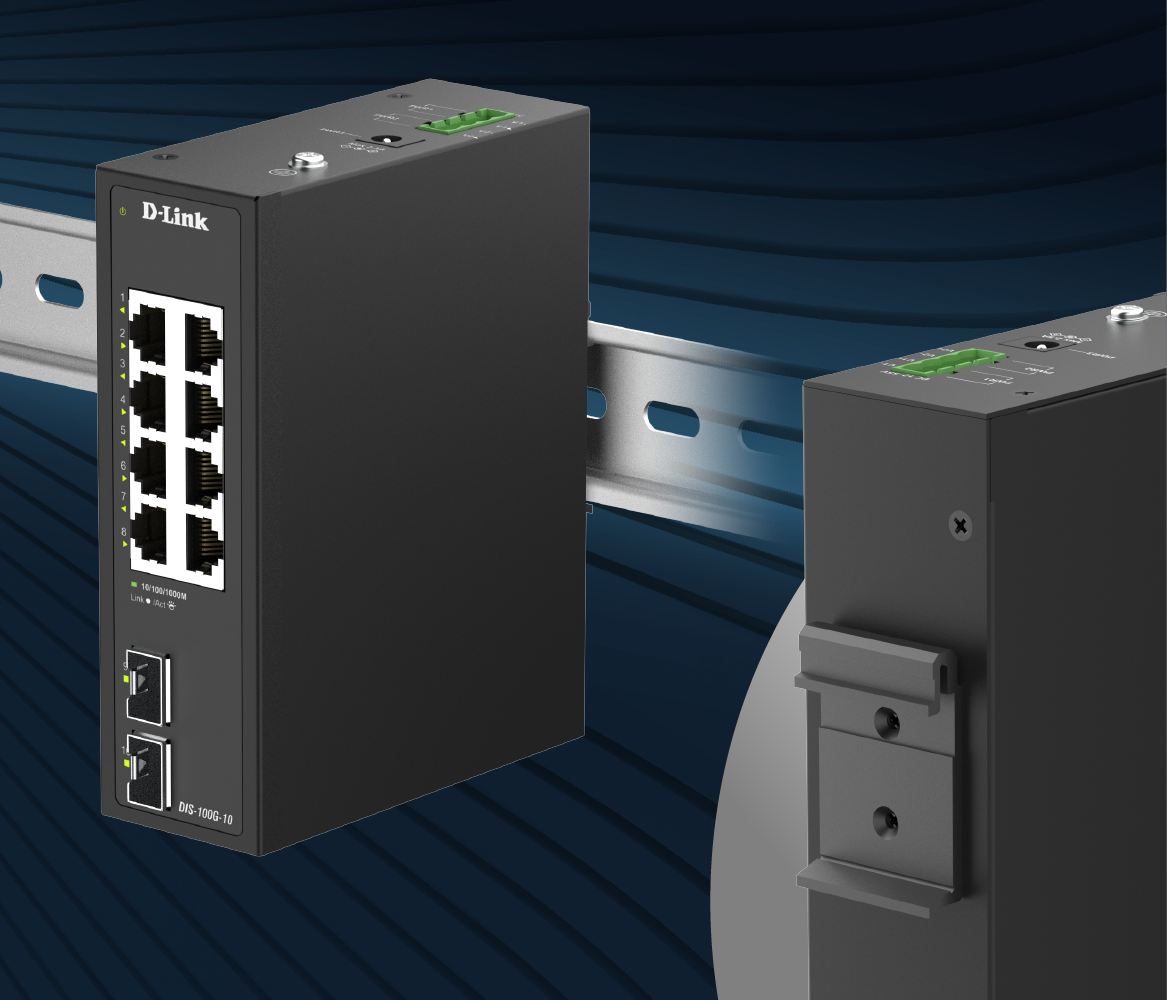

Efficient and Flexible Deployment
The DIS-100G-10 offers plug-and-play simplicity: just connect the cables and power it up, with no configuration required. Its compact 5.43 × 4.25 × 1.73 in (138 × 108 × 44 mm) design and DIN-rail mounting support space-saving, organized installation in industrial control cabinets and other equipment enclosures. This makes it well suited for fast, efficient deployment across a wide range of field applications.
Related Products

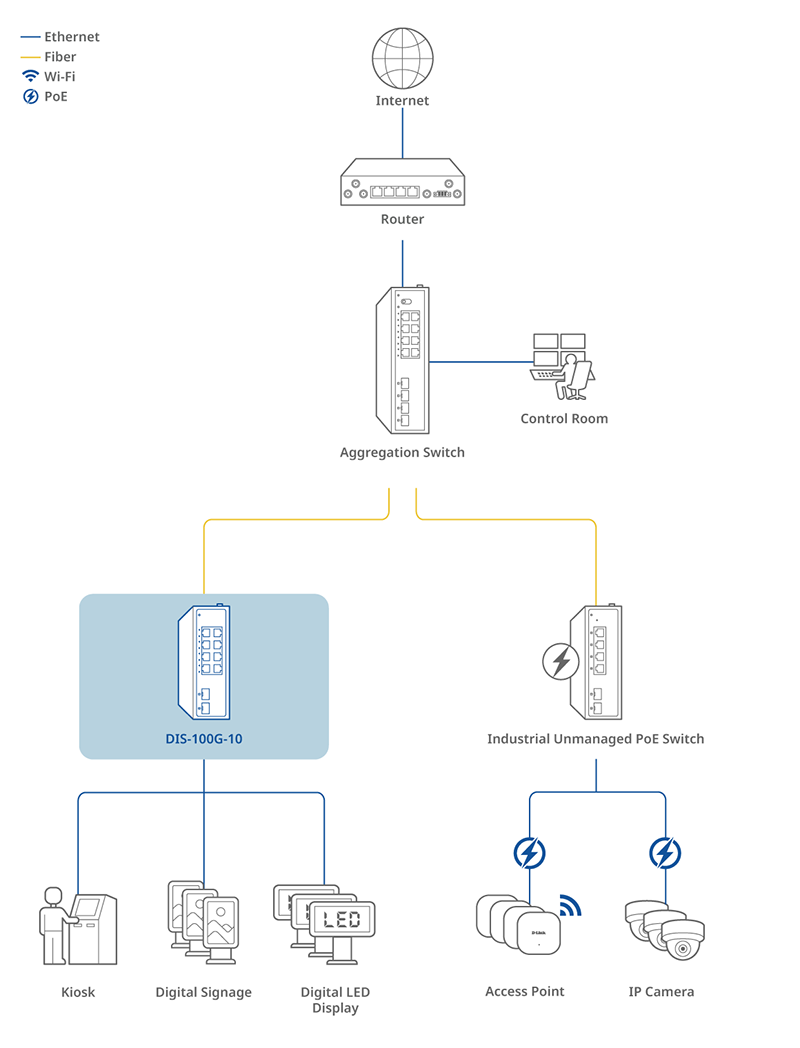

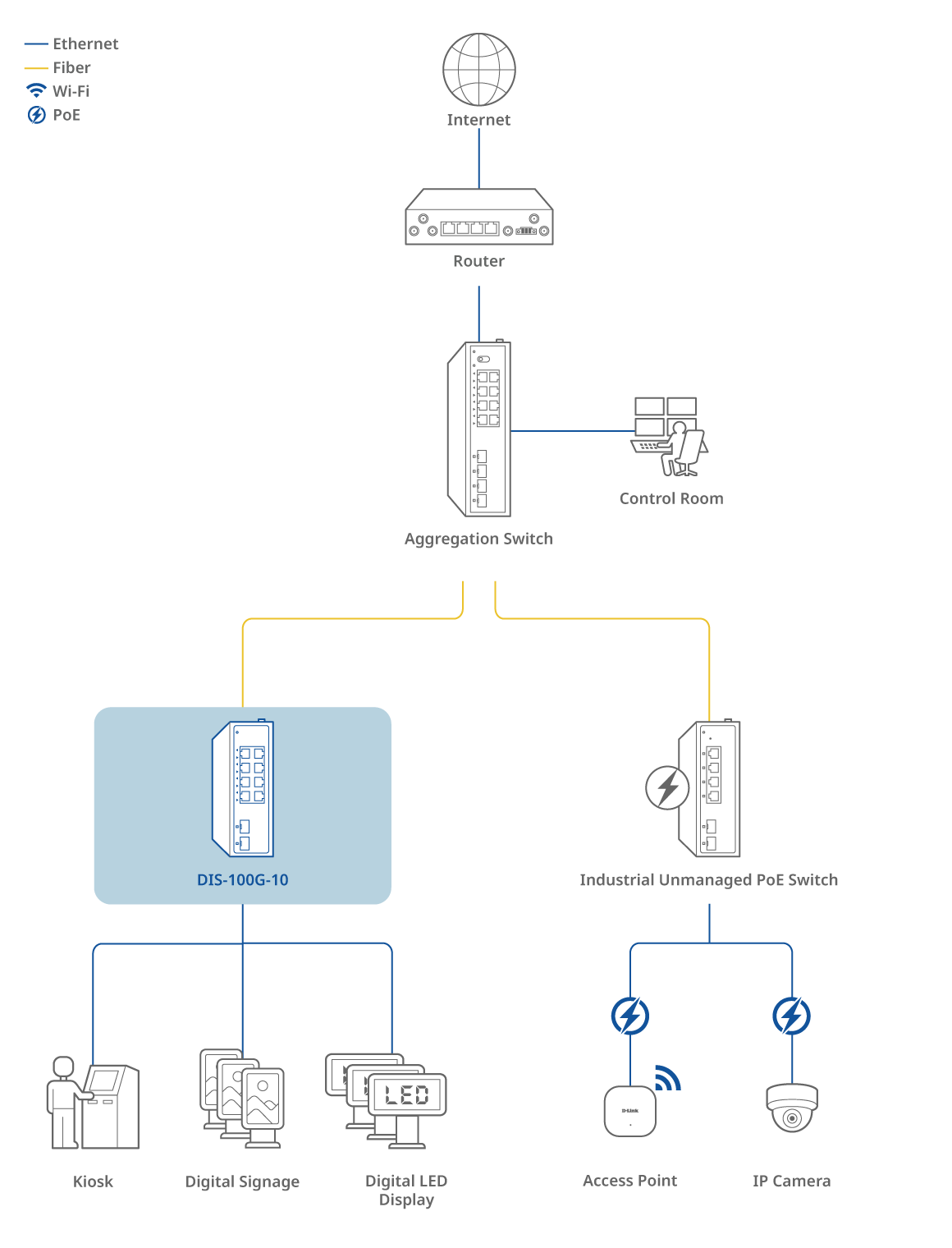

Connection Diagram
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Specification
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:12~55V Dual input |
