Industrial 10-Port Gigabit Unmanaged Ethernet Switch (8 PoE+ Ports + 2 × 1 GbE SFP Uplinks)
DIS-100G-10P
- Product Status (A1 v100 WW): Live
- Built for Industrial Environments: Fan-less design, IP30-rated metal housing, and operating temperature range from -40°F to 167°F (-40°C to 75°C) enable deployment in industrial and outdoor cabinet environments
- Long-Range PoE for Extended Deployments: Ports 1–4 support PoE transmission up to 250 meters at 10 Mbps. Helps extend camera and edge device installations beyond standard Ethernet distance
- Industrial Gigabit PoE+ Connectivity: 8 × Gigabit PoE+ ports support IEEE 802.3af/at with up to 30 W per port and up to 240 W total PoE budget for connected devices
- Fiber Uplink for Network Expansion: 2 × 1GbE SFP ports support long-distance fiber connections for uplinks to aggregation switches or control room networks
- Dual Power Input for Redundant Power Design: Supports dual 48–57 VDC terminal block inputs to help maintain operation if one power source is interrupted
- Simplified Industrial Deployment: Compact, plug-and-play design with DIN-rail mounting support allows installation in industrial cabinets and control enclosures
- NDAA/TAA Sourcing Standards: Follows NDAA/TAA sourcing standards for public sector and enterprise projects
- Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty (North America) and over 40 years of networking experience
* Power adapter is not included. Actual performance may vary depending on settings, cabling, temperature, network configuration, interfaces, connected devices, compatibility, environmental conditions, on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only.
Where to buy
Fiber Uplink Connectivity
Supports long-distance fiber connections to aggregation switches or control room networks
Power over Ethernet
Supports IEEE 802.3af/at PoE with up to 30 W per port and up 240 W total PoE power budget
6kV Surge Protection
Built-in surge protection on copper ports helps reduce the risk of damage from electrical surges
Industrial Grade Durability
IP30-rated metal housing supports deployment in industrial and outdoor environments. Certified to CE Class A, VCCI Class A, FCC Class A, IC, BSMI, and RCM EMI standards
Fanless
Fanless design supports deployment in enclosed or low-airflow industrial environments.
Green Ethernet
Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low network activity
High Power and Long-Range with PoE+
The DIS-100G-10P includes eight PoE ports supporting IEEE 802.3af/at, delivering both power and data over a single Ethernet cable. Ports 1–4 can be configured to Extend Mode, supporting transmission distances of up to 250 meters at 10 Mbps, suitable for deployments such as surveillance cameras and remote edge devices.
With a total PoE power budget of up to 240 W and up to 30 W per port, the switch supports powering connected devices including cameras, access points, and IoT equipment. This helps simplify installation and allows more flexible device placement without requiring additional local power sources.
Long-Distance Fiber Connectivity
The DIS-100G-10P includes two 1GbE SFP ports that support fiber uplinks for long-distance connections to aggregation switches or central network infrastructure. Fiber cabling can extend connectivity beyond the distance limits of copper Ethernet, making it suitable for connecting remote sites or separate buildings.
Fiber connections also provide improved resistance to electromagnetic interference, help supporting consistent data transmission in industrial and infrastructure environments.

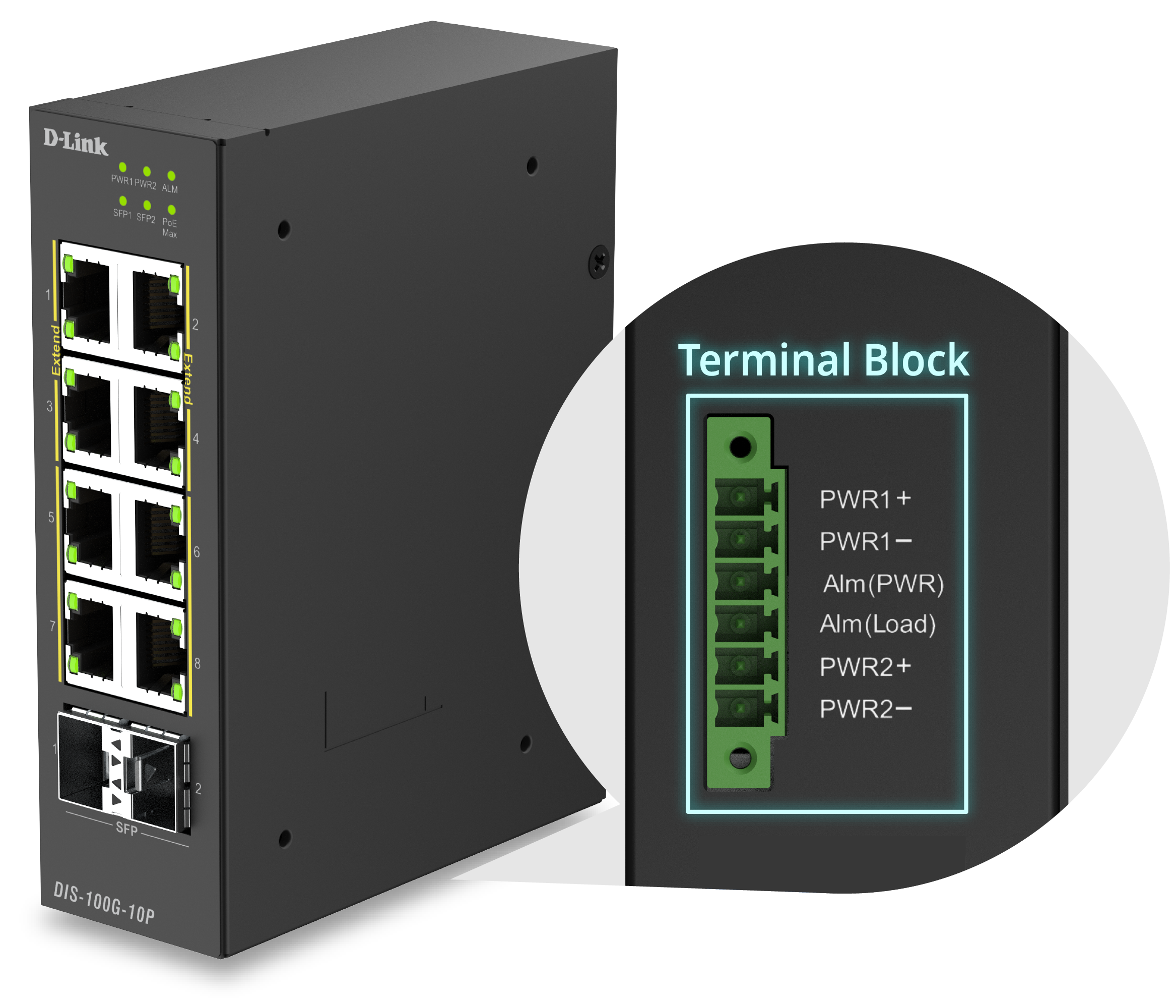

Power Redundancy for Critical Operations

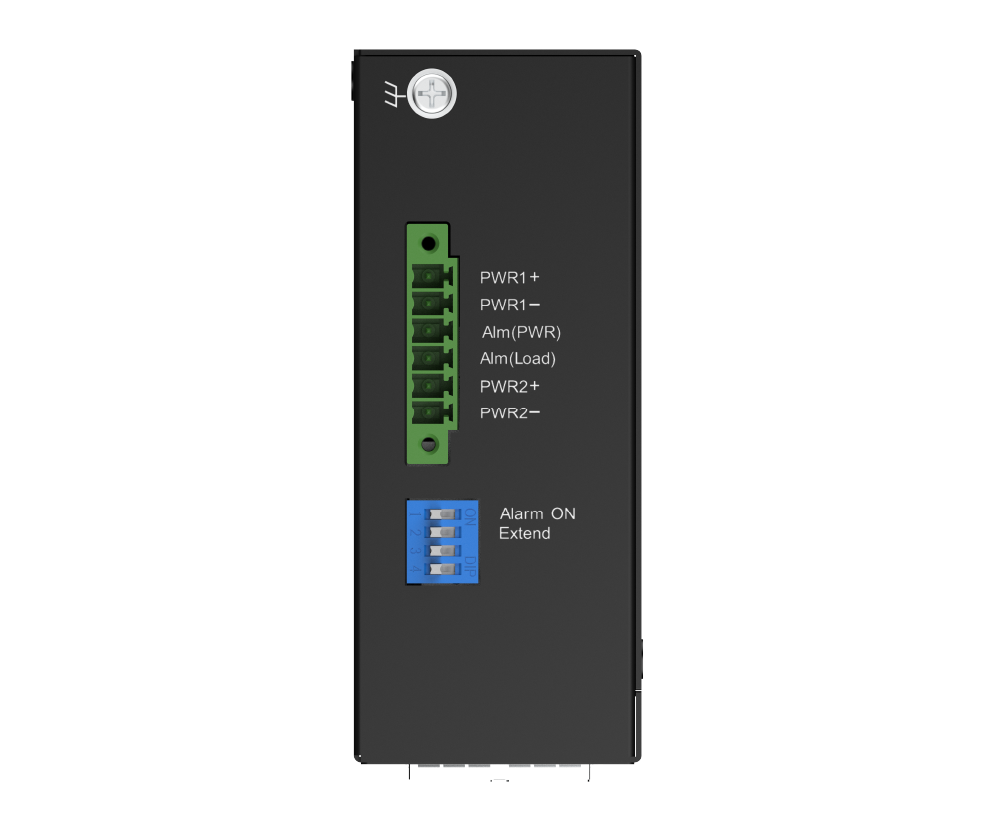

An integrated alarm output (ALM) provides a hardware-based signal for power or load conditions, allowing connection to external control or monitoring systems commonly used in industrial deployments.
Built for Demanding Industrial Environments
The DIS-100G-10P features a rugged industrial design suitable for deployment in outdoor enclosures, factory floors, and remote installations. Its IP30-rated metal housing supports durability in industrial cabinet and control panel environments.
The switch operates across a wide temperature range of -40°F to 167°F (-40°C to 75°C), supporting deployment in both cold and high-heat conditions. A fan-less design supports use in enclosed or low-airflow environments, while 6 kV surge protection on copper ports helps reduce the risk of damage from electrical surges.
Related Products

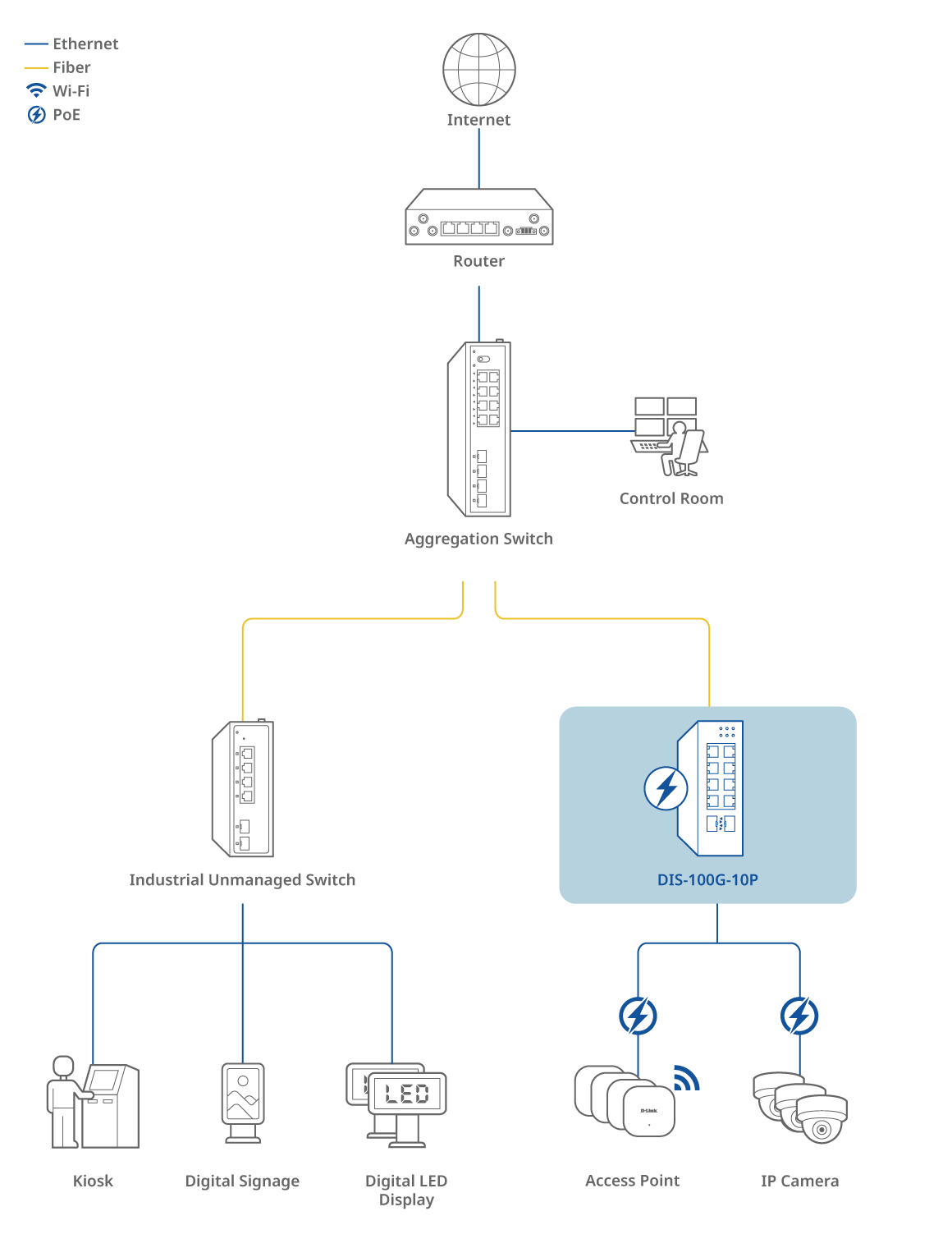

Connection Diagram
The DIS-100G-10P is an industrial unmanaged switch with eight 1 GbE PoE+ ports and two 1 GbE SFP uplink ports, supporting plug-and-play deployment at the edge. The SFP ports support long-distance fiber connections to aggregation switches or central network infrastructure, extending connectivity beyond the distance limits of copper Ethernet. With IEEE 802.3af/at PoE, up to 240 W total PoE budget, and support for PoE transmission up to 250 meters at 10 Mbps on ports 1–4, the DIS-100G-10P is designed for deployments such as surveillance cameras, wireless access points, and other powered edge devices
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Specification
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Number of PoE Ports
|
8 |
|
PoE Power Budget
|
240 W |
|
PoE Ports
|
802.3at Long Range PoE |
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~57V Dual input |
