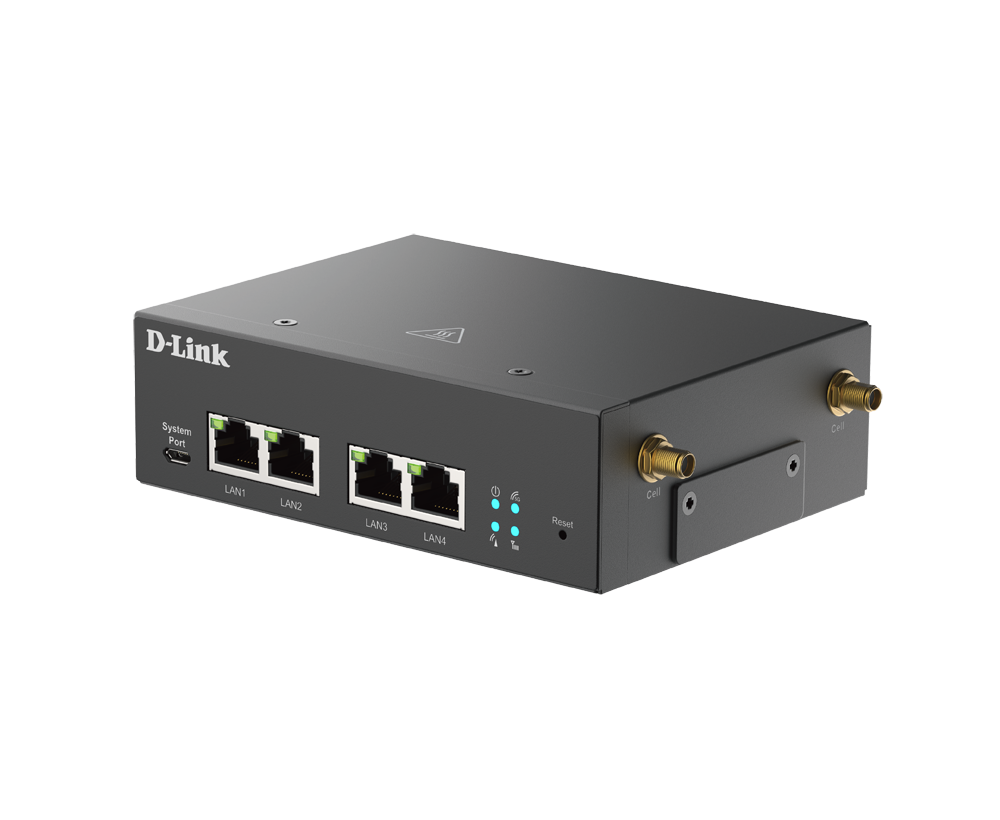

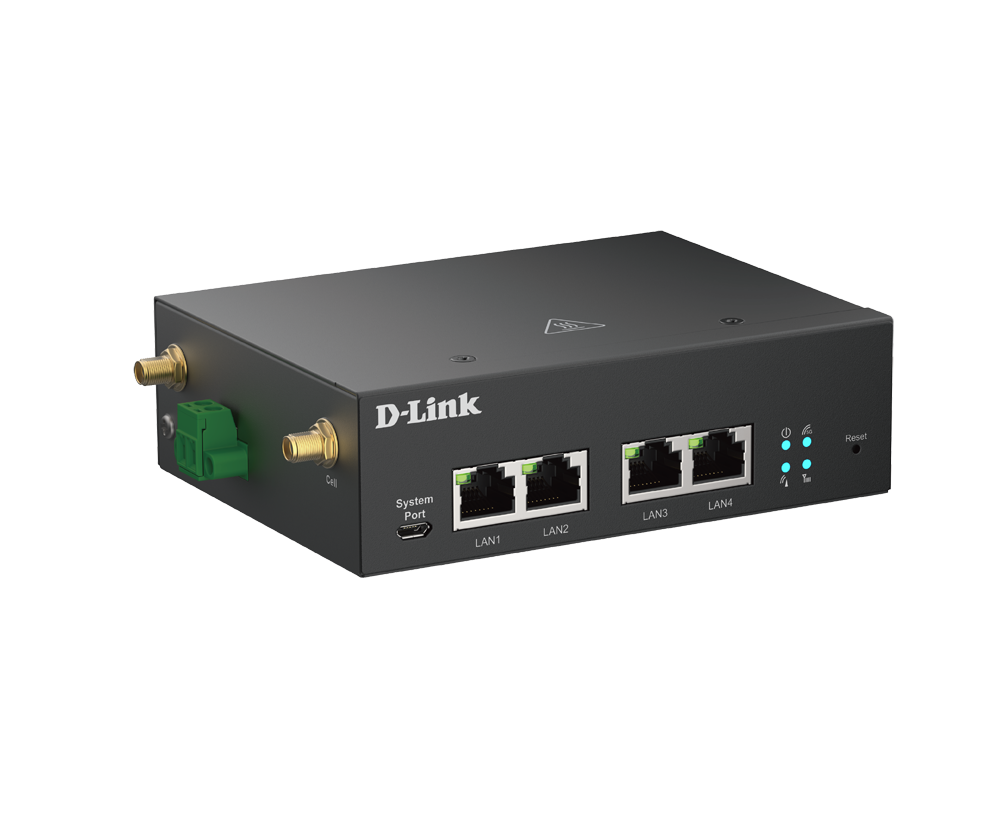

5G Rugged M2M Modem/Gateway
DWM-314-G
- Product Status (Revision A1_v1.11): Live
- 5G SA & NSA speeds of up to 3.4 Gbps1 for Internet access and data transfer
- 4 GbE LAN ports ensure reliable connectivity and reduce extra switch cost
- Plug & Play design for quick and easy integration
- Durable zinc-plated steel case

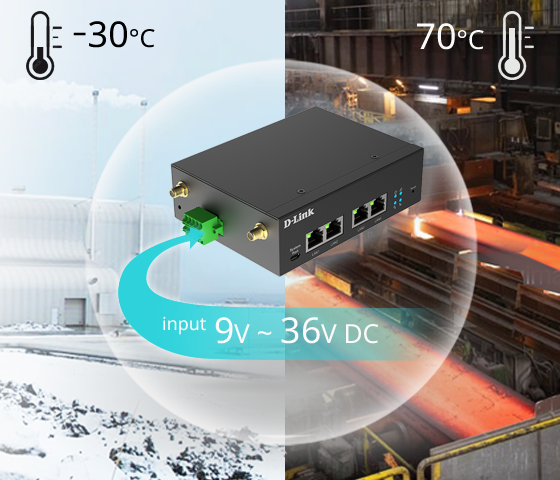

- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Shipping Globally | Coming Soon to North America
Where to buy
Multi-Port GbE Connectivity
Four GbE LAN ports to connect multiple devices for mission-critical M2M applications.
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Unleash 5G Power for Superior M2M Connectivity
The DWM-314-G 5G Rugged M2M Modem/Gateway is designed for applications that require high-performance connectivity and added network flexibility. With dual SIM slots and automatic failover, it offers carrier-level redundancy that helps maintain consistent uptime in dynamic environments. Supporting both 5G and 4G LTE networks, it’s well-suited for smart city infrastructure, kiosks, ATMs, and M2M deployments where future-ready connectivity and resilience matter. Its compact, rugged form factor, built-in 4-port Gigabit switch, and wide input voltage support make it easy to integrate into both new and existing installations. For added protection, built-in VPN capabilities enhance security for remote access and sensitive data transmission.

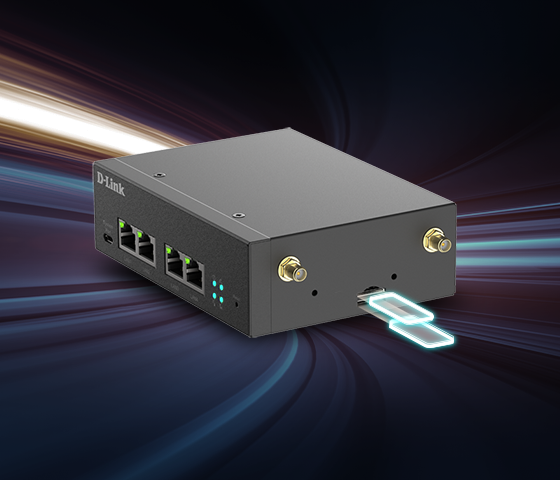

Plug & Play for Easy Installation
Designed for streamlined deployment, the DWM-314-G 5G modem supports real-time remote access and long-distance connectivity. With dual SIM slots, users can insert two Micro-SIM cards (3FF) to enable automatic failover and seamless switching between 4G and 5G networks—helping maintain consistent service when carrier conditions vary. Measuring just 4.8 x 3.7 x 1.3 inches (123 x 95 x 33 mm), its compact size and rugged housing allow for easy integration into space-constrained environments. Wall and DIN-rail mounting options offer added flexibility, and its plug-and-play functionality and wide input voltage range make it well-suited for industrial and smart infrastructure applications.
Robust Build Quality
Its corrosion-resistant, zinc-plated steel enclosure, along with a wide operating temperature range and humidity tolerance, makes the DWM-314-G suitable for demanding M2M applications in environments such as smart infrastructure, outdoor enclosures, industrial systems, and public access points.
Related Products

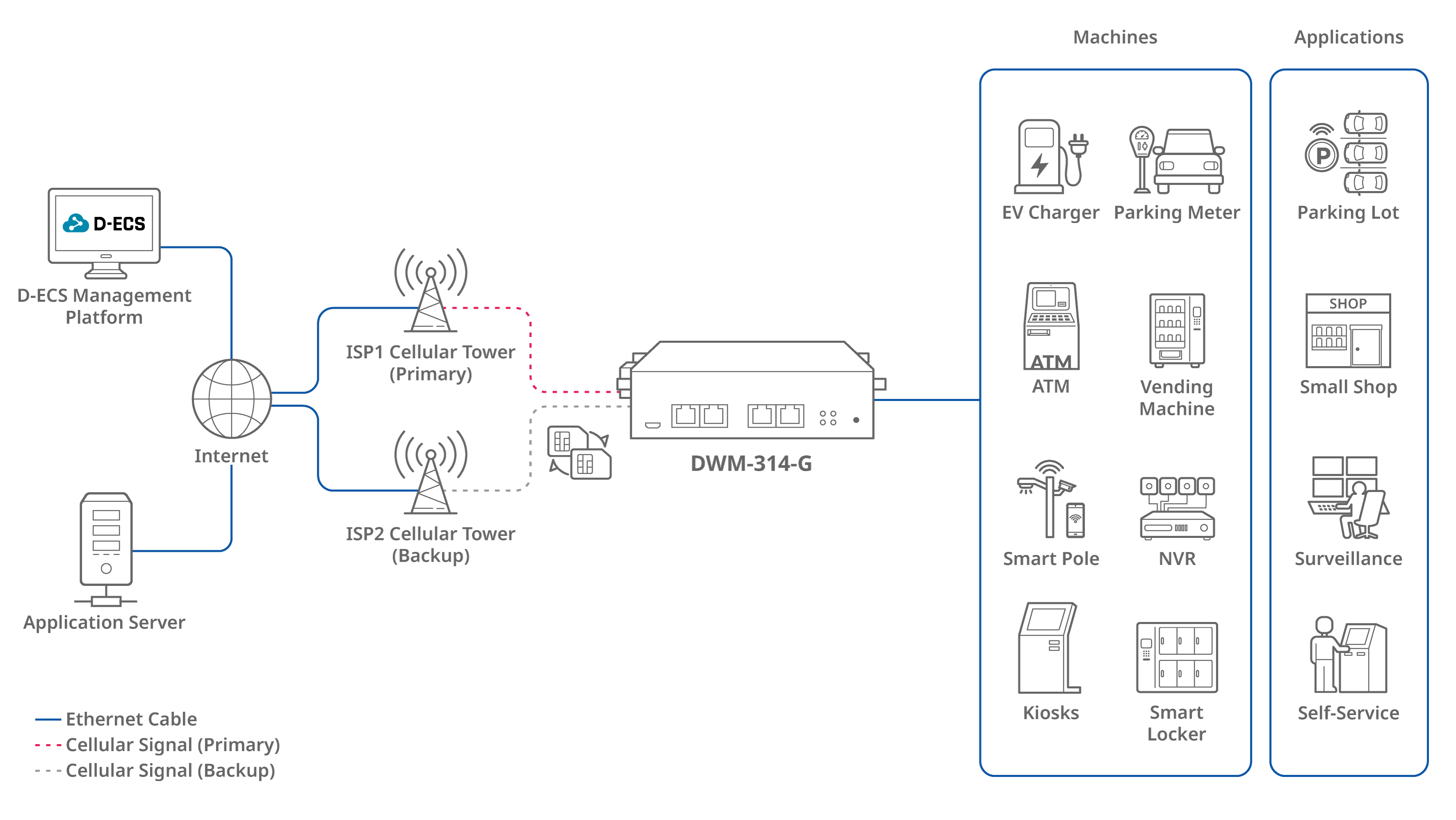

Seamless 5G Connectivity for Versatile Applications
The DWM-314-G 5G Rugged M2M Modem/Gateway supports easy integration through its 4G/5G cellular and Ethernet interfaces, enabling connectivity for Ethernet-enabled devices without requiring pre-configuration or specialized software. This plug-and-play functionality makes it suitable for a wide range of applications. It helps extend wired connectivity to devices such as EV chargers, parking meters, ATMs, vending machines, smart poles, NVRs, kiosks, and smart lockers—making it adaptable to deployment in locations like parking lots, retail environments, surveillance systems, and self-service stations. For tailored configurations, the built-in web interface is designed to be user-friendly and can be accessed through any standard web browser.
Versatile Applications
Kiosk
Remote access supports the operation of self-service kiosks by enabling more secure communication and helping maintain service availability.
ATM
Remote monitoring supports banking services by enabling more secure data transmission and maintaining visibility into transaction systems.
Smart Bus Stop
Remote access for real-time bus info and ad updates, enhancing commuter experience.
Gas Station
Remote monitor fuel dispensing and payment, enhancing optimized operations.
Specification
|
Cellular
|
5G NR SIM x 2 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
4 x LAN |
|
Ethernet Speed
|
10/100/1000 Mbps Ports |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
No PoE |
|
Power Input
|
DC 9V-36V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
VPN
|
OpenVPN WireGuard |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
