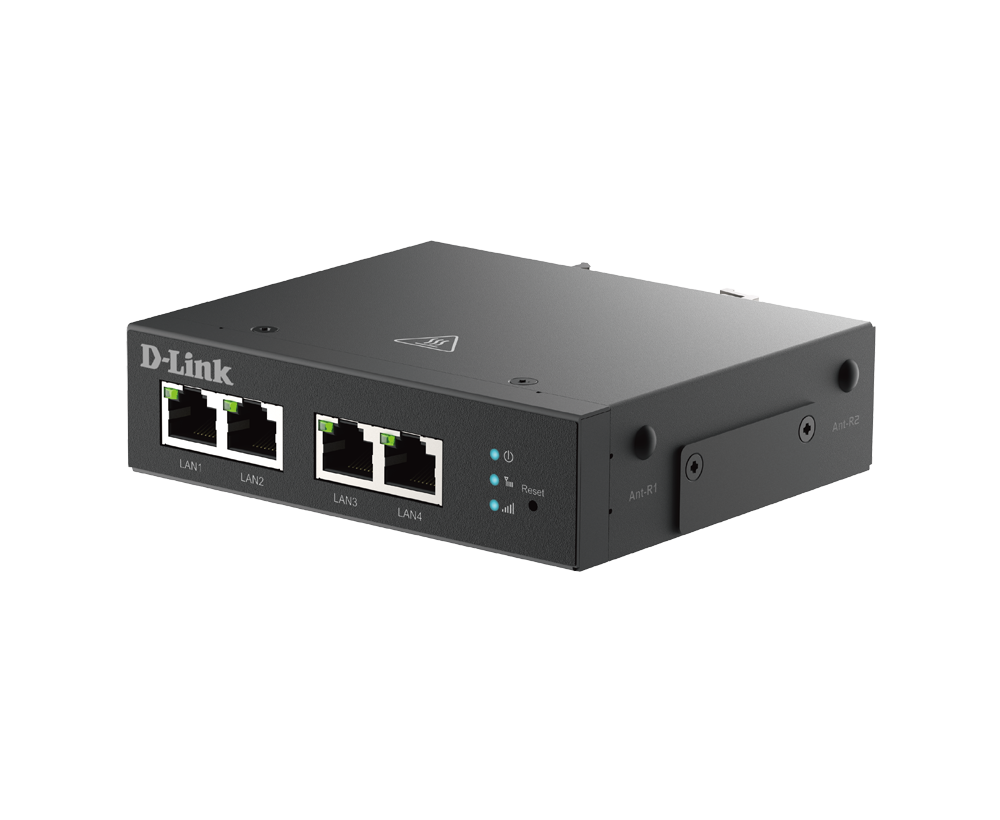

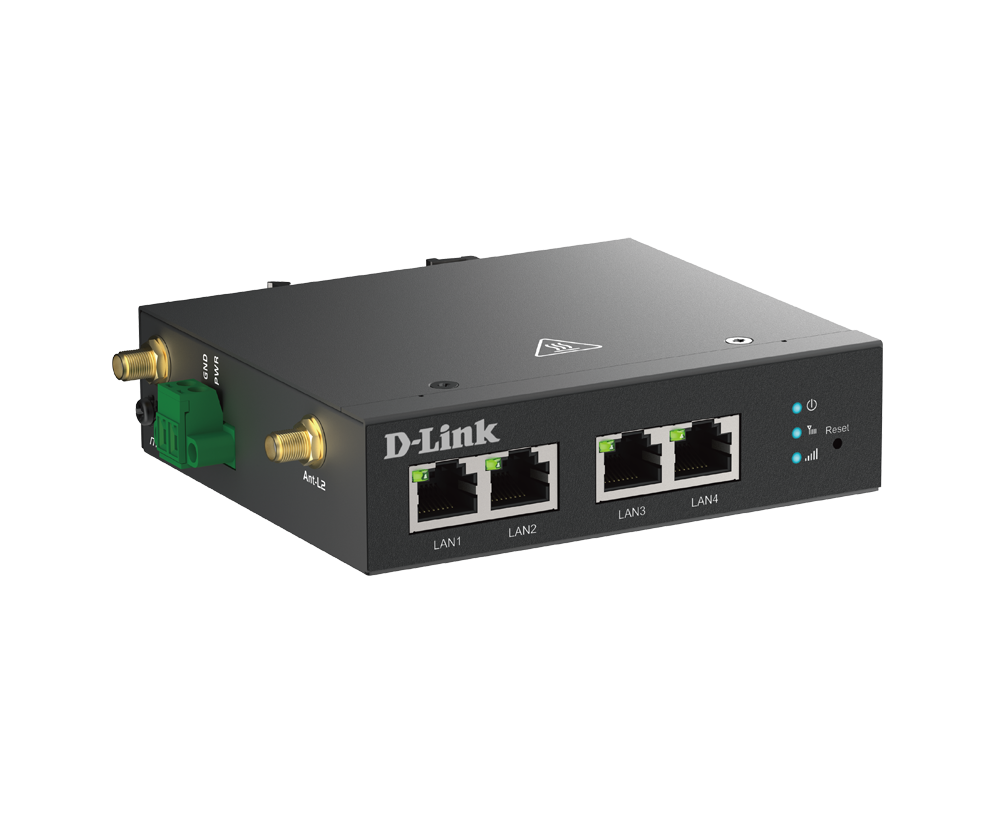

4G Multi-Connect Modem
DWM-314-T
- Product Status: Live
- 4G with one SIM slots for cellular WAN
- 4 Fast Ethernet LAN ports ensure reliable connectivity and reduce extra switch cost
- Plug & Play design for quick and easy integration
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Shipping Globally | Coming Soon to North America
Where to buy
Plug & Play
Simplifies setup, enhances security, and ensures reliable performance for critical applications.
Multi-Port FE Connectivity
Four Fast Ethernet LAN ports to connect multiple devices for general M2M applications.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Flexible 4G Connectivity for Smart Infrastructure
The DWM-314-T 4G Multi-Connect Modem delivers 4G LTE connectivity for real-time data transmission across a wide range of smart applications. Whether supporting EV charging stations, parking meters, kiosks, ATMs, or digital signage, its compact form factor makes it easy to install in tight spaces often found in transportation, retail, and public access environments. A built-in 4-port Gigabit switch reduces the need for additional hardware, helping streamline setup and minimize wiring. With support for VPN technology, the modem also offers enhanced security for transmitting sensitive data across connected systems.

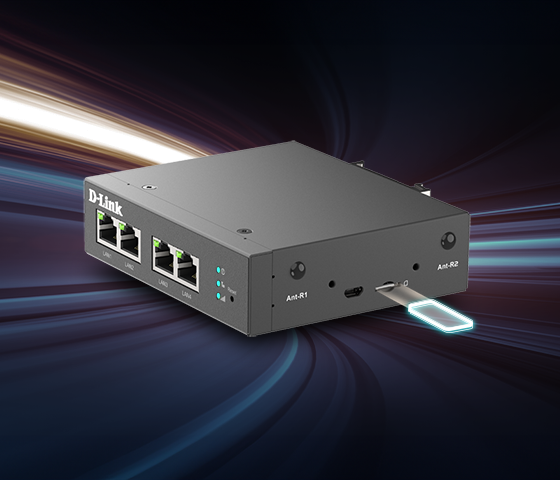

Plug & Play for Easy Installation
Simply insert a Nano-SIM card (4FF) and power up—the DWM-314-T is ready to connect M2M devices over 4G LTE with minimal setup. Built with a rugged, compact design, it fits easily into space-constrained or outdoor environments such as EV charging stations, kiosks, industrial enclosures, and transportation infrastructure. Wall and DIN-rail mounting options add deployment flexibility. While the modem supports a single SIM slot, it offers reliable connectivity for focused deployments. VPN support enhances remote access security, making it a practical choice for smart infrastructure and commercial applications.
Robust Build Quality
The industrial-grade casing is designed to support high-speed connectivity in challenging conditions. Its corrosion-resistant, zinc-plated steel enclosure, along with a wide operating temperature range and humidity tolerance, makes the DWM-314-T suitable for demanding M2M applications across a range of environments.
Related Products

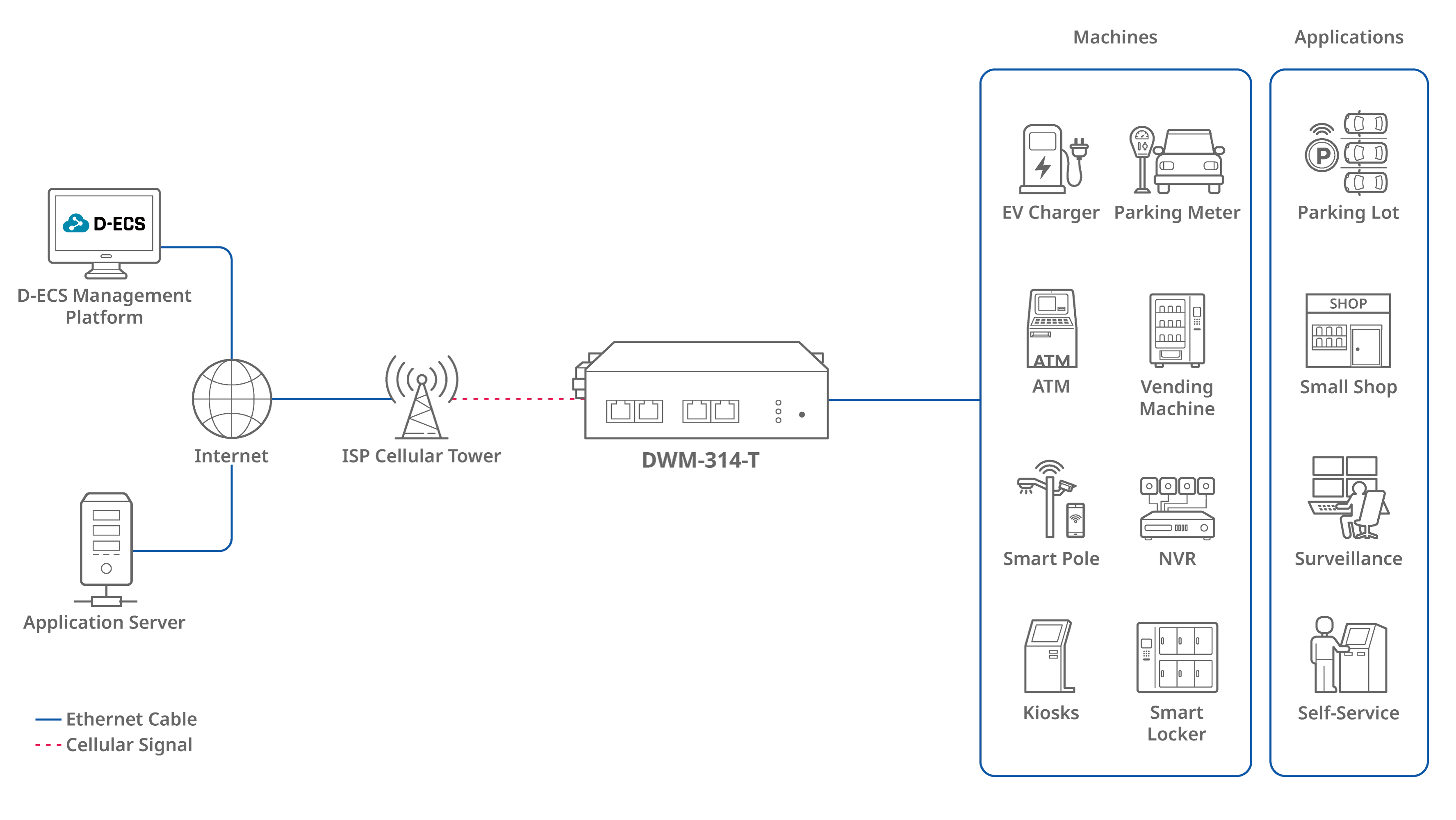

Empower Your M2M Applications with 4G LTE Connectivity
The DWM-314-T 4G Multi-Connect Modem offers quick integration with its 4G LTE and Ethernet interfaces, supporting plug-and-play functionality for a wide range of applications. It provides wired connectivity to devices such as EV chargers, parking meters, ATMs, vending machines, smart poles, NVRs, kiosks, and smart lockers. Designed for deployment across various settings—including parking areas, retail locations, surveillance systems, and self-service stations—it adapts to different use cases with ease. For tailored configurations, its web-based interface allows adjustments through any standard web browser.
Versatile Applications
Kiosk
Remote access for self-service kiosks operation, enhanced security and continuous service.
ATM
Remote monitoring supports banking services by enabling more secure data transmission and maintaining visibility into transaction systems.
Smart Bus Stop
Remote access for real-time bus info and ad updates, enhancing commuter experience.
Gas Station
Remote monitor fuel dispensing and payment, enhancing optimized operations.
Specification
|
Cellular
|
4G LTE SIM x 1 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
4 x LAN |
|
Ethernet Speed
|
10/100 Mbps Port |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
No PoE |
|
Power Input
|
DC 9V-36V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
