12-Port 2.5G Smart Managed Switch

DMS-1250-12

  • Statut produit (A1 v1.06): Live
  • 8 Ports 2.5GE for downlink
  • 2 x 10G SFP+ Ports and 2 x 10GE Ports for uplink
  • 6kV surge protection on all 2.5G ethernet ports
  • Support LACP 802.3ad Link Aggregation
  • Support Static Routing
  • Support Loopback Detection
  • Support Spanning Tree Protocol(STP/RSTP/MSTP)
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller

Télécharger la fiche technique.

Voir la liste de nos partenaires

Avantages

Souplesse de la connectivité

Prend en charge une large gamme d’interfaces physiques pour des connexions réseau étendues.

Contrôle d’accès

L’interface Web conviviale permet un contrôle réseau efficace et personnalisé

Sécurité renforcée

Prise en charge de fonctions polyvalentes pour accroître la sécurité du réseau

Solution économique

Offre des fonctionnalités avancées et une alimentation réseau à un prix abordable.

2.5G Speeds: Built for Wi-Fi 6 and Beyond

The DMS-1250 Series switches elevate your network with 2.5 Gbps ports, optimized for Wi-Fi 6 access points to maximize throughput and speed. Multi-Gigabit Ethernet eliminates bottlenecks, fully utilizing Wi-Fi 6’s high performance.

6 kV Surge Protection for All Ethernet Ports

The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.​

Support L2+ Features

The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:

  • ERPS
  • GVRP
  • ISM VLAN
  • VLAN Translation
  • Double VLAN (Q-in-Q)
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping
* Please note that support is only available in version R2 or later.

Nuclias Network Controller

The DMS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.

Produits apparentés

Smart Switch administrable 8 ports multigigabit
DMS-1250-10S
En savoir plus
18-Port 2.5G Smart Managed Switch
DMS-1250-18
En savoir plus
Commutateur intelligent standard 28 ports 2,5 G Layer 2
DMS-1250-28
En savoir plus

Applications

Startup Office (Enterprise)

Dormitory (Building)

Transnational University (Education)

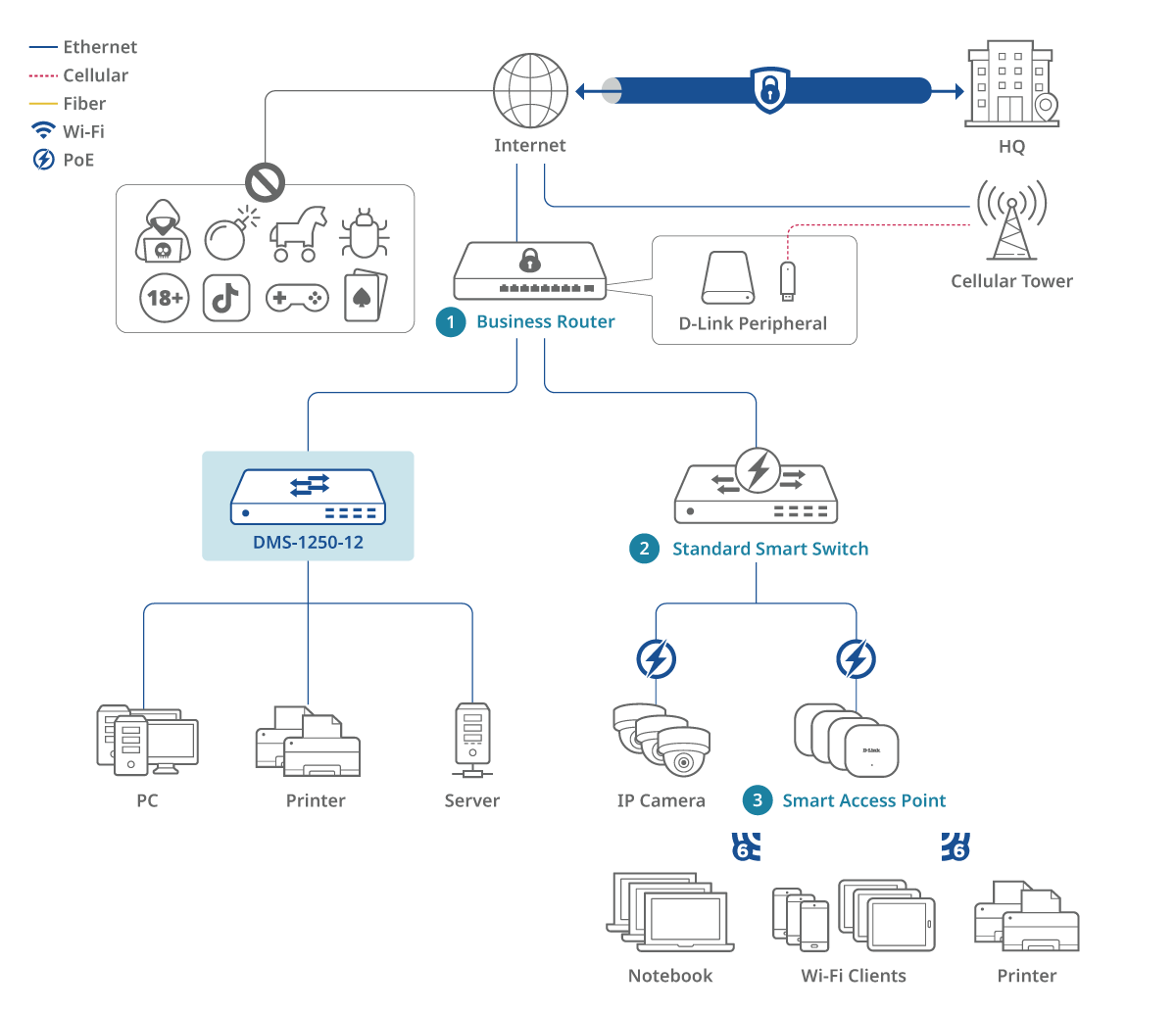

Startup Office (Enterprise)

User benefits :

  • Delivers high-speed connections for bandwidth-heavy tasks
  • Simplify network deployment and management
  • Enhances performance for Wi-Fi AP backhaul
  • Enables future-proof network upgrades
  • Compact and fanless design for quiet operation

Learn more :

  1. Business Router : DBR-700
  2. Standard Smart Switch : DMS-1250 Series
  3. Smart Access Point : DBR-X3000-AP

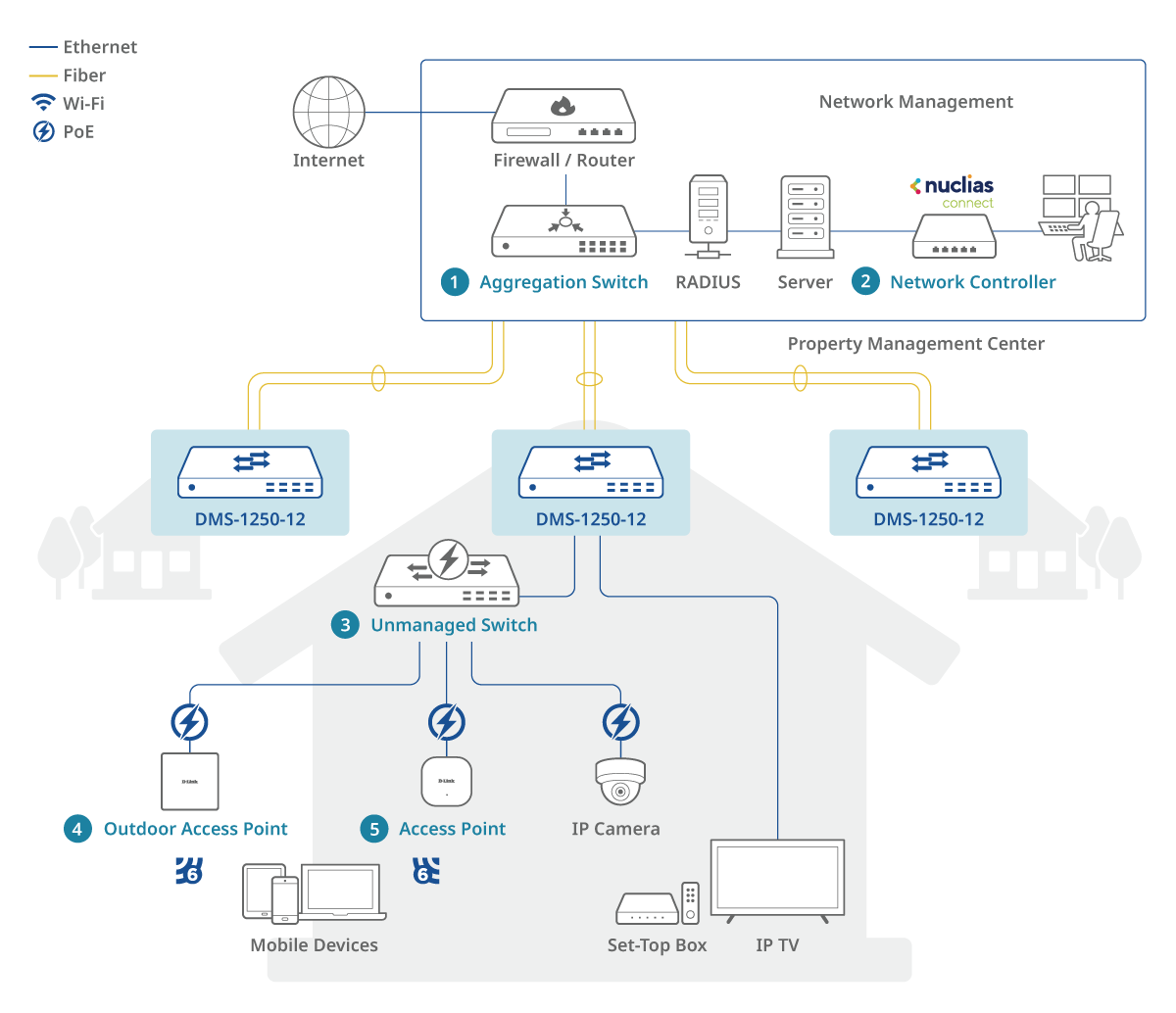

 Dormitory (Building)

User benefits :
  • Provide high-bandwidth connectivity for all residents
  • Smooth 4K streaming and online gaming
  • Handles high device density with ease
  • Prevents network disruption with loopback detection
  • Simplify network management with intuitive tools

Learn more :

  1. Aggregation Swtich : DXS-3130-32S ( Coming Soon )
  2. Network Controller : DNH-1000
  3. Unmanaged Switch : DMS-108P
  4. Outdoor Access Point : DAP-X3060OU

  5. Access Point : DAP-X3060

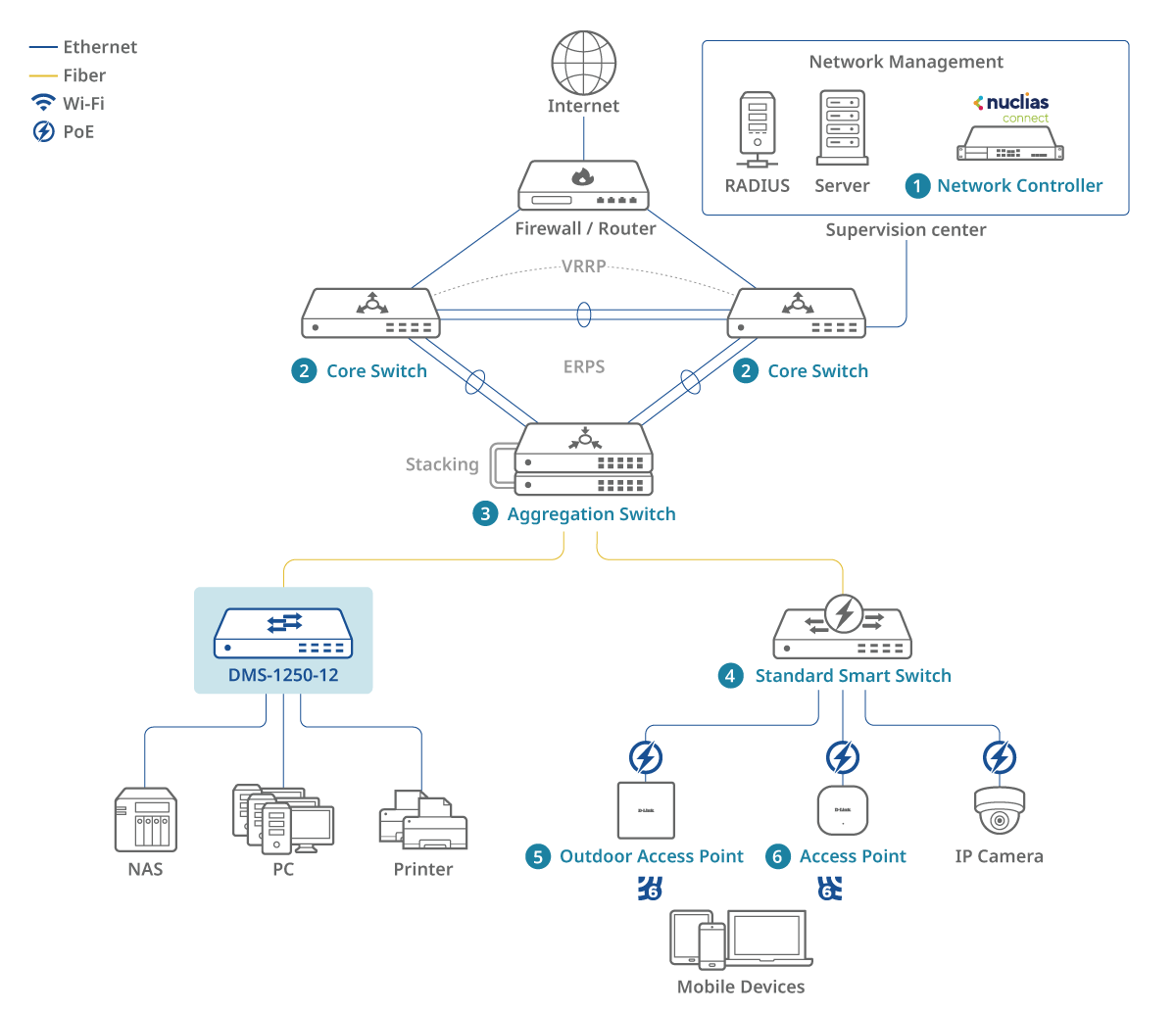

Transnational University (Education)

User benefits :

  • Deliver fast and reliable seamless connectivity
  • Secure network access with 802.1X authentication
  • Enhances network stability with STP and secure access via AAA
  • Simplify network expansion with 10G uplinks
  • Centralized management for efficient control

Learn more :

  1. Network Controller : DNH-3000
  2. Core Switch : DXS-3610-54S
  3. Aggregation Switch : DXS-3130-32S ( Coming Soon )
  4. Standard Smart Switch : DMS-1250 Series

  5. Outdoor Access Point : DAP-X3060OU

  6. Access Point : DAP-X3060

Interfaces
8 x 2.5GE
2 x 10GE
2 x 10G SFP+
Capacité de commutation
120Gbps
Taux max. de transfert de paquets
89.29 Mpps
Consommation électrique maximale
23.023W
Dimensions
440 x 210 x 44 mm
Poids
2.58 kg (5.68 lbs)
Protection contre les surtensions
IEEE61000-4-5 surge protection compliance
Protection contre les surtensions de 6 kV sur tous les ports Ethernet 2,5 Gigabits
Ventilateur
2 ventilateurs internes
Température de fonctionnement
-5 à 50°C
Température de stockage
-20˚C à 70˚C
Humidité de fonctionnement
0% to 95% relative humidity
Humidité de stockage
0% à 95% sans condensation
Console Port
Supported
Type d’alimentation électrique
Interne

Les performances peuvent varier selon les paramètres utilisés, le câblage, la température ambiante, la configuration réseau, les interfaces, la compatibilité des appareils et les conditions environnementales ou spécifiques au site. Les données relatives à la puissance, à la vitesse de traitement ou de signal, à la portée, au chiffrement, à la capacité de stockage, à l’affichage ou à tout autre indicateur de performance sont fournies à titre indicatif, sur la base de conditions optimales définies par les standards du secteur. Les caractéristiques techniques sont susceptibles d’être modifiées sans préavis.

Version Date Type Taille de fichier
DMS-1250 Series Datasheet - PDF 0.47mb Télécharger
